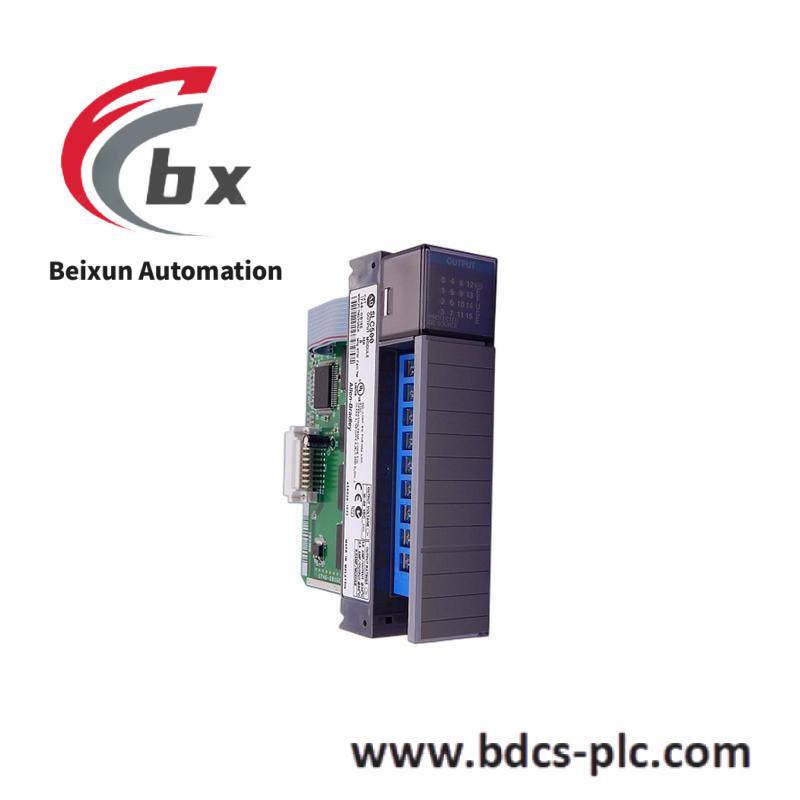

Allen-Bradley 1746-OB16E Digital Output Module
The AB 1746-OB16E is a high-performance digital output module designed for industrial automation systems. It offers reliable and efficient control solutions for various applications, including manufacturing processes, robotics, and more.
Manufacturer:Allen Bradley
Model Number:1746-OB16E
Module Type:Digital Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Backplane Current Rating:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation Voltage:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor Compatibility:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The A-B 1746-OB16E is a highly reliable and robust Digital DC Output Module designed by Allen Bradley for industrial control applications. This module supports up to 16 channels, offering precise control over outputs which are essential for automating processes in manufacturing facilities.
With its ability to handle input voltages ranging from 10 to 50 VDC, this module ensures compatibility with a wide range of devices and systems. Its low on-state voltage drop and minimal off-state leakage contribute to energy efficiency and extended operational life.
Featuring an open type enclosure, the module is mounted on a chassis for easy integration into existing setups. Its operating temperature range of 0 to 60°C makes it suitable for use in a variety of environments, ensuring stable performance under different conditions.
Moreover, the module is built to withstand environmental conditions such as humidity levels between 5% and 95%, providing a dependable solution for harsh industrial settings.
