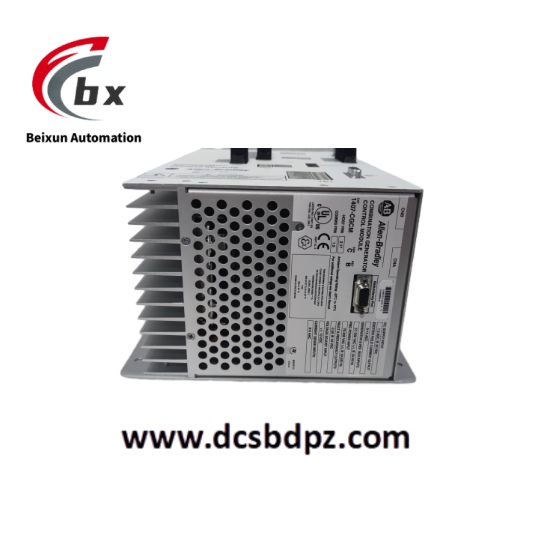

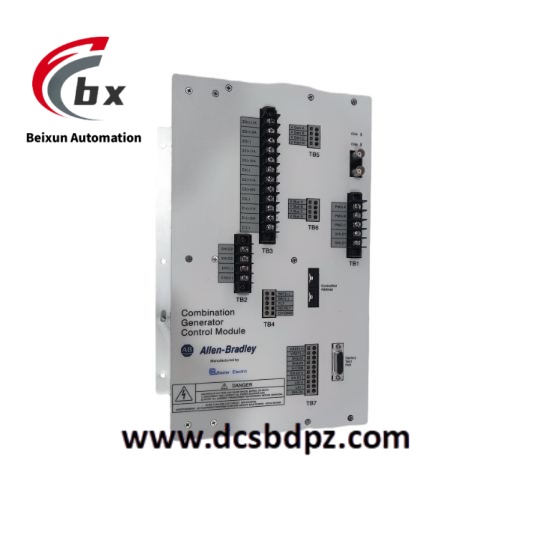

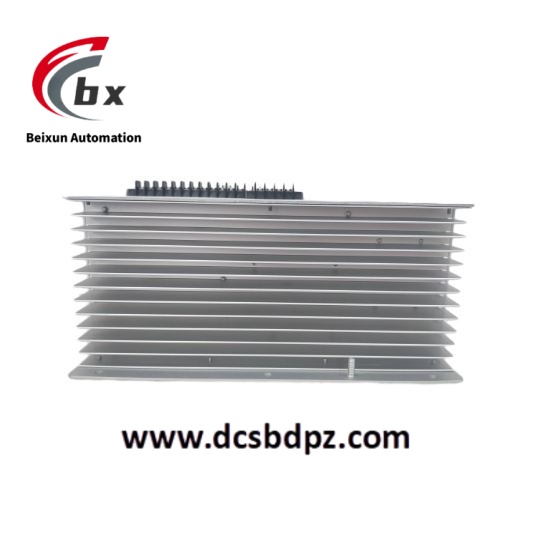

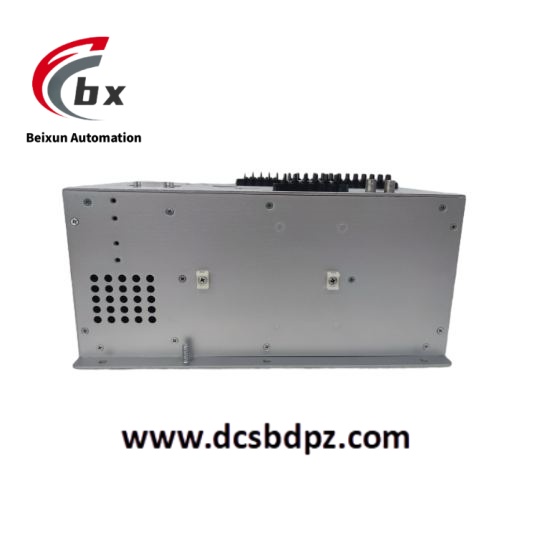

Allen-Bradley 1407-CGCM Combination generator control module

Power parameters: The rated voltage is 18-32 VDC, and the acceptable input voltage range is wide, which can adapt to different power supply environments; The frequency rating is between 20-90 Hz.
Input type: Supports multiple input types such as dry contact, open collector, current sink, and current pull, with 16 input channels and an input voltage range of 10-30 VDC.
Output parameters: For example, the rated value of the pulse width modulation output power level is 15 A, with discrete redundant relay output and discrete fault output driver.
Communication parameters: Supports multiple communication protocols such as Ethernet/IP, ControlNet, DeviceNet, Modbus, etc., allowing for easy data exchange and remote control with other devices.
Physical parameters: The size is approximately 140 x 174 x 280 mm, and the weight is 1.12 kg.
Environmental parameters: The working temperature range is -10 ° C to+50 ° C, and the storage temperature range is -20 ° C to+60 ° C. It has an IP20 protection level and can work stably in a certain dust and foreign object environment.

Product Performance
Powerful control functions: It can achieve various generator regulation and control functions such as automatic voltage regulation (AVR), manual or field current regulation (FCR), power factor (PF) control, reactive power (VAR) control, etc. It can also establish soft start voltage, limit over excitation and under excitation, low-frequency compensation, line voltage drop compensation, etc.
Accurate protection function: It has comprehensive generator protection functions, including demagnetization protection, overexcitation voltage protection, generator overvoltage/undervoltage protection, out of step protection, reverse power protection, overcurrent protection, etc., which can effectively protect the generator from various faults.
High precision metering function: capable of accurately measuring and monitoring parameters such as voltage, current, frequency, active power, reactive power, apparent power, power factor, and electrical energy of the generator, providing accurate data support for the operation, management, and maintenance of the generator.
Good communication capability: Supports multiple communication protocols, can quickly and stably exchange data and remotely control with other devices such as PLC, human-machine interface (HMI), sensors, actuators, etc., achieving system integration and networked management.
High reliability and stability: using industrial grade components and designs, and undergoing strict quality certification and testing, such as C/US UL certification, KC certification, CE certification, etc., it can operate stably in harsh industrial environments for a long time.
Flexible scalability: It can be used in conjunction with various expansion modules and options, such as redundant power modules, safety modules, motion control modules, etc., to meet the functional requirements and performance improvement in different application scenarios.
