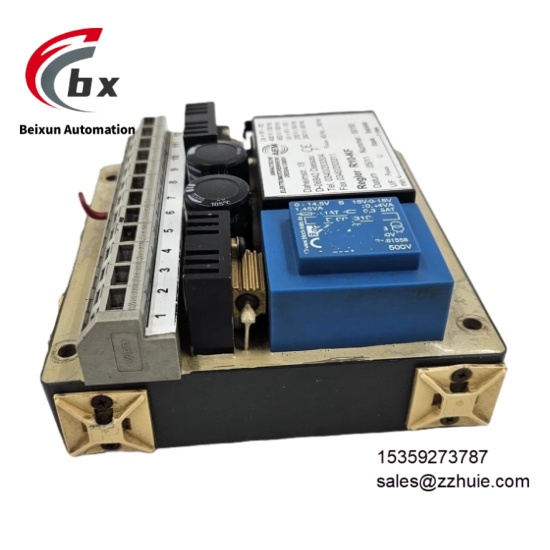

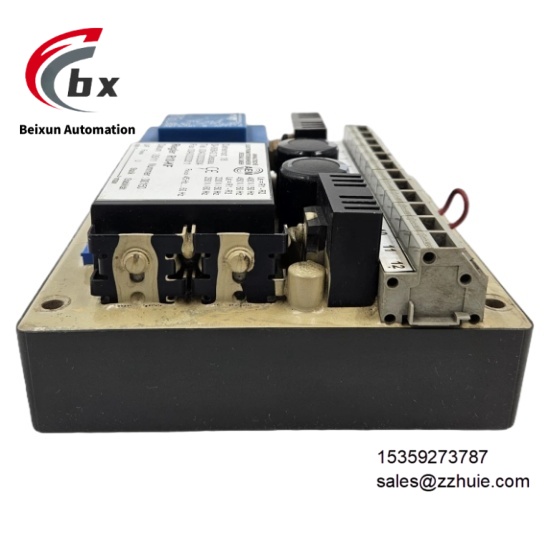

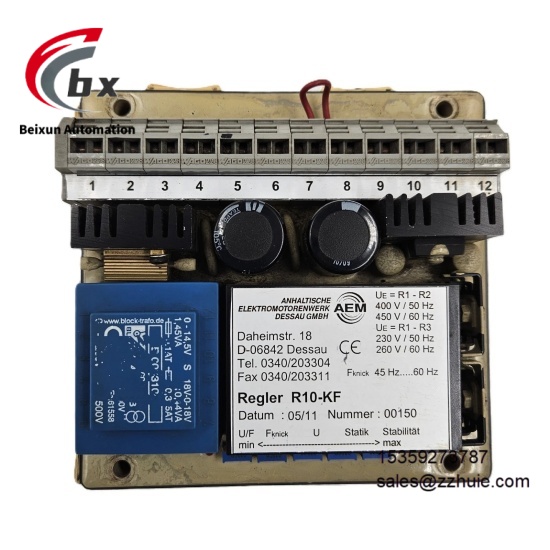

AEM REGLER R10-KF Automatic voltage regulator

AEM REGLER R10-KF Automatic voltage regulator

Specific Parameters

Brand AEM REGLER (Original Authentic, German Brand, Anhaltische Elektromotorenwerk Dessau GmbH), Product Series AEM REGLER R10 Series

Product Type Automatic Voltage Regulator (AVR), Voltage Control Module, Industrial Control Unit, Original Authentic Spare Part

Model AEM REGLER R10-KF

Country of Origin Germany

Compatible Devices Synchronous Generators, Parallel Operation Generator Sets, Industrial Generators, Marine Generators, Standby Generator Sets

Core Functions Automatic Voltage Regulation, Static Stability Control, Parallel Operation Regulation, Reactive Power Distribution, Overvoltage Protection, Voltage Monitoring, Smooth Voltage Stabilization, Varistor Protection

Product Structure Compact industrial-grade enclosure, built-in step-up transformer, integrated smoothing capacitor and varistor, clear terminal identification, mechanical anti-misinsertion design, color is industrial gray, sealed structure

Regulation Type Electromagnetic automatic voltage regulation, supporting staticization control of parallel operation

Input Voltage R1-R2: 400V/50Hz, 450V/60Hz; R1-R3: 230V/50Hz, 260V/60Hz

Output Voltage 0-14.5V, 18V-0-18V

Output Power 1.45VA (0-14.5V), 10.44VA (18V-0-18V)

Operating Frequency 50-60Hz

Voltage Regulation Range 0-250V to 500V

High Voltage Test 5000V (HV-Test)

Ambient Temperature Class TA 40℃, Class B

Dimensions 180mm×120mm×80mm (Length×Width×Height)

Weight Approximately 1.5kg

System Compatibility Can be seamlessly adapted to various synchronous generators, supporting parallel operation of multiple generators, and compatible with generator sets of different power levels

Safety Certifications VDE 0570 Certification, EN 61558 Certification, Industrial-Grade High-Voltage Test Certification

Maximum Power Consumption 12VA

Operating Temperature Range -10°C to +50°C

Storage Temperature Range -40°C to +85°C

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation)

Vibration Resistance Frequency 10-500Hz, Acceleration 10g (Sine Wave), Complies with IEC 60068-2-6 Standard

Shock Resistance Peak Acceleration 30g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard

Mounting Method Cabinet embedded installation, supports mounting plate pre-installation, adapts to standard mounting holes, easy installation, removable for maintenance online

Component Standard Adopts industrial-grade high-reliability components, built-in step-up transformer, smoothing capacitor and varistor, complying with the reliability standards of industrial control equipment

Product Performance

Adaptability Performance: Fully compatible with various synchronous generators, supports parallel operation of multiple generators, adapts to 50-60Hz dual-frequency scenarios, compatible with 400V, 450V, 230V, 260V multiple input voltages, no additional adapter accessories required, plug-and-play, high integration efficiency.

Control Performance: Adopting electromagnetic automatic voltage regulation design, with precise voltage regulation, which can realize wide-range voltage regulation from 0-250V to 500V, built-in smoothing capacitor for stable voltage stabilization effect, can effectively distribute reactive power of parallel operation generators, avoiding uneven current distribution.

Safety Performance: Certified by VDE 0570, EN 61558 and other authoritative standards, passed 5000V high-voltage test, with complete overvoltage protection function, built-in varistor, which can effectively prevent equipment damage caused by excessive voltage, and the sealed structure improves dust and moisture resistance, ensuring the safety of equipment and personnel.

Communication and Operation Performance: Clear terminal identification, easy installation, removable for maintenance online, no complex debugging process required, compact structure with small space occupation, suitable for cabinet installation, simple daily operation and maintenance, greatly reducing maintenance costs and downtime.

Environmental and Durability Performance: Manufactured with industrial-grade high-protection materials, it can operate continuously and stably for a long time in a temperature range of -10°C to +50°C and high humidity environments, has excellent vibration and shock resistance, stable components, long service life, and adapts to harsh industrial operating environments.
