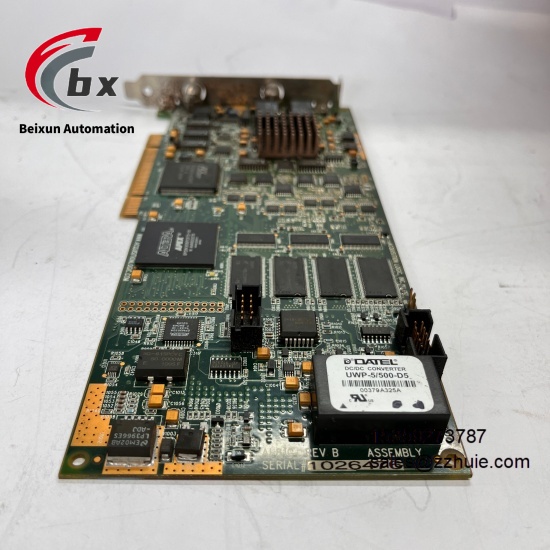

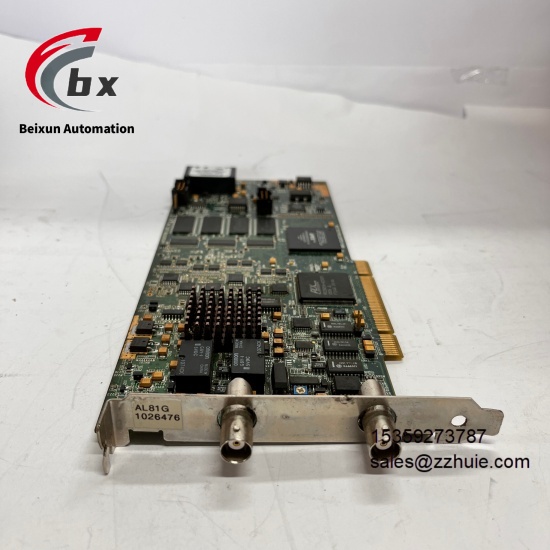

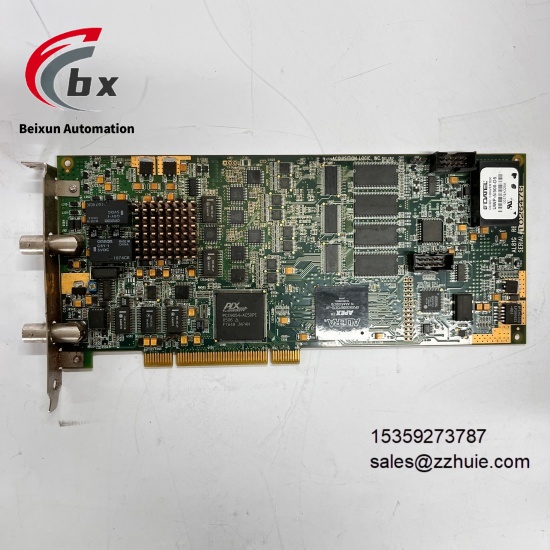

Acquisition Logic AL81G High speed data acquisition module

Acquisition Logic AL81G High speed data acquisition module

Specific Parameters​

Core and Function Parameters​

Product Type Industrial-grade High-speed Data Acquisition Module​

Manufacturer Acquisition Logic​

Model AL81G​

Series AL80 Series​

Acquisition Type Analog-to-Digital Signal Conversion​

Number of Channels Single Channel​

Resolution 8-bit​

Sampling Rate Up to 1GHz​

On-board Memory 64MSample​

Supported Signal Types Voltage Signals, Current Signals, Temperature Signals​

Signal Conditioning Built-in anti-interference filtering, signal amplification functions​

Communication Interfaces USB3.0, Ethernet (RJ45)​

Compatible Systems Windows 7/8/10, Linux​

Development Environment Support LabVIEW, MATLAB, C/C++​

Protection Rating IP65​

Status Indication Power, Acquisition, Communication Status LED Indicators​

Electrical Parameters​

Input Bandwidth 100MHz​

Input Impedance 1MΩ±2%, 15pF±5%​

Vertical Sensitivity 2mV/div to 10V/div​

Rise Time ≤3.5ns​

Power Supply Voltage DC 24V​

Power Consumption 15W (typical)​

Input Range ±5V, ±10V (optional)​

Nonlinearity Error ±0.1%FS​

Physical and Environmental Parameters​

Overall Dimensions 120mm×80mm×40mm (L×W×H)​

Weight Approximately 350g​

Operating Temperature Range -20°C to 70°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5% to 95% (non-condensing)​

Vibration Resistance 5g (10Hz to 2000Hz)​

Shock Resistance 30g (11ms)​

Product Performance​

Sampling rate up to 1GHz, 8-bit resolution combined with ±0.1%FS nonlinearity error enabling high-speed and high-precision data acquisition​

100MHz wide input bandwidth and ≤3.5ns rise time, accurately capturing high-frequency transient signals with high signal fidelity​

64MSample large-capacity on-board memory supporting offline caching of acquired data to avoid loss during high-speed transmission​

Dual high-speed interfaces of USB3.0 and Ethernet with data transmission rate up to 5Gbps meeting real-time data interaction needs​

Built-in signal conditioning and anti-interference filtering functions effectively suppressing electromagnetic interference in industrial environments with strong acquisition stability​

IP65 protection rating combined with wide temperature operating range adapting to harsh industrial scenarios such as humidity and dust with excellent environmental tolerance​

Compatible with mainstream operating systems and development environments, supporting secondary development and custom acquisition strategies with strong functional expandability​

Compact design and lightweight body enabling flexible and convenient installation, suitable for industrial control cabinets and experimental platforms with limited space​
