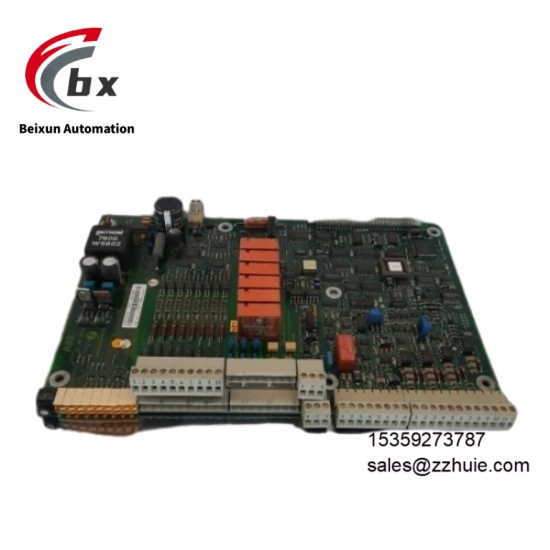

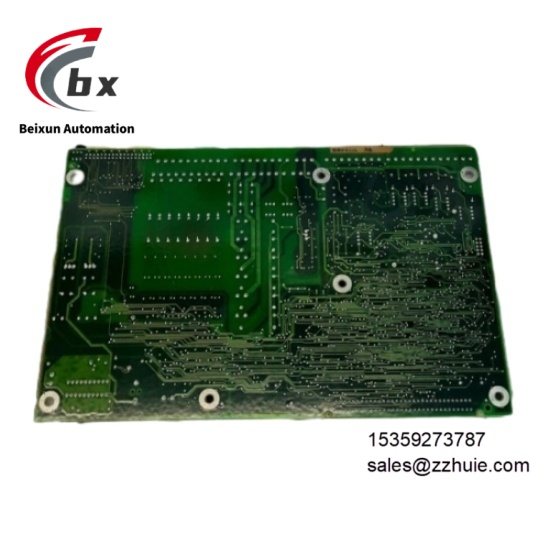

ABB YPQ110A 3ASD573001A5 Hybrid I/O module

ABB YPQ110A 3ASD573001A5 Hybrid I/O module

Specific Parameters

Brand ABB (Switzerland)

Product Series ABB YPQ Series Industrial Automation I/O Module Series

Product Type Industrial-Grade Hybrid I/O Module, Automation Control Module, Industrial Control Original Spare Part

Model ABB YPQ110A 3ASD573001A5

Country of Origin Switzerland (Imported)

Compatible Devices ABB Ability™ System 800xA Platform, ACS 500 Series Automation Systems, ACS880 Drives, Industrial Sensors, Actuators, Industrial Control Equipment

Processor 32-bit RISC Processor

Operating Power Supply 24VDC

Rated Power Consumption 8W

I/O Points 20 Points

Digital Input 8 Channels (≤24VDC)

Digital Output 8 Channels (≤24VDC)

Analog Input 2 Channels (0-10VDC)

Analog Output 2 Channels (0-10VDC)

Communication Protocols PROFIBUS DP, Modbus RTU

Communication Interfaces RS485 Interface

Sampling Rate 1000 Samples per Second

Protection Type Overcurrent Protection, Overvoltage Protection, Electromagnetic Interference Protection, 2500VAC Electrical Isolation Protection, 4kV Surge Protection

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP20

Physical Dimensions 96mm×64mm×24mm (Width×Height×Depth)

Physical Weight Approximately 0.8kg

Mounting Method Drawer-Type DIN Rail Mounting (Supporting Hot Swapping)

Special Functions Hybrid Signal Acquisition and Control, Hot Swapping, LED Status Indication, Fault Diagnosis, Programmable Filtering and Noise Reduction

Product Material High-Quality Industrial Flame-Retardant Board

Customizable No

Certification Standards CE, UL, RoHS

Warranty Period 12 Months

Product Performance

Compatible with ABB Ability™ System 800xA and ACS 500 series automation platforms, powered by 24VDC stably, the YPQ110A 3ASD573001A5 as an original spare part supports hot swapping, which is convenient to replace without stopping the machine, can quickly restore the system signal acquisition and control functions, and ensure the continuous operation of the industrial automation system.

Equipped with a 32-bit RISC processor, it has a high sampling rate, can accurately complete the hybrid acquisition, processing and output of digital and analog quantities, and integrates multiple signal interfaces on the same board, which greatly simplifies on-site wiring and reduces hardware procurement and operation and maintenance costs.

Supports a variety of mainstream industrial communication protocols and interfaces, can be seamlessly integrated with various ABB automation systems and third-party equipment, realizes high-speed synchronous data exchange, has strong anti-electromagnetic interference ability, and runs stably and reliably.

Integrated with multiple safety protection and electrical isolation functions, it can effectively prevent the module from being damaged by interference and voltage spikes. Reinforced packaging with industrial-grade flame-retardant material, it has strong adaptability to wide temperature environment and can operate stably for a long time in harsh industrial scenarios.

It has complete fault diagnosis and LED status indication functions, which can feedback the module operation status in real time, facilitate maintenance personnel to quickly locate faults, improve maintenance efficiency, and meet the needs of multi-scenario industrial automation control.
