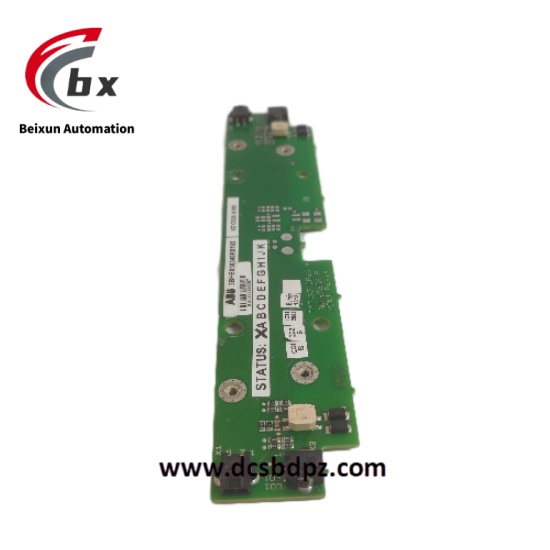

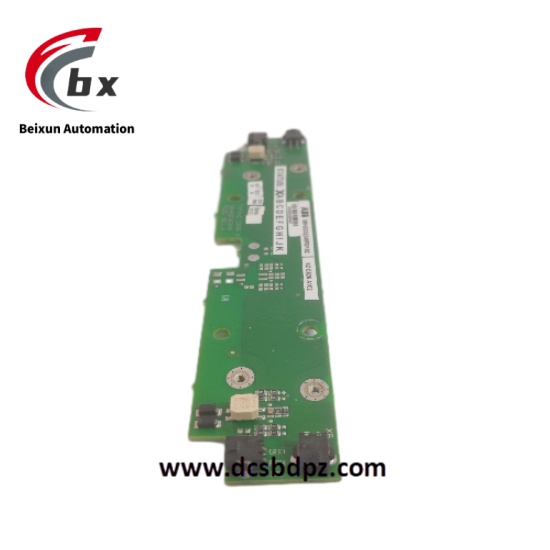

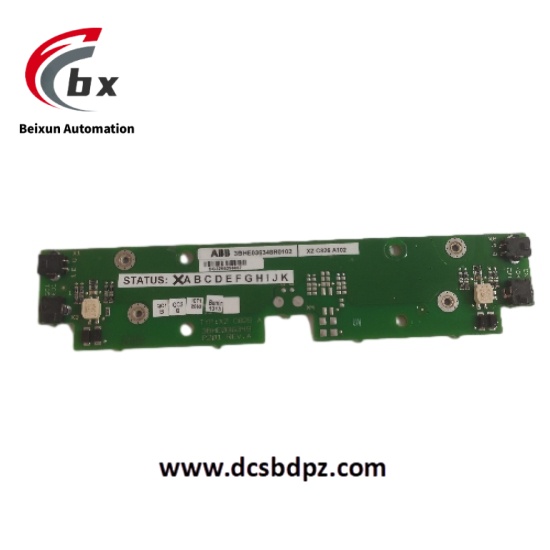

ABB XZC826A102 3BHE036348R0102 Signal conversion module
ABB XZC826A102 3BHE036348R0102 is an industrial-grade signal conversion module, mainly used for adaptation and transmission of different types of signals in automated control systems. This module can realize bidirectional conversion between analog and digital signals, compatible with signal standards of various sensors and actuators. It can be directly connected to ABB AC800M, S800 and other series control systems, building a stable signal bridge between field devices and the control layer.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB XZC826A102 3BHE036348R0102 Signal conversion module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±15%)
- Rated Power Consumption: ≤3.2W
- Power Protection: Equipped with overvoltage (≥36V DC) and reverse connection protection functions
- Signal Conversion Parameters
- Analog Input: 4 channels, supporting 4-20mA, 0-10V DC, 16-bit resolution
- Analog Output: 4 channels, output range 4-20mA (load ≤500Ω), 0-10V DC (load ≥10kΩ)
- Digital Input: 2 channels, dry contact input, response time ≤5ms
- Digital Output: 2 channels, transistor output, maximum load 1A@24V DC
- Isolation Parameters
- Signal-to-Signal Isolation: 2500V AC (for 1 minute continuously)
- Signal-to-Power Isolation: 2500V AC (for 1 minute continuously)
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20 (front panel)
- Physical Parameters
- Mounting Type: 35mm DIN rail mounting
- Dimensions: 110mm×80mm×65mm
- Weight: Approximately 0.3kg
Product Performance
- High-Precision Conversion: Analog conversion accuracy reaches ±0.1%FS, nonlinear error ≤0.05%, ensuring signal transmission accuracy.
- Strong Anti-Interference: Adopts multi-stage filtering and optoelectronic isolation design, capable of resisting 50V/m electromagnetic interference, complying with industrial EMC standards.
- Wide Signal Compatibility: Supports seamless conversion of multiple signal types, enabling connection to sensors of different brands without additional adapters.
- Stable Operation Ability: Within the temperature range of -20°C to +60°C, the output drift is ≤0.02%FS/°C, ensuring long-term operation stability.
- Fast Response: Digital signal response time ≤5ms, analog conversion delay ≤10ms, meeting real-time control requirements.
