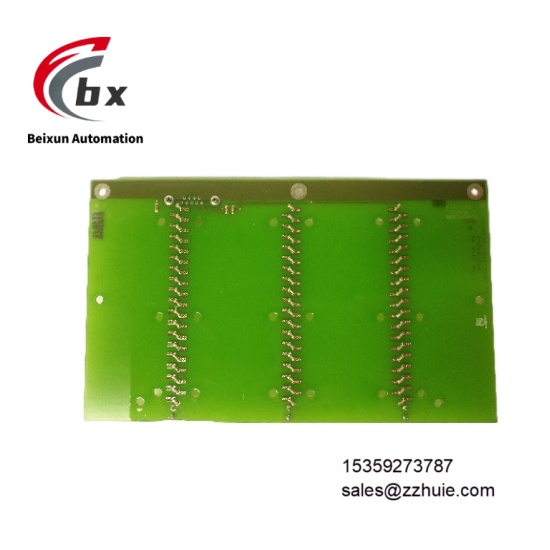

ABB XVC770BE102 3BHE021083R0102 Inverter control board

ABB XVC770BE102 3BHE021083R0102 Inverter control board

Specific Parameters​

Electrical Parameters​

Operating Voltage: 220V AC, compatible with industrial standard power supply systems​

Processing Speed: 550μs, meeting high-speed control command execution requirements​

Output Frequency: 100Hz, suitable for medium and high frequency motor drive scenarios​

I/O Points: 24 points, supporting multi-device collaborative control​

Communication Protocols: Compatible with Modbus, PROFIBUS, Ethernet protocols for seamless system integration​

Program Capacity: 300KB, supporting complex control logic programming​

Data Capacity: 200KB, meeting real-time data storage requirements​

Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown) between contacts and between contacts and housing​

Insulation Resistance: ≥100MΩ (measured with 500V DC megohmmeter, normal temperature and state)​

Diagnostic Functions: Integrated self-diagnosis for power failure, communication interruption and channel abnormality, with real-time fault signal output​

Mechanical Parameters​

Overall Dimensions: 200mm (L) × 250mm (W) × 300mm (H), adapting to standard control cabinet layout​

Weight: 2.5kg, modular design balancing structural strength and installation convenience​

Mounting Method: Rack-mounted, compatible with standard industrial control rack dimensions​

Housing Material: Flame-retardant reinforced engineering plastic (UL94 V-0 grade), impact and chemical corrosion resistant​

Connection Method: Screw-type terminal blocks, compatible with 1.0-4.0mm² wire gauge, wiring torque 1.2-1.8N·m​

Status Indication: Multi-color LED indicator group, real-time feedback of power, operation and fault status​

Environmental Parameters​

Operating Temperature: -20℃ to +70℃, covering high and low temperature industrial working conditions​

Storage Temperature: -40℃ to +85℃, meeting extreme storage and transportation requirements​

Relative Humidity: 5% to 85% (non-condensing), suitable for humid industrial scenarios​

Protection Rating: IP20, suitable for dense installation environment in control cabinets​

Vibration Resistance: 10-500Hz frequency range, 1g acceleration (sine wave), no structural loosening​

EMC Compliance: Meets EN 55014-1 (emission limits) and EN 55014-2 (immunity) standards​

Installation Altitude: ≤1000m (no power derating), suitable for most industrial scenarios​

Product Performance​

Excellent control precision: 550μs processing speed combined with 100Hz output frequency, realizing precise regulation of motor parameters​

Wide compatibility: Supports 3 mainstream industrial communication protocols, seamlessly integrating DCS and PLC systems​

High operational reliability: Multiple self-diagnostic functions cover core fault scenarios, Mean Time Between Failures (MTBF) ≥200,000 hours​

Strong expansion capability: 24 I/O interfaces support multi-device access, reducing system hardware configuration costs​

High maintenance efficiency: Real-time fault alarm and modular design, fault diagnosis and replacement time ≤30 minutes​

Excellent environmental adaptability: Wide operating temperature range and anti-vibration design, suitable for harsh working conditions in multiple industries​

Accurate signal conversion: Can work with sensors and transmitters to realize standardization conversion of non-electrical physical quantities​
