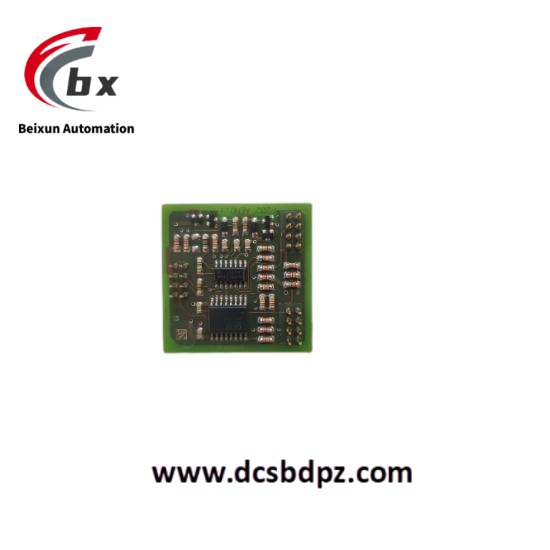

ABB XVC767AE102 3BHB007209R0102 Visual control module
The ABB XVC767AE102 3BHB007209R0102 is a high-performance industrial vision control module specifically designed for visual inspection and positioning tasks on industrial automation production lines. By integrating advanced image processing algorithms and high-speed data processing chips, this module can quickly and accurately analyze images captured by industrial cameras, enabling functions such as product defect detection, dimensional measurement, and component positioning. It effectively improves the quality control level and automation degree of industrial production.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB XVC767AE102 3BHB007209R0102 Visual control module
Specific Parameters
- Image Processing Capacity: Supports real-time processing of up to 4K resolution images at a frame rate of 60fps
- Processor: Multi-core GPU processor with a main frequency of 2.8GHz, providing powerful parallel computing capabilities
- Memory: 16GB RAM, 64GB Flash, meeting the requirements for image data storage and program operation
- Communication Interfaces: 2 Gigabit Ethernet interfaces for connecting industrial cameras and host computers; 4 USB 3.0 interfaces for external storage devices or other peripherals; 1 RS – 485 interface for communication with PLCs and other devices
- Power Supply Voltage: 24V DC (±15%)
- Power Consumption: ≤100W
- Operating Temperature: 0°C – 50°C
- Storage Temperature: -20°C – 70°C
- Dimensions: 250mm×180mm×60mm
- Weight: Approximately 2kg
Product Performance
- High-Speed and Precise Detection: With a multi-core GPU processor and advanced algorithms, it can complete the analysis of 4K resolution images in a short time. The detection accuracy for tiny defects can reach 0.01mm, meeting the requirements of high-precision industrial inspection and significantly improving detection efficiency and accuracy.
- Multi-Task Processing: The powerful parallel computing capability supports simultaneous processing of multiple visual tasks. For example, product appearance inspection and dimensional measurement can be carried out simultaneously on the same production line, effectively enhancing the overall operation efficiency of the production line.
- Flexible Communication Connection: The rich communication interfaces support connection of various devices. High-definition image data can be quickly transmitted via Gigabit Ethernet, and the RS – 485 interface enables seamless connection with PLCs and other devices, facilitating the direct use of visual inspection results for production process control.
- Stable and Reliable Operation: Through strict industrial-grade testing, it has good anti-electromagnetic interference ability and can operate stably in complex industrial environments, reducing production line downtime caused by equipment failures.
- Easy Programming and Deployment: It supports multiple programming languages and development environments and provides visual programming tools. Engineers can quickly develop customized visual inspection programs according to actual needs. The modular design is convenient for installation and maintenance, shortening the project deployment cycle.
