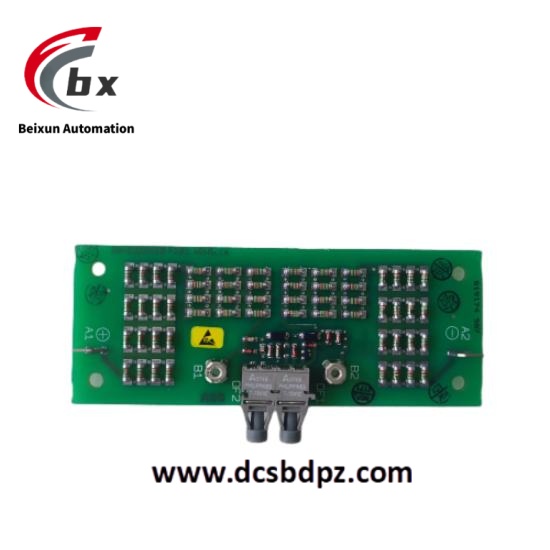

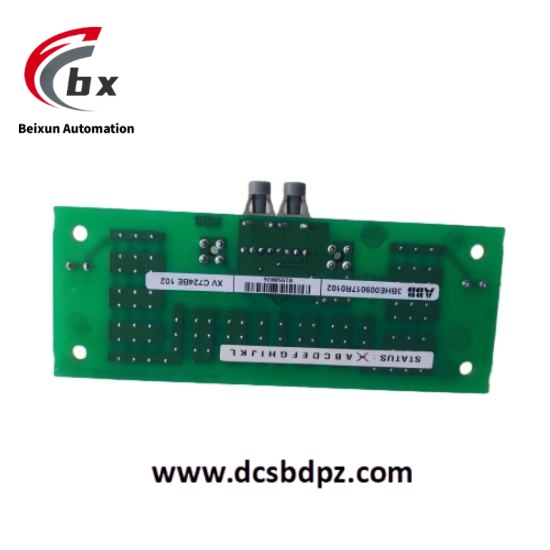

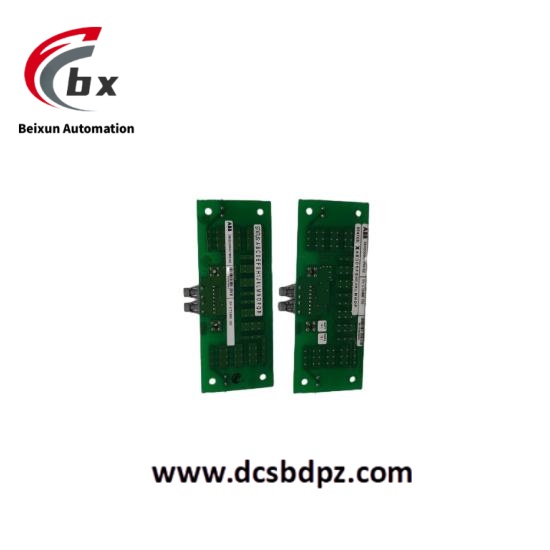

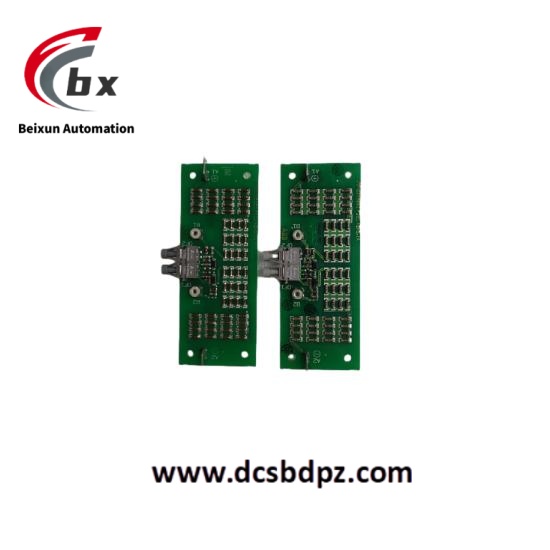

ABB XVC724BE102 3BHE009017R0102 Compact industrial visual controller
The ABB XVC724BE102 3BHE009017R0102 is a compact industrial vision controller designed for visual inspection and guidance tasks on medium-to-low-speed automated production lines. By integrating high-performance image processing chips and dedicated visual algorithms, this product can quickly process images captured by industrial cameras, enabling functions such as object recognition, dimensional measurement, and defect detection. It can work in coordination with PLCs, robots, and other devices, effectively enhancing the automation and intelligence level of the production process.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB XVC724BE102 3BHE009017R0102 Compact industrial visual controller
Specific Parameters
- Image Processing Capacity：Supports up to 4K resolution image processing at a frame rate of 25fps
- Processor：Quad-core ARM processor with a main frequency of 2.0GHz
- Memory：8GB RAM, 32GB Flash
- Communication Interfaces：1 Gigabit Ethernet interface, 2 USB 3.0 interfaces, 1 RS – 485 interface, 1 CAN bus interface
- Power Supply Voltage：24V DC (±15%)
- Power Consumption：≤35W
- Operating Temperature：0°C – 50°C
- Storage Temperature：-20°C – 70°C
- Protection Level：IP20
- Dimensions：150mm×100mm×50mm
- Weight：Approximately 0.8kg
Product Performance
- Efficient Image Analysis：The quad-core ARM processor combined with dedicated visual algorithms can quickly complete the analysis of 4K images, meeting the real-time inspection requirements of medium-to-low-speed production lines. The detection accuracy reaches 0.1mm, ensuring the accuracy of product quality inspection.
- Multi-Device Integration：Rich communication interfaces support seamless connection with various industrial devices. High-speed data transmission with host computers can be achieved via Ethernet, and RS – 485 and CAN bus interfaces facilitate communication with PLCs, sensors, and other devices, enabling coordinated control of the vision system and production line.
- Stable and Reliable Operation：Adopting industrial-grade design standards, it has good anti-electromagnetic interference ability and can operate stably in complex industrial environments. Meanwhile, the product has passed strict tests and is equipped with overvoltage and overcurrent protection functions, reducing the risk of equipment failure and extending the service life.
- Flexible Programming and Debugging：Supports graphical programming interfaces and multiple programming languages, allowing users to quickly develop visual inspection programs according to actual needs. Built-in debugging tools facilitate on-site debugging and parameter optimization by engineers, shortening the project deployment cycle.
- Low-Power Design：With a power consumption of ≤35W, it consumes less energy compared to similar products, effectively reducing usage costs. It generates less heat and does not require additional cooling devices, making it suitable for applications with requirements for power consumption and space.
