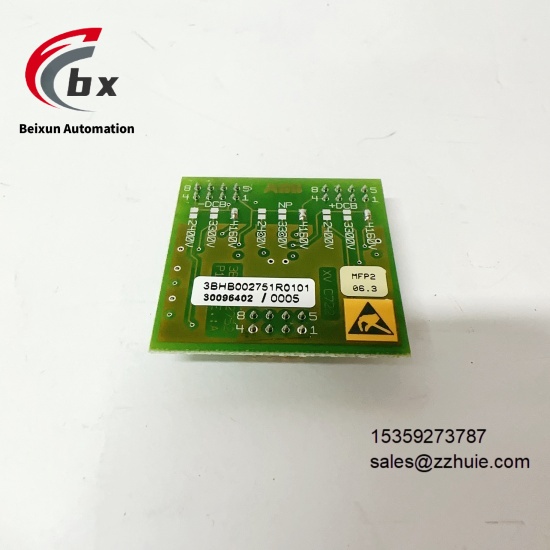

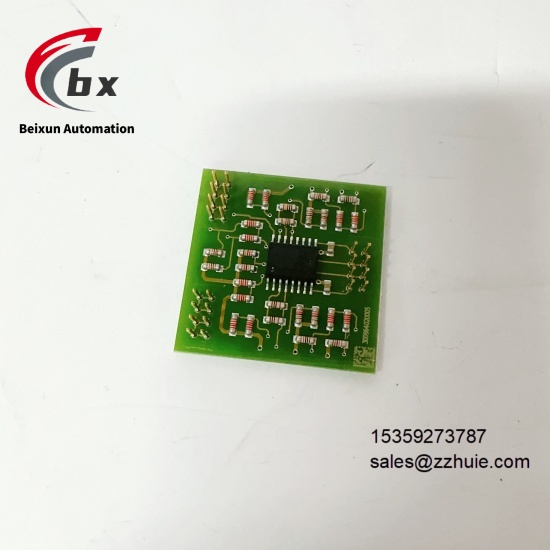

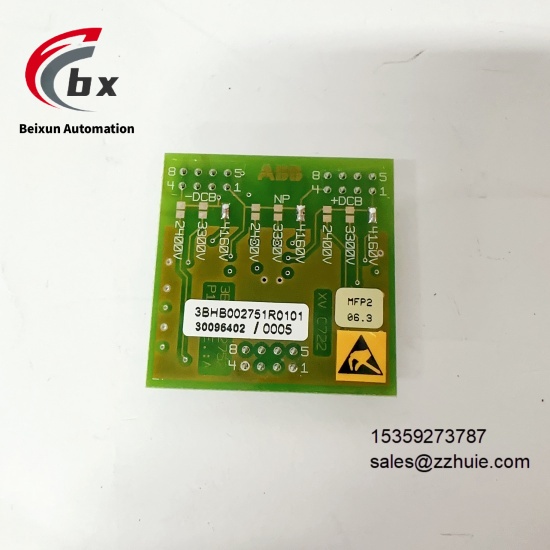

ABB XVC722AE101 3BHB002751R0101 Analog control module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC, supporting stable input without fluctuationInput Channels 8 independent analog input channels, mutually isolated between channelsOutput Channels 4 independent analog output channels, supporting bidirectional signal transmissionInput Signal Types Compatible with 4-20mA DC current signal, 0-10V DC voltage signalOutput Signal Types 4-20mA DC current signal, 0-10V DC voltage signal (configurable)Measurement Accuracy ±0.1% of full scale, ensuring accurate signal processingResolution 16-bit, accurately capturing subtle signal changesCommunication Protocols Compatible with Profibus DP, Modbus TCP, Ethernet/IP mainstream industrial protocolsCommunication Interfaces Equipped with RS485 interface and Ethernet interface, supporting multi-device interconnectionIsolation Level Electrical isolation between channels and between channels and power supply, isolation voltage 500V ACProtection Features Built-in overvoltage protection, overcurrent protection, short circuit protection, reverse polarity protectionCertification Standards Compliant with CE, UL, IEC 61158, IEC 61010-1 standards
Mechanical Parameters
Overall Dimensions 160mm×105mm×32mm, compact structure suitable for dense installationWeight Approximately 0.35kg, lightweight design facilitating deploymentMounting Method 35mm DIN rail mounting, compatible with standard industrial control cabinetsHousing Material Industrial-grade high-strength material with good insulation and anti-electromagnetic interference performanceConnection Method Plug-in spring terminals, compatible with 0.5-1.5mm² shielded cablesProtection Rating IP20, suitable for indoor control cabinet installation scenariosStatus Indication Equipped with power (green), operation (yellow), channel fault (red) LED indicators
Environmental Parameters
Operating Temperature -20℃ to 60℃, operation without derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (half-sine wave, duration 11ms)EMC Compliance Complies with EN 55014-1, EN 55014-2 standards, with standard anti-external electromagnetic interference capability
Product Performance
Accurate signal processing: ±0.1% full-scale accuracy combined with 16-bit resolution ensures the accuracy of control commandsFlexible channel configuration: 8 input and 4 output analog channels adapt to linkage control of multiple sensors and actuatorsReliable isolation design: 500V AC electrical isolation avoids inter-channel crosstalk and voltage impactWide communication compatibility: Multi-protocol support enables seamless connection to mainstream DCS and PLC systems, realizing real-time data interactionStrong environmental adaptability: Wide temperature operation and strong anti-interference design tolerate complex industrial working conditionsConvenient installation and maintenance: Modular structure + plug-in terminals reduce disassembly difficulty and operation and maintenance costsHigh operational reliability: Industrial-grade components and multiple protection mechanisms, Mean Time Between Failures (MTBF) ≥300,000 hoursOutstanding system adaptability: Perfectly compatible with ABB Symphony Plus DCS, and can be seamlessly integrated with third-party automation equipment
