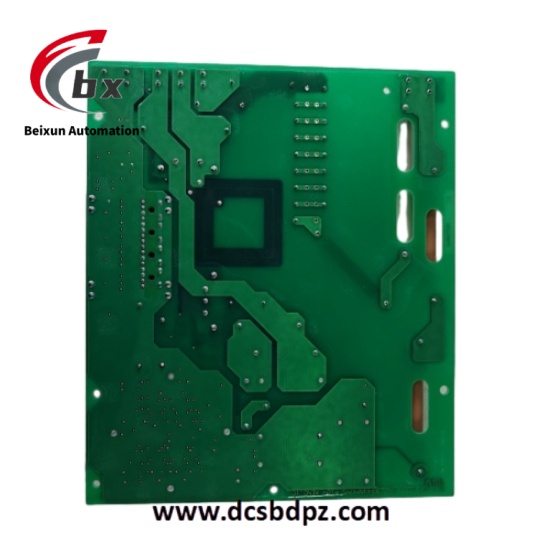

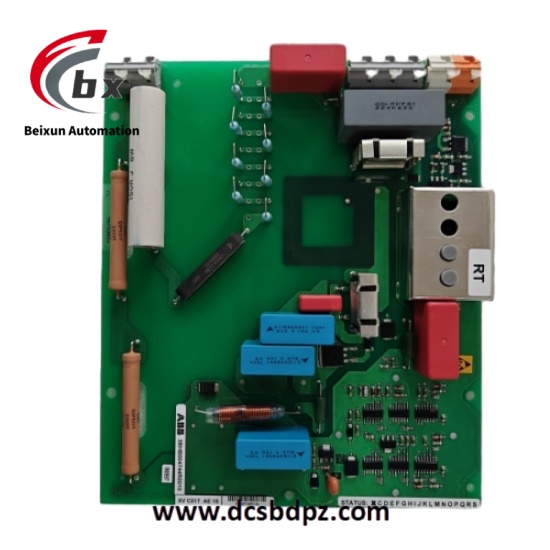

ABB XVC517AE10 3BHB004744R0010 Ethernet communication module
ABB XVC517AE10 3BHB004744R0010 is an industrial Ethernet communication module designed for industrial automation control systems to achieve high-speed and stable data transmission between devices. It can connect controllers with upper-level systems such as HMI, SCADA, OPC servers, etc., ensuring reliable data interaction in industrial networks and is a key component in building an efficient industrial communication architecture.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB XVC517AE10 3BHB004744R0010 Ethernet communication module
Specific Parameters
- Communication protocols: Supports TCP/IP, Ethernet/IP, Modbus TCP
- Interface type: Dual RJ45 interfaces (supporting redundancy)
- Transmission rate: 10/100/1000 Mbps adaptive
- Power supply voltage: 24V DC
- Installation method: DIN rail installation
- Dimensions: Standard module is about 45mm wide
- Operating temperature range: 0°C to +55°C
- Storage temperature range: -40°C to +70°C
- Protection class: IP20
- Certification standards: Passed CE, UL, FM certifications
- Module weight: Approximately 200g
- Compatible systems: ABB AC 800M, 800xA
- Redundancy support: Supports MRP ring network redundancy protocol
- Data buffer: Built-in data buffer area, supporting resume after disconnection
Product Performance
- High-speed data transmission: Supports gigabit adaptive Ethernet communication with a maximum transmission rate of 1000 Mbps, meeting the data throughput requirements of large control systems and ensuring rapid data transfer.
- Highly reliable communication: Dual RJ45 interfaces combined with the MRP ring network redundancy protocol. When one communication link is disconnected, the other takes over automatically, ensuring uninterrupted communication, suitable for industrial scenarios with extremely high requirements for communication stability.
- Wide compatibility: Supports multiple mainstream industrial communication protocols and can be easily integrated into various SCADA systems, HMI, OPC servers, etc., enhancing system integration flexibility.
- Convenient status monitoring: Equipped with status indicators to visually display communication status and link connection, facilitating quick fault diagnosis and improving maintenance efficiency.
