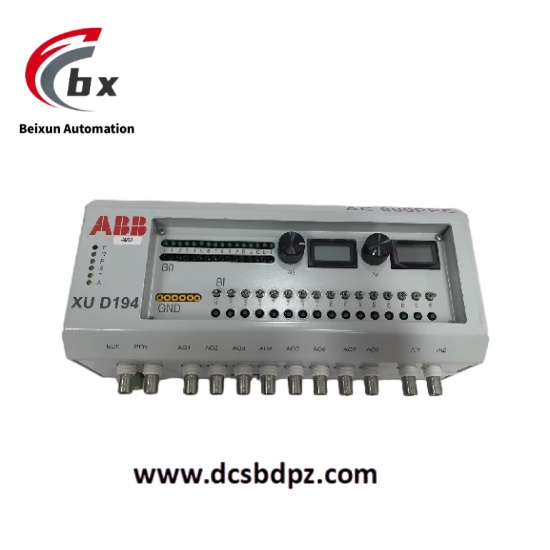

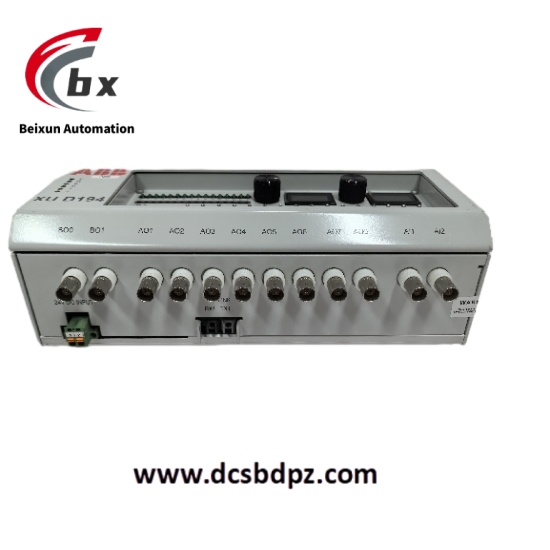

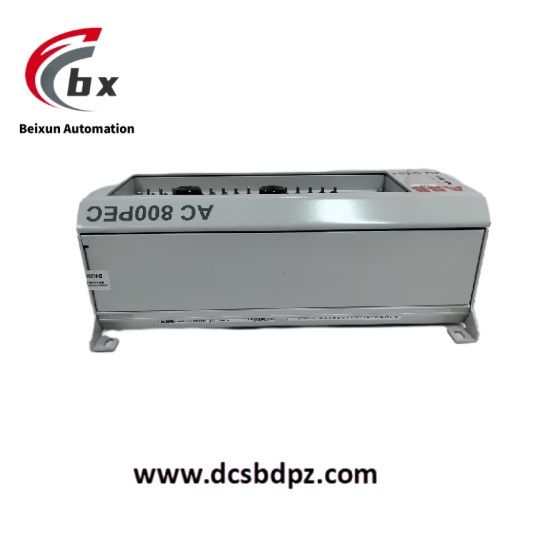

ABB XUD194 3BHE018137R0001 AC800PEC Process engineering controller

Specific Parameters

Core Configuration Parameters
CPU Model: 32-bit PowerPC processor
Operation Speed: 100 MIPS
Memory Capacity: 128MB RAM (program and data storage), 256MB Flash (firmware and configuration storage)
Control Cycle: Down to 1ms (adjustable based on control strategy complexity)
Supported Control Algorithms: PID, feedforward control, fuzzy control, custom function blocks
Electrical Parameters
Supply Voltage: 24VDC (±10%)
Power Consumption: ≤15W under normal operation; ≤20W at maximum load
Power Redundancy: Supports 1+1 redundancy configuration (requires redundant power module)
Isolation Level: 2.5kVAC between I/O and system (1 minute); 1kVAC between communication interface and system (1 minute)
Ground Resistance: ≤1Ω (protective grounding)
Environmental & Mechanical Parameters
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
Protection Class: IP20 (controller itself)
Dimensions: 100mm (W) × 160mm (H) × 220mm (D)
Weight: Approximately 1.2kg
Mounting Method: 35mm standard DIN rail mounting (compliant with EN 60715)
Communication Parameters
Built-in Communication Interfaces: 1×PROFIBUS DP master/slave (RS485), 2×Ethernet (10/100Base-TX, supports TCP/IP)
Supported Expansion Communication Modules: PROFINET IO, EtherNet/IP, Modbus RTU/TCP
Communication Rate: Up to 12Mbps for PROFIBUS DP; up to 100Mbps for Ethernet
Protocol Compatibility: Supports OPC UA, IEC 61850 (requires expansion module)

Product Performance

AC800PEC XUD194 adopts a high-performance PowerPC processor with an operation speed of 100 MIPS and a control cycle down to 1ms, enabling rapid response to dynamic changes in complex industrial processes and achieving high-precision closed-loop control. It supports 1+1 redundancy configuration for CPU, power supply and communication links, with redundancy switchover time ≤10ms, system availability ≥99.99%, and Mean Time Between Failures (MTBF) ≥150,000 hours.

Integrated with multi-protocol communication capability, it can directly access factory-level industrial networks to realize data interaction with PLC, DCS and SCADA systems, with data transmission delay ≤20ms. Compatible with ABB Control Builder M engineering software, it supports graphical configuration and online debugging, and can reuse standardized function block libraries, reducing engineering development cycle by more than 30%.

It is equipped with comprehensive self-diagnosis functions, which can real-time monitor the operating status of CPU, memory, power supply and communication interface. When a fault is detected, it automatically triggers an alarm and records fault codes, and switches to the standby unit automatically under redundancy configuration to ensure uninterrupted control process. Its wide temperature operating range and high isolation level design can adapt to harsh industrial environments such as electromagnetic interference and voltage fluctuations.
