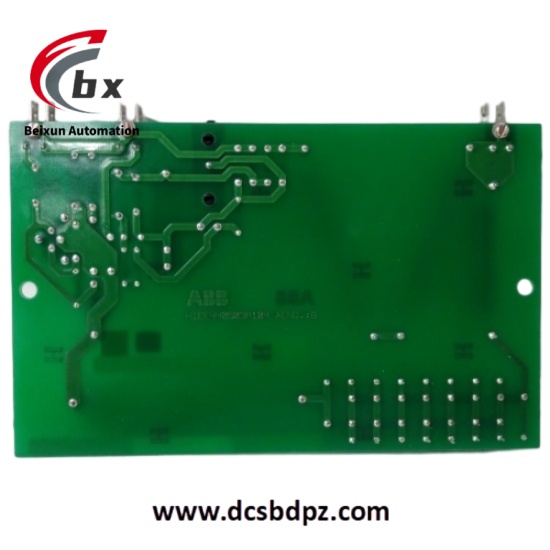

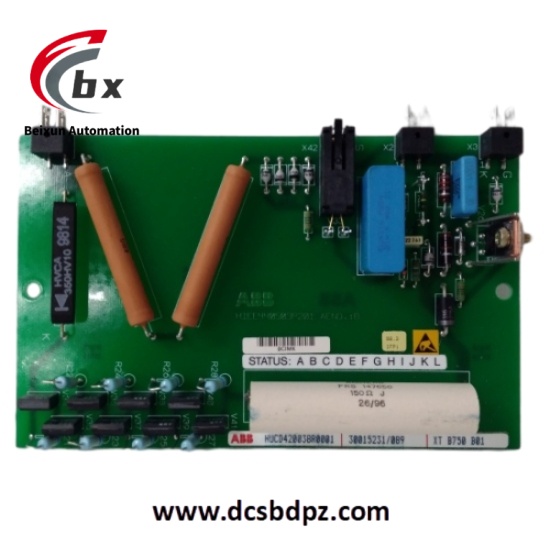

ABB XTB750B01 HUCD420038R0001 HIEE440503P201 Industrial control terminal module
ABB XTB750B01 HUCD420038R0001 HIEE440503P201 is an industrial control terminal module, mainly used for centralized signal processing and distribution in large-scale automation control systems. The module integrates multiple signal interfaces, which can realize centralized collection and output of digital and analog signals. It also supports high-speed communication with upper-level control systems, providing a stable control core for equipment linkage and parameter adjustment in industrial production processes, adapting to the control needs of complex industrial scenarios.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB XTB750B01 HUCD420038R0001 HIEE440503P201 Industrial control terminal module
Specific Parameters
- Input channels: 32 digital inputs, 16 analog inputs (4-20mA)
- Output channels: 32 digital outputs, 8 analog outputs (4-20mA)
- Power supply voltage: 24V DC
- Rated current: 5A
- Power consumption: Maximum 25W
- Operating temperature range: -10°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 320mm×220mm×120mm
- Weight: 3.5kg
- Communication interfaces: 2 Ethernet ports (10/100Mbps), 1 RS485 interface
- Processing speed: 1ms (digital signal response)
- Isolation voltage: 2500V AC (between channels)
- Certification standards: Complies with IEC 61131-2, UL 508 standards
Product Performance
- Efficient signal processing: 32 digital and 16 analog input channels, combined with 1ms fast response speed, can collect a large number of on-site signals in real time, ensuring the timely execution of control commands.
- Stable communication transmission: Dual Ethernet ports support redundant communication, ensuring uninterrupted data interaction with upper-level systems, adapting to high-reliability control scenarios.
- Strong anti-interference ability: 2500V AC isolation between channels effectively resists electromagnetic interference in industrial sites, ensures signal transmission accuracy, and reduces the risk of misoperation.
- Wide temperature stable operation: -10°C to +60°C operating temperature range, can work continuously and stably in high and low temperature industrial environments, meeting diversified on-site needs.
- Flexible expansion and adaptation: Rich input and output channel configurations can access multiple devices without additional expansion modules, simplifying the system architecture and reducing integration costs.
