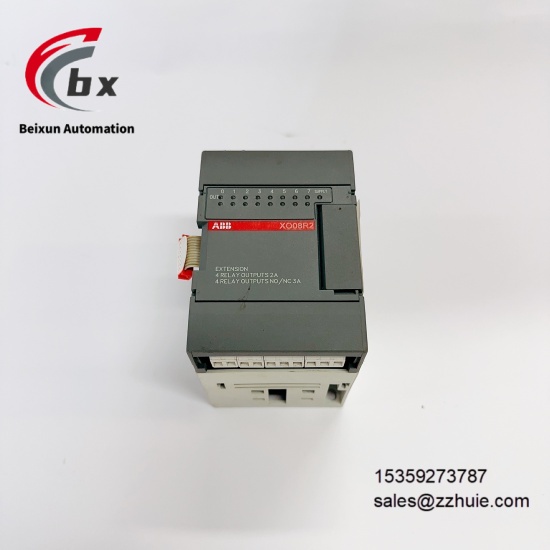

ABB XO08R2 1SBP260109R1001 Relay output expansion module

ABB XO08R2 1SBP260109R1001 Relay output expansion module

Specific Parameters​

Core and Function Parameters​

Product Type Relay Output Extension Module​

Manufacturer ABB​

Model XO08R2, Part Number 1SBP260109R1001​

Series Advant Controller 31 Series​

Output Type Relay Output​

Number of Outputs 8 relay output points, 1 NC normally closed signal output​

Contact Type Normally open contacts​

Communication Protocol Modbus RTU Protocol​

Protection Functions Over – current Protection, Short – circuit Protection, Over – temperature Protection​

Detection Function Relay contact fault detection​

Compatible Systems ABB 800xA Distributed Control System​

Connection Method I/O BUS connection, Cable connection, Connector connection​

Installation Method DIN Rail Installation​

Certification Standards Complies with IEC 61000 – 6 – 2 EMC standards​

Electrical and Performance Parameters​

Input Voltage 24V DC or 120 – 230V AC​

Power Frequency 50 – 60Hz​

Contact Capacity Maximum current 2A per channel, Maximum voltage 250V AC/DC​

Power Consumption 5W​

Electromagnetic Compatibility Complies with IEC 61000 – 6 – 2 standard​

Safety Level PL e/Cat 4, SIL3​

Switching Capacity 10A/250V​

Physical and Environmental Parameters​

Overall Dimensions 80mm×45mm×30mm​

Weight 0.15kg​

Operating Temperature Range 0°C to 55°C​

Storage Temperature Range – 25°C to 70°C​

Relative Humidity 5% to 95%, non – condensing​

Protection Rating IP67​

Housing Material Aluminum Alloy​

Product Performance​

The modular structure combined with standardized interfaces can quickly connect to the main module through I/O BUS, featuring easy installation and disassembly and significantly improving operation and maintenance efficiency​

Equipped with built – in relay contact fault detection function, it can real – time monitor open or short – circuit faults of contacts and send alarm signals, reducing fault troubleshooting time​

It meets PL e/Cat 4 and SIL3 safety levels, and is equipped with multiple protections including over – current, short – circuit and over – temperature to ensure the safe operation of control systems and load equipment​

It meets IP67 protection level, suitable for dusty, humid and other harsh scenarios, and the wide temperature range of – 25°C to 70°C can cope with extreme temperature environments in different regions​

It supports seamless connection with ABB 800xA system, which can be automatically identified when inserted into the rack without manual parameter adjustment, shortening the system commissioning cycle​

Each channel has a current – carrying capacity of 2A, which can directly drive small motors, solenoid valves and other loads without additional contactors, reducing the cost of system construction​

It has signal isolation function, which can reduce external signal interference, ensure stable signal transmission and accurate execution of control instructions​
