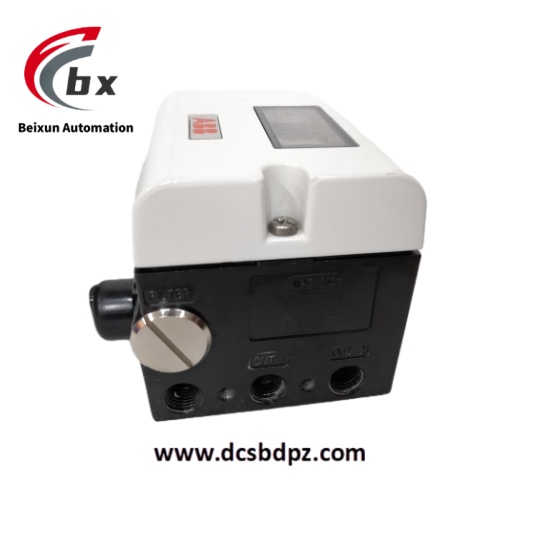

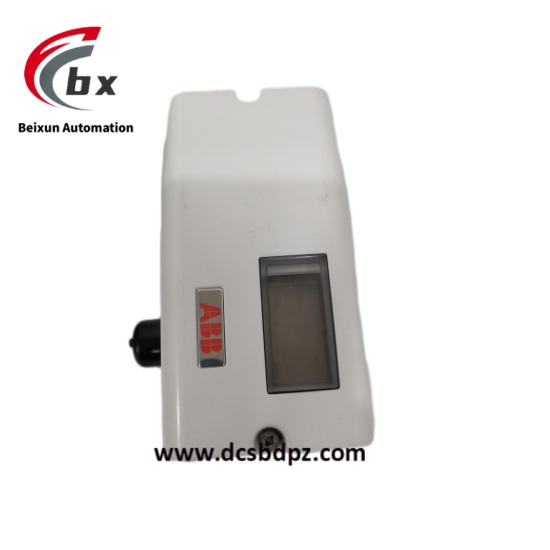

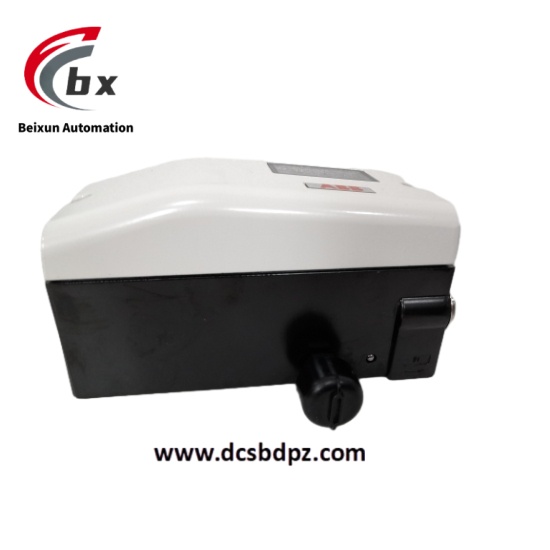

ABB V18345-1010521001 POSITIONER
Specific Parameters
- Input signal: 4-20mA DC (with HART protocol communication)
- Output signal: 0.2-1.0bar for double-acting, 0.2-1.0bar for single-acting
- Stroke range: Linear stroke 5-100mm, rotary stroke 0-90°
- Basic error: ≤±0.5% full scale
- Hysteresis: ≤0.2% full scale
- Response time: ≤0.5 seconds (for 10% step change)
- Supply pressure: 0.4-0.7MPa
- Ambient temperature: -40℃ to +85℃
- Relative humidity: 0-95% (non-condensing)
- Protection class: IP66/IP67
- Housing material: Die-cast aluminum alloy (surface coated)
- Mounting method: Directly mounted on valve actuator, supporting multi-angle installation
Product Performance
- High-precision regulation: Non-contact position detection combined with microprocessor control ensures valve positioning accuracy ≤±0.5% full scale, meeting high-precision process control requirements.
- Fast response: Response time to input signal changes is ≤0.5 seconds, which can quickly adapt to working condition changes and reduce regulation lag.
- Wide environmental adaptability: Operating temperature range of -40℃ to +85℃ and IP66/IP67 protection class enable stable operation in extreme climates, dust and humid environments.
- Intelligent diagnosis: Built-in self-diagnosis module can detect faults such as valve jamming and air supply abnormality, and feed back through HART protocol for easy maintenance.
- Energy-saving design: Adopts low-power solenoid valve with low air consumption, saving more than 30% energy compared with traditional positioners
