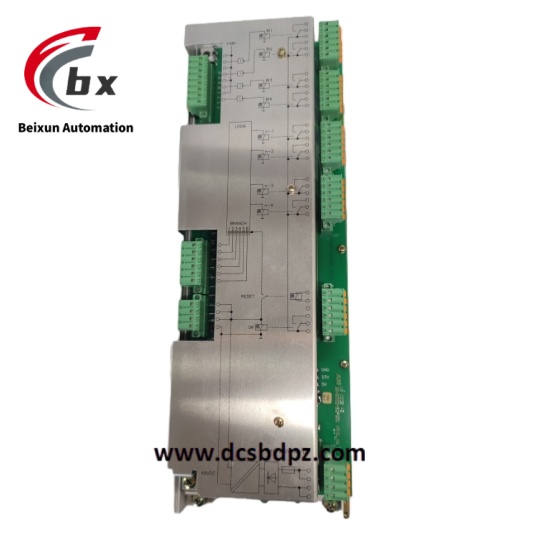

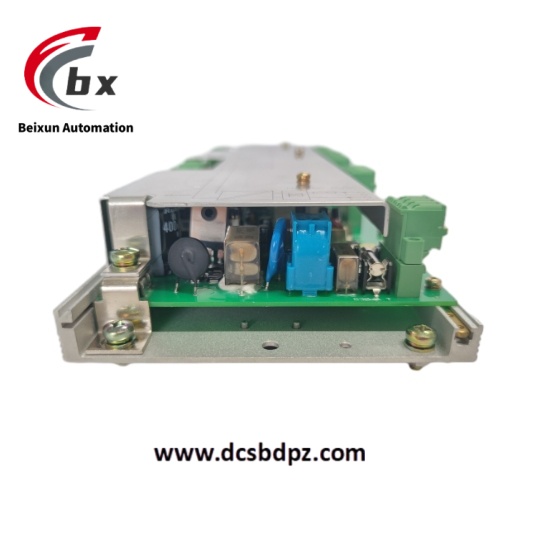

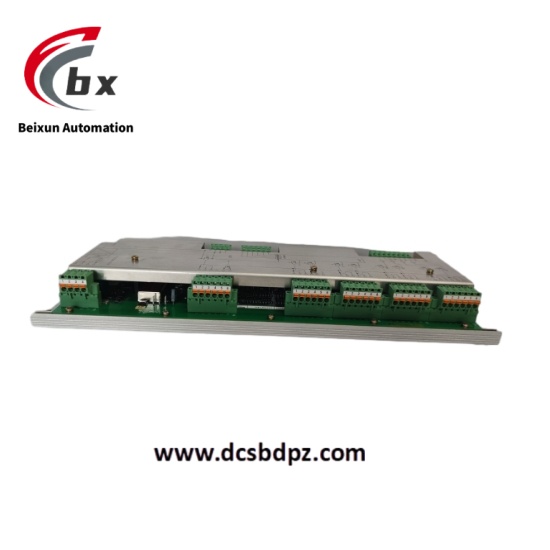

ABB USC329AE01 3BHB002483R0001 Controller module
ABB USC329AE01 3BHB002483R0001 is an industrial automation control module, a key component of ABB process automation systems. Its core function is to achieve precise monitoring and logic control of industrial equipment and production processes. By collecting on-site signals in real time and executing preset control algorithms, it ensures the production process runs stably according to parameters. The module supports multiple industrial communication protocols, enabling seamless connection with PLCs, HMIs, and upper-level management systems, suitable for automation integration in complex industrial scenarios.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB USC329AE01 3BHB002483R0001 Controller module
Specific Parameters
- Power supply voltage: 24V DC
- Rated current: 25A
- Output voltage: DC 24V
- Maximum output current: 10A
- Operating temperature range: -10℃ to +60℃
- Protection class: IP20
- Input channels: 16 digital inputs (supporting single-ended and differential types)
- Output channels: 14 digital outputs (relay type)
- Communication interfaces: Ethernet, RS232, RS485, Profibus DP (electrical and fiber optic interfaces)
- Processor: 32-bit RISC processor
- Memory: 128 KB RAM, 512 KB Flash
- Power consumption: 2W
- Processing speed: 550μs
- Mounting type: DIN rail mounting
Product Performance
- High-speed data processing: 32-bit RISC processor supports 550μs fast response, enabling real-time processing of multi-channel input signals and execution of complex control logic, meeting industrial-grade real-time requirements.
- Stable signal transmission: Multiple electrical isolation designs resist electromagnetic interference, ensuring the accuracy of digital input/output signals in high-interference environments without signal loss or false triggering.
- Flexible system integration: Compatible with mainstream protocols such as Modbus and Profibus, it can be directly connected to existing automation systems without additional adapters, simplifying integration processes.
- Wide environmental adaptability: Operates stably in -10℃ to +60℃ temperature range, with IP20 protection class suitable for cabinet installation, resisting dust and humidity in industrial sites.
- Reliable protection mechanism: Built-in overcurrent and overvoltage protection circuits automatically cut off output under abnormal load conditions, protecting the module and connected equipment from damage.
