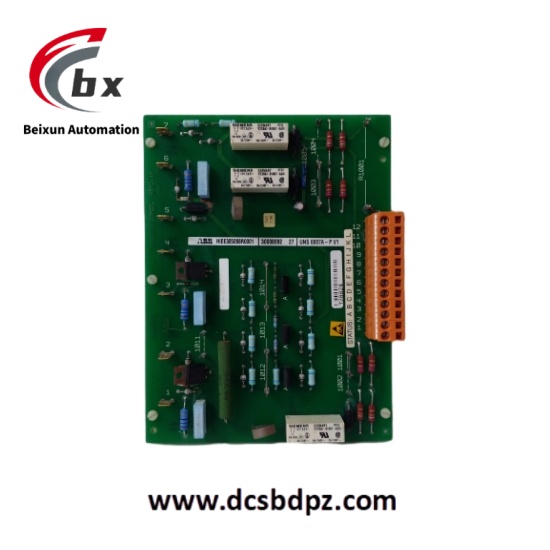

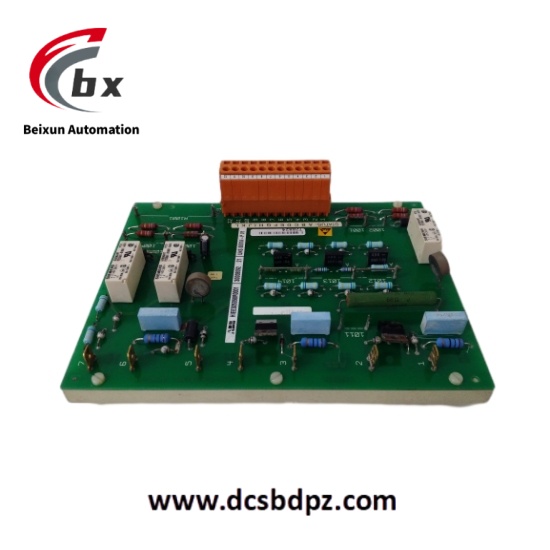

ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201 Logic control module
ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201 is an industrial-grade high-performance logic control module designed for complex industrial automation systems. It integrates high-speed logic operation, signal conversion and communication functions, supports multiple industrial communication protocols, and enables precise control and real-time data interaction with production line equipment, motor drives, sensors, etc. Its reinforced housing design features vibration resistance and electromagnetic interference resistance, suitable for high-intensity working environments in manufacturing, energy, metallurgy and other industries.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UNS0007A-P V1 HIEE305098R0001 HIEE410730P201 Logic control module
Specific Parameters
- Operating voltage: 220V AC±10%
- Output frequency: 50kHz (fixed output)
- Rated insulation voltage: 440V AC (complies with IEC/EN 60664-1 standard)
- Rated impulse withstand voltage: 4kV (2000m altitude), 5kV (sea level), 6.2kV (specific working conditions)
- Rated current: Continuous output 10A, peak output 20A
- Rated short-circuit capacity: 10kA at 230V AC, 10kA at 400V AC
- Rated ultimate short-circuit breaking capacity: 25kA at 230V AC/400V AC
- Rated service short-circuit breaking capacity: 12.5kA at 230V AC
- Power loss: 3.8W per pole (rated load), 1.9W per pole (light load)
- Operating temperature range: -25°C to +55°C
- Storage temperature range: -40°C to +70°C
- Pollution degree: Class 3 (industrial environment standard)
- Vibration resistance: 5g acceleration, 5-150Hz frequency range, stable operation for 20 cycles
- Shock resistance: 25g acceleration, 13ms duration, 2 shocks without failure
- Dimensions: 120mm×80mm×60mm
- Weight: 0.6kg
Product Performance
- High-speed logic operation: Equipped with 32-bit RISC processor, logic processing speed reaches 1μs/step, which can quickly execute complex control programs and meet the real-time control requirements of industrial production lines.
- Stable signal transmission: Input and output signals adopt photoelectric isolation design with isolation voltage 2500V AC, effectively resisting on-site electromagnetic interference and ensuring 100% signal transmission accuracy.
- Wide environmental adaptability: Stable operation in the operating temperature range of -25°C to +55°C, reinforced housing protection can resist dust and oil intrusion, adapting to high-pollution industrial scenarios.
- Multiple safety guarantees: Integrates overcurrent, overvoltage and short-circuit protection functions, cuts off output within 10ms when short-circuit occurs, protecting the module and connected equipment.
- Flexible system integration: Supports PROFINET and Modbus RTU communication protocols, can seamlessly connect with PLC and HMI systems, and modular design facilitates expanding the number of I/O interfaces.
