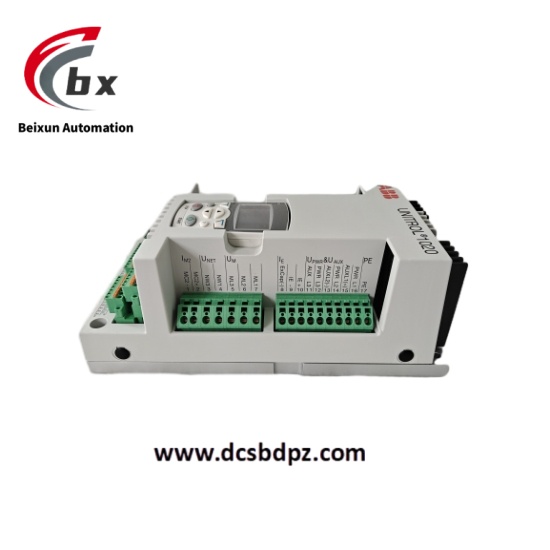

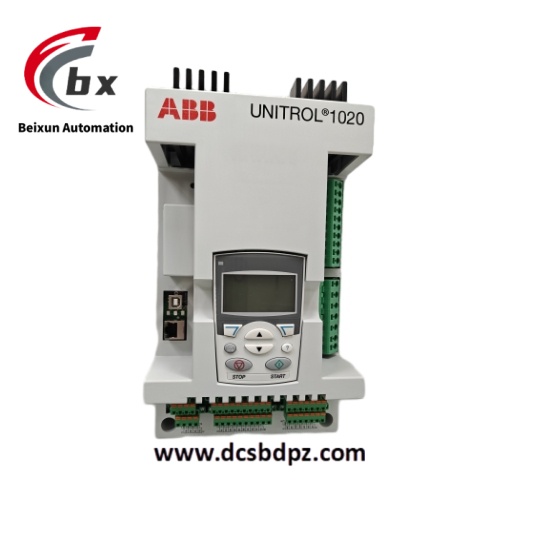

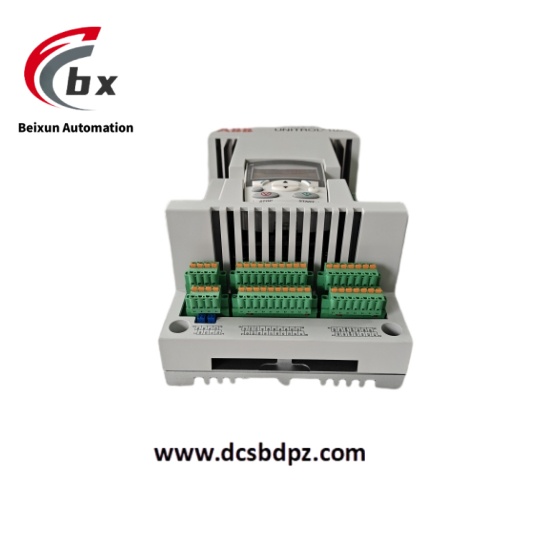

ABB UNITROL1020 3BHE036163R6106 Excitation system module
ABB UNITROL1020 3BHE036163R6106 is a powerful and compact indirect excitation system. As a member of the UNITROL 1000 series, it is designed for small and medium - sized synchronous generators and industrial machines. Based on advanced microprocessor technology and using IGBT semiconductor devices, it can achieve a current output of up to 10ADC during continuous operation. It has built - in dual - channel support, enabling advanced load sharing among parallel - operating units. It also features rotating diode monitoring, automatic synchronization, and multiple integrated communication options. It is suitable for high - performance operation under harsh conditions and different temperature ranges and fully complies with DNV and UL standards.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UNITROL1020 3BHE036163R6106 Excitation system module
Specific Parameters
- Rated voltage: 85 – 132V, frequency 47 – 63Hz
- Rated current: 0.5A
- Contact current: 0.5A (DC rated value peak AC resistance)
- Contact switch: 200VDC peak
- Weight: 2.9 kg
- Shipping weight: 3.3 kg
- Operating temperature range: -40°C to 85°C
- Vibration resistance level: 27G/2ms
- Protection class: IP65
- Communication interfaces: Supports communication protocols such as MODBUS TCP and RS485
- Regulation types: All available regulation types including AVR (Automatic Voltage Regulation), FCR (Field Current Regulation), PF (Power Factor Regulation), VAR (Reactive Power Regulation), and limiters
- Rotating diode monitoring: Supports rotating diode monitoring (RDM) function
- Load sharing: Can achieve reactive load sharing through RS485
Product Performance
- Reliable operation: Adopts a fully – sealed structure and industrial – grade components, which can resist high – dust and high – humidity erosion. It can operate stably in harsh industrial environments, ensuring 99.9% operational availability.
- Precise control and regulation: Advanced microprocessor technology and IGBT semiconductor devices, combined with various regulation types, achieve precise control of parameters such as voltage and current of synchronous generators and industrial machines.
- Efficient load sharing: Built – in dual – channel support enables efficient and advanced load sharing in parallel – operating units, improving the overall operating efficiency of the system.
- Intelligent monitoring and diagnosis: Features rotating diode monitoring function, which can monitor the status of key components of the equipment in real – time and support fault self – diagnosis, facilitating the timely detection and resolution of problems.
- Convenient communication connection: Supports multiple communication protocols such as MODBUS TCP and RS485, facilitating data interaction with other devices and systems and enabling centralized monitoring and management.
