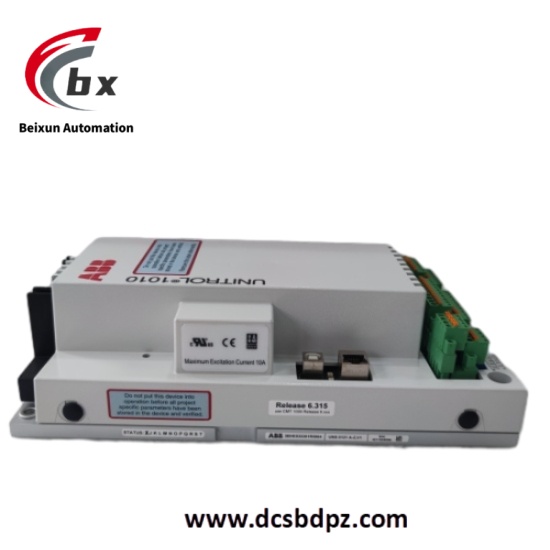

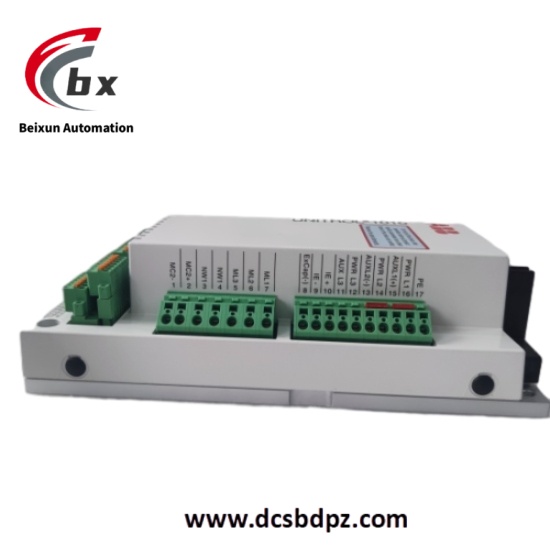

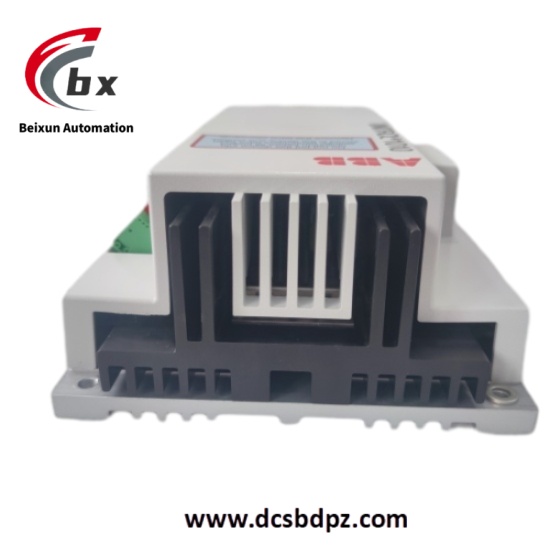

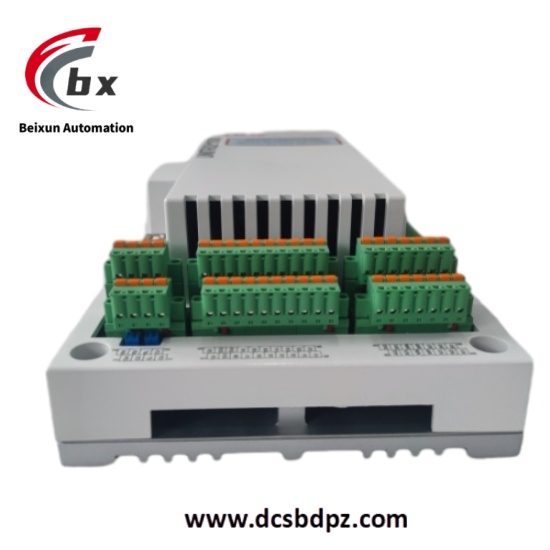

ABB UNITROL1010-0003BASIC 3BHE035301R0003 Automatic voltage regulator
ABB UNITROL1010 - 0003BASIC 3BHE035301R0003 is an Automatic Voltage Regulator (AVR) designed specifically for small and medium-sized synchronous generators and industrial motors. It uses advanced microprocessor and IGBT semiconductor technologies to precisely regulate voltage and ensure the stable operation of motors, playing a crucial role in the fields of industrial automation and power systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UNITROL1010-0003BASIC 3BHE035301R0003 Automatic voltage regulator
Specific Parameters
- Power supply voltage: 50–300 VDC / 60–265 VAC, 50/60 Hz
- Output current: Maximum 10 ADC (continuous operation)
- Voltage regulation accuracy: ±0.5%
- Response time: ≤10 ms
- Communication interfaces: Ethernet (Modbus/TCP, 10/100 Mbps), RS485, USB
- Control modes: Automatic Voltage Regulation (AVR), Reactive Power Regulation (VAR), Power Factor Regulation (PF), Manual Excitation Current Regulation
- Protection functions: Overvoltage, undervoltage, overexcitation, loss of excitation, rotating diode monitoring
- Operating temperature: -40°C to +60°C (5%–95% humidity, non-condensing)
- Protection class: IP20 (for installation in control cabinets)
- Weight: 2.5KG
- Dimensions: 202530cm
Product Performance
- Precise voltage regulation: With advanced technology, the voltage regulation accuracy reaches ±0.5%, effectively stabilizing the grid voltage and reducing the impact of voltage fluctuations on equipment.
- Fast response: The response time is ≤10 ms. It can quickly respond to sudden load changes or grid fluctuations, ensuring the stability of motor operation.
- Multiple control modes: Supports automatic voltage regulation, reactive power regulation, power factor regulation, and manual excitation current regulation, adapting to different working conditions.
- Reliable protection mechanism: Equipped with protection functions such as overvoltage, undervoltage, overexcitation, loss of excitation, and rotating diode monitoring to ensure the safe operation of equipment and reduce the probability of failures.
- Good environmental adaptability: It can operate stably in the temperature range of -40°C to +60°C and 5%–95% humidity (non-condensing) environment, adapting to complex industrial environments.
- Convenient communication connection: Through communication interfaces such as Ethernet, RS485, and USB, it can be easily connected to systems such as SCADA and HMI for remote monitoring and management.
