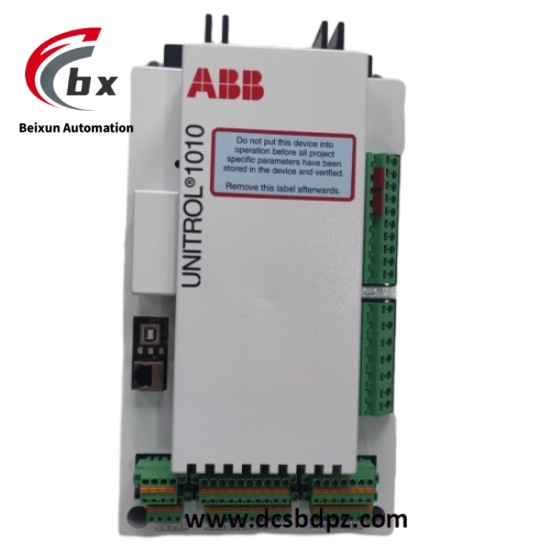

ABB UNITROL1010-0002LIGHT 3BHE035301R0002 Automatic voltage regulator

ABB UNITROL1010-0002LIGHT 3BHE035301R0002 Automatic voltage regulator

Specific Parameters

• Power Supply Voltage: 50–300 VDC / 60–265 VAC, 50/60 Hz
• Output Current: Maximum 10 ADC (continuous operation)
• Voltage Regulation Accuracy: ±0.5%
• Response Time: ≤10 ms
• Communication Interfaces: Ethernet (Modbus/TCP, 10/100 Mbps), RS485, USB
• Control Modes: Automatic Voltage Regulation (AVR), Reactive – Power Regulation (VAR), Power – Factor Regulation (PF), Manual Excitation Current Regulation
• Protection Functions: Over – voltage, under – voltage, over – excitation, loss of excitation, rotating diode monitoring
• Operating Temperature: -40°C to +60°C (5%–95% humidity, non – condensing)
• Protection Class: IP20 (for installation in control cabinets)
• Weight: Approximately 1.2 kg
• Dimensions: 160 mm x 130 mm x 80 mm

Product Performance

• Precise Voltage Control: Using advanced technology, the voltage regulation accuracy can be controlled within ±0.5%, effectively stabilizing the grid voltage and reducing the impact of voltage fluctuations on equipment.
• Fast – response Characteristics: With a response time of ≤10 ms, it can quickly respond to sudden load changes or grid fluctuations, ensuring the stable operation of motors.
• Multiple Control Modes: Supports multiple control modes such as automatic voltage regulation and reactive – power regulation, and can be flexibly switched according to different working conditions.
• Reliable Protection Mechanism: Equipped with a variety of protection functions such as over – voltage and under – voltage, which can effectively ensure the safety of equipment and reduce the probability of failures.
• Good Environmental Adaptability: It can operate stably in the temperature range of -40°C to +60°C and the humidity range of 5%–95% (non – condensing), adapting to a variety of complex industrial environments.
• Convenient Communication Capability: Through Ethernet, RS485, USB and other interfaces, it can be easily connected to systems such as SCADA and HMI to achieve remote monitoring and management.
