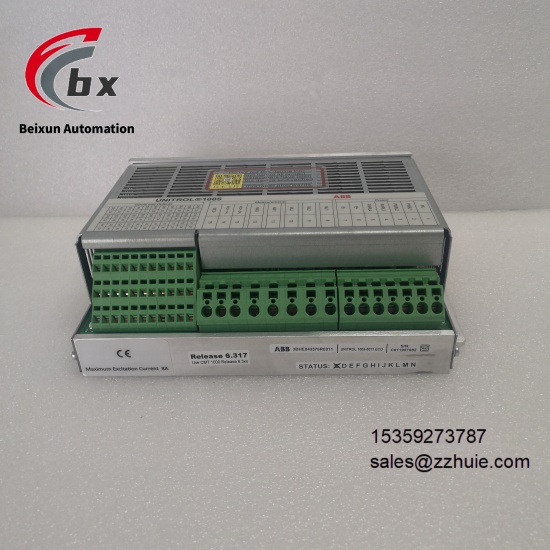

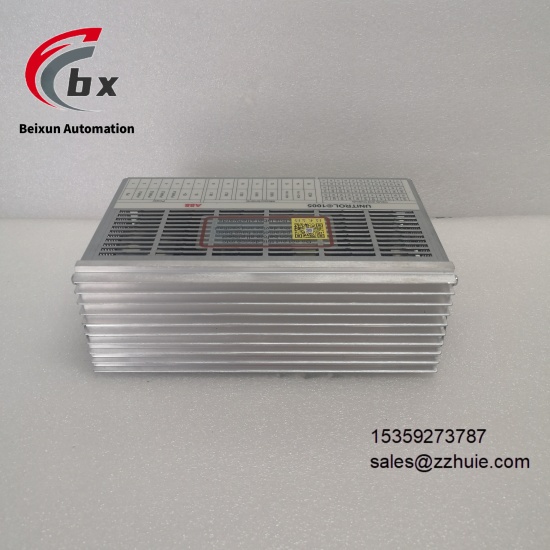

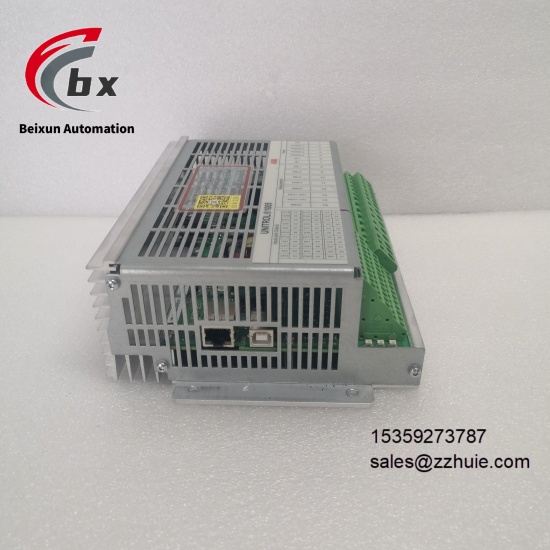

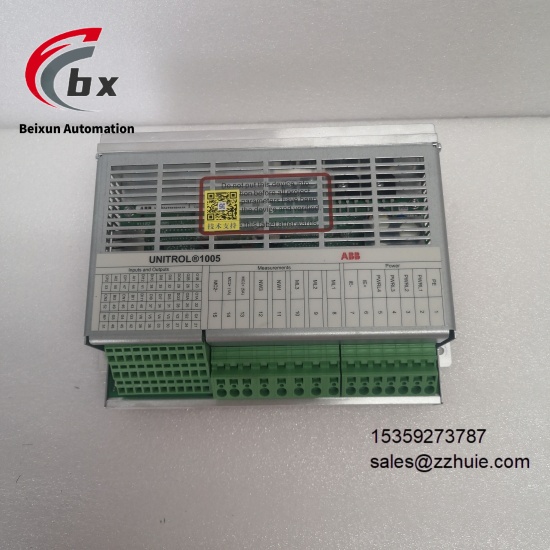

ABB UNITROL 1005-0011 ECO 3BHE043576R0011 Digital automatic voltage regulator
Specific Parameters
Electrical Parameters
AC rated input voltage 16-250V AC, DC rated input voltage 18-300V DCOperating frequency 25-600Hz, adapting to multi-scenario power supply requirementsMaximum continuous field current 5A DC, peak field current 10A DC (70℃ ambient temperature)Communication protocol Supports Modbus TCP, compatible with industrial standard communication architectureCommunication interfaces Equipped with 10/100 Ethernet port, RS-232/RS-485/RS-422 interfaces and USB interfaceProgram capacity 16MB, meeting the storage needs of complex control logicProtection functions Integrated thyristor crowbar firing protection, supporting external fuse trippingMeasurement inputs Supports single-phase/three-phase machine voltage, single-phase machine current, field current and voltage detectionDiagnostic variables Provides more than 35 monitorable diagnostic variables, supporting status trend analysis and alarmsCertification standards Complies with general industrial electrical safety standards, adapting to global power grid applications
Mechanical Parameters
Overall dimensions 12cm×6.5cm×3.6cm, compact design saving installation spaceWeight Approximately 0.1kg, lightweight for on-site deploymentMounting method Supports 35mm standard DIN rail mounting, compatible with industrial control cabinet layoutsConnection method Equipped with DB-9F interface and dedicated connection cable for easy wiringProtection rating IP20, suitable for indoor industrial control environmentsStatus indication Supports visual configuration via CMT 1000 tool, with operation status feedback function
Environmental Parameters
Operating temperature -40℃ to 85℃, stable operation over the entire temperature rangeStorage temperature Withstands extreme temperature and humidity environments, meeting long-distance transportation and storage needsRelative humidity 5%-95% (non-condensing), adapting to humid industrial scenariosVibration resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)Altitude adaptation Up to 2000 meters, derating required for operation above the specified altitude
Product Performance
Excellent regulation accuracy, precisely controlling motor voltage and field current to reduce system fluctuationsStrong software compatibility, sharing source code and simulation models with UNITROL 1010/1020 for multi-scenario expansionHigh commissioning efficiency, CMT 1000 tool provides quick configuration and PID tuning functions to shorten deployment cycleHigh operational reliability, deployed in over 20,000 units worldwide, withstanding harsh industrial environmentsOutstanding energy-saving features, ECO version optimizes power loss and reduces long-term operating costsFast fault response, dynamic Fault Ride Through (FRT) detection function ensures stable operation during grid faultsExcellent integration capability, supporting access to SCADA, enterprise-level systems and cloud platforms for remote monitoringFlexible configuration, offering two software versions, supporting superimposed power factor/reactive power regulation and soft start function
