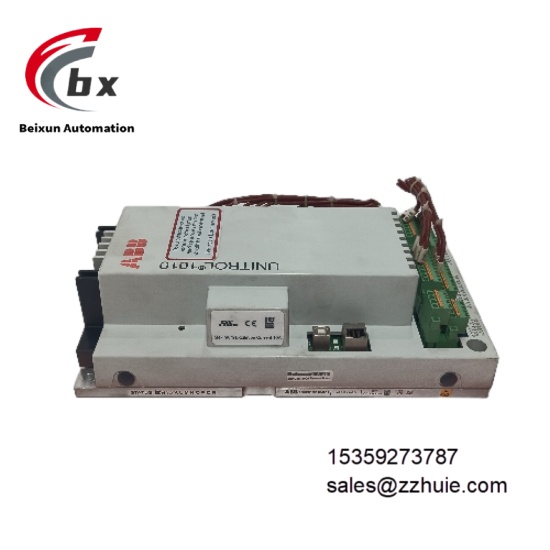

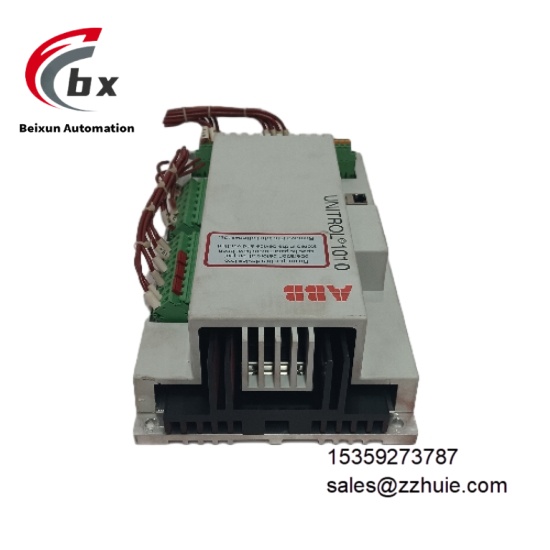

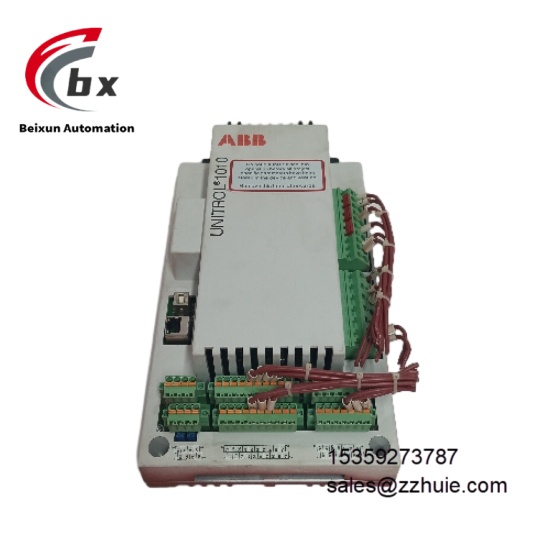

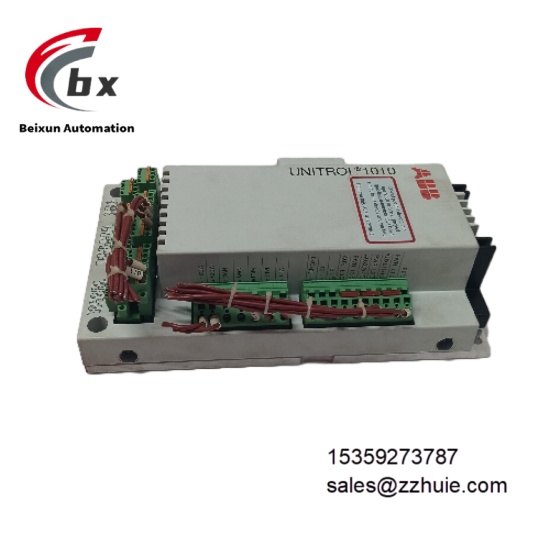

ABB UNIROL1010 3BHE035301R0001 brushless excitation system

Specific Parameters

Electrical Parameters
Input Voltage: 110V~240V AC, frequency 50/60Hz
Output Voltage: 0-100V DC, adjustable
Output Current: Continuous output up to 10A DC
Regulation Accuracy: ±0.25%
Communication Interfaces: Ethernet, USB, RS485, supporting multi-protocol data interaction
Auxiliary Power Supply: 24V DC
Conversion Efficiency: Up to 98%
Protection Functions: Built-in overvoltage, overcurrent and short-circuit protection circuits
Isolation Level: Electrical isolation between strong and weak current circuits, dielectric test voltage 1500V AC
Environmental Parameters
Operating Temperature: -25°C to +60°C (non-condensing)
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Complies with EN 61000-4 series industrial standards
Protection Class: IP65
Altitude Adaptation: Up to 2000m
Vibration Resistance: 10-2000Hz, 1g
Certification Standards: CE, RoHS, DNV, UL
Mechanical Parameters
Dimensions: 230mm×160mm×80mm
Weight: Approximately 5kg
Mounting Method: 19-inch rack mounting
Housing Material: Aluminum alloy, anti-corrosion treatment
Indicators: Power Status (PWR, green), Operation Status (RUN, green), Fault Alarm (ERR, red), Communication Status (COM, yellow)

Product Performance

Adopting 32-bit RISC microprocessor and adaptive PID control algorithm, combined with high-precision A/D converter, it achieves voltage regulation accuracy of ±0.25% with response time ≤10ms, which can quickly adapt to load fluctuations and grid changes. The IGBT power module supports 10A continuous current output, compatible with synchronous generators ranging from 100kVA to 80MVA, meeting the needs of equipment with different power levels.

Built-in dual-channel redundancy design enables precise load sharing between parallel units, with load imbalance ≤1%. Integrated with rotating diode monitoring and automatic synchronization functions, it real-time diagnoses the status of power devices with synchronization error ≤0.5°, ensuring stable grid connection of parallel units. Supports NTP time synchronization and event log recording, fault information is uploaded to the monitoring system within 100ms, with diagnostic coverage ≥99%.

Modular structure facilitates expansion and maintenance, allowing component replacement without shutdown, adapting to 24/7 continuous operation scenarios. Industrial-grade protection design can resist electromagnetic interference and vibration impact in harsh environments, with Mean Time Between Failures (MTBF) ≥600,000 hours.
