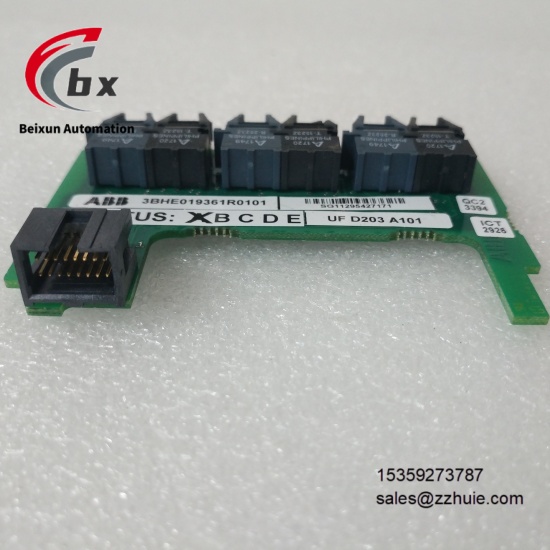

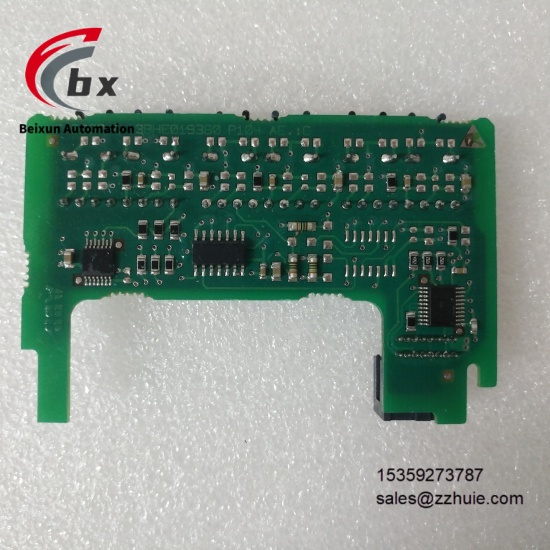

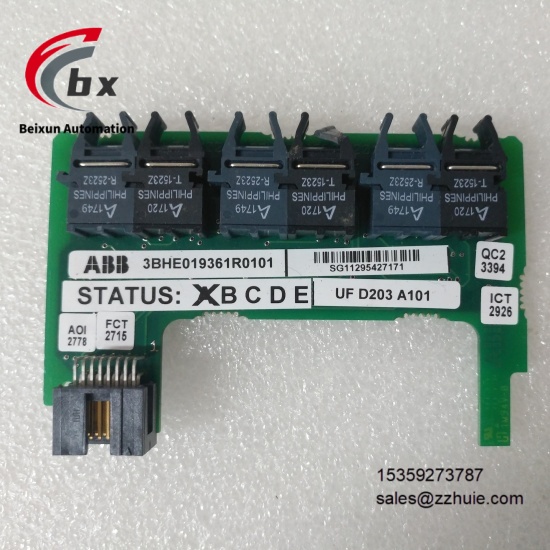

ABB UFD203A101 3BHE019361R0101 Multi functional control module
Specific Parameters
Brand ABB (Swiss Brand)
Product Series ABB UFD203 Series Industrial Control Module
Product Type Industrial-Grade Multi-Functional Control Module (with power supply and signal processing functions)
Model UFD203A101 3BHE019361R0101
Compatible System PLC, Distributed Control System (DCS) and industrial automation equipment
Input Voltage 3AC 380-480V
Output Voltage 3AC 0-480V
Rated Power 22kW
Supply Voltage 24VDC (auxiliary power supply, adaptive range 18VDC to 35VDC)
Frequency Range 0-500Hz
Control Mode Vector Control, V/F Control
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, no condensation
Protection Level IP20
Communication Protocols Supports Modbus RTU, CANopen, DeviceNet, Profibus DP
Signal Types Adapts to 4-20mA current signal, 0-10V voltage signal
Installation Method DIN Rail Mounting, Screw Fixing Mounting
Physical Dimensions 70mm×99mm×60mm (Length×Width×Height)
Physical Weight 0.3kg
Protection Functions Overheating Protection, Overcurrent Protection
Origin Switzerland
Product Performance
It has both stable power supply and high-precision signal conversion capabilities. The wide input range of 3AC 380-480V adapts to the power supply needs of industrial sites, ensuring the stable operation of backend equipment and signal processing.
Supports two control modes: vector control and V/F control, with a wide frequency adjustment range of 0-500Hz, which can accurately adapt to the regulation needs of different industrial loads with excellent control precision.
Integrated with multiple protection functions, it can quickly respond to abnormalities such as overheating and overcurrent, effectively avoiding the risk of equipment damage and ensuring continuous system operation.
Compatible with multiple industrial communication protocols and signal types, it can be seamlessly connected to various automation systems to realize remote monitoring, parameter configuration and data transmission with high integration efficiency.
Wide temperature tolerance of -40℃ to +70℃ and strong anti-interference design can resist harsh industrial environments such as electromagnetic interference, high and low temperatures, with outstanding reliability.
Compact structure with flexible installation methods occupies small space, is convenient for installation and commissioning, and can be expanded and combined according to actual needs to adapt to different control cabinet layouts.
Adopting high-quality components and advanced circuit design, it has low conduction and switching losses, high operation efficiency, and is equipped with intuitive fault indication, reducing maintenance costs and time.
The highly integrated design integrates power regulation and signal processing functions, simplifying the system architecture and improving the overall compactness and maintainability of the equipment.
