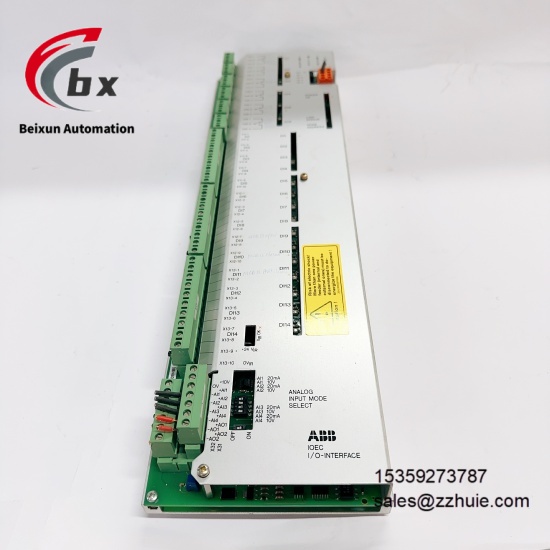

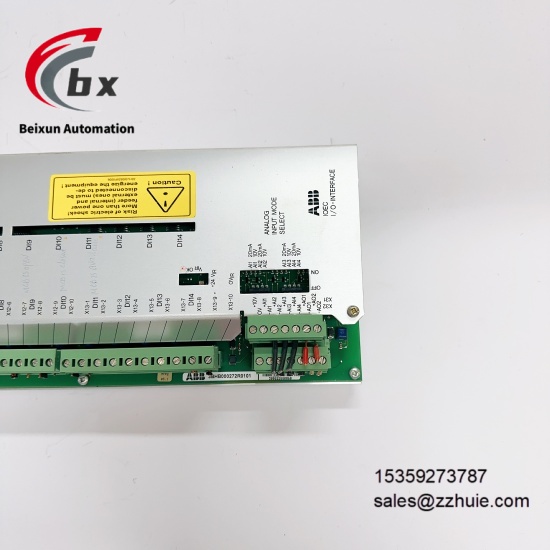

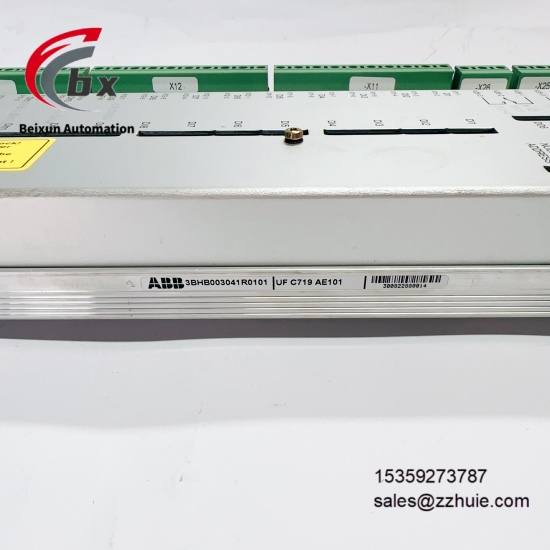

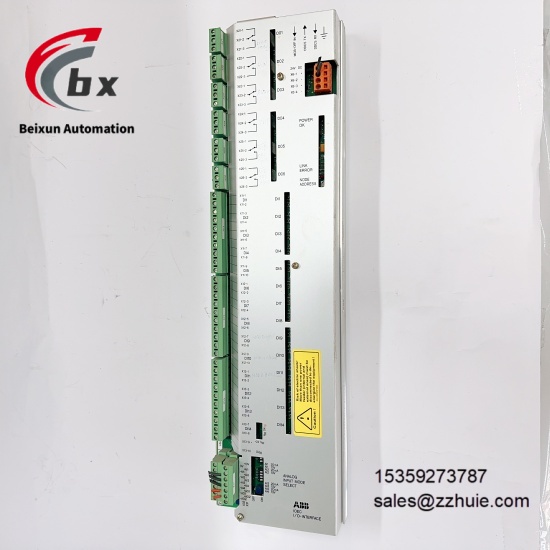

ABB UFC719AE01 3BHB003041R0101 3BHB00072R0101 Mixed signal I/O control module

ABB UFC719AE01 3BHB003041R0101 3BHB00072R0101 Mixed signal I/O control module

Specific Parameters​

Core and Function Parameters​

Product Type Mixed-signal I/O Control Module (Digital + Analog)​

Manufacturer ABB​

Model UFC719AE01, Part Numbers 3BHB003041R0101, 3BHB00072R0101​

Series AC 800M Series​

Processor Configuration Dual-core ARM Cortex-R4 Processor, 1.2GHz Main Frequency​

Storage Capacity 2MB Flash, 1MB RAM​

Input Channels 16-channel Digital Input (24V DC), 8-channel Analog Input (4-20mA)​

Output Channels 16-channel Digital Output (24V DC, 2A per channel), 4-channel Analog Output (4-20mA)​

Expansion Functions Supports High-speed Pulse Output (100kHz), Temperature Sensor Interface (PT100/PT1000) Expansion​

Communication Interfaces Backplane Bus, Profibus DP Interface​

Supported Protocols Profibus DP, Modbus TCP, IEC 61850, DNP3​

Compatible Systems ABB AC 800M DCS System, ABB Ability™ EDCS Substation Monitoring System​

Protection Functions Over-current Protection, Over-voltage Protection, Short-circuit Protection, ESD Protection (±15kV)​

Isolation Design 3-way Isolation (Input-Output-Power), Inter-channel Isolation Voltage 2500V AC​

Diagnostic Functions Channel Fault Diagnosis, Power Fault Diagnosis, Communication Abnormality Diagnosis, Module Self-test​

Installation Method AC 800M Controller 3U Rack Slot Installation​

Certification Standards CE, UL, RoHS, IEC 61131-2​

Status Indication Power Normal (Green LED), Communication Normal (Yellow LED), Fault Alarm (Red LED)​

Electrical and Performance Parameters​

Power Supply Voltage 24V DC±10% (21.6-26.4V DC)​

Power Consumption ≤25W​

Digital Input Response Time ≤1ms​

Analog Input Resolution 16-bit​

Analog Output Resolution 12-bit​

Communication Rate Profibus DP up to 12Mbps​

Data Transmission Delay ≤50ms (IEC 61850 Protocol)​

Control Cycle ≤1ms (Multi-task Parallel Processing)​

Output Load Capacity Digital Output 2A max per channel, Analog Output max load 500Ω​

Common Mode Rejection Ratio ≥90dB (50/60Hz)​

Physical and Environmental Parameters​

Overall Dimensions 280mm×160mm×50mm (L×W×H)​

Weight Approximately 1.5kg​

Operating Temperature Range 0°C to 60°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5%-95% (non-condensing, no dew)​

Protection Rating IP20 (per IEC 60529)​

Housing Material Flame-retardant ABS Plastic (UL94 V-0 Grade)​

Vibration Resistance 10-500Hz, 1.5G (30min per X/Y/Z axis)​

Shock Resistance 25G (11ms, 3 times per X/Y/Z axis)​

Corrosion Resistance ISA-S71.04:G3​

Product Performance​

Dual-core 1.2GHz processor with 2MB Flash storage, control cycle ≤1ms, multi-task parallel processing without delay, extremely strong real-time performance​

Integrates 16-channel digital + 8-channel analog input, 16-channel digital + 4-channel analog output, supports function expansion, adapting to complex control scenarios​

3-way isolation design (2500V AC) + high common mode rejection ratio, effectively resisting industrial electromagnetic interference with strong signal transmission stability​

Compatible with multiple mainstream industrial protocols, seamlessly connecting to multi-brand upper computer systems with excellent system integration compatibility​

2A high current driving capacity per digital output channel, supporting direct driving of small actuators without intermediate relays​

Built-in comprehensive self-test and fault diagnosis functions, enabling precise positioning of fault points, reducing operation and maintenance costs and improving system availability​

0°C to 60°C operating temperature range + G3 corrosion resistance grade, adapting to harsh industrial environments such as dust, humidity and corrosion​

Seamless compatibility with AC 800M DCS system, supporting module hot-swapping, system maintenance and expansion without shutdown​
