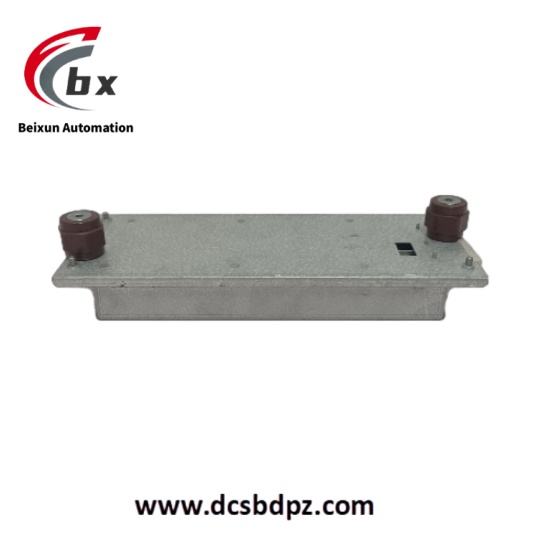

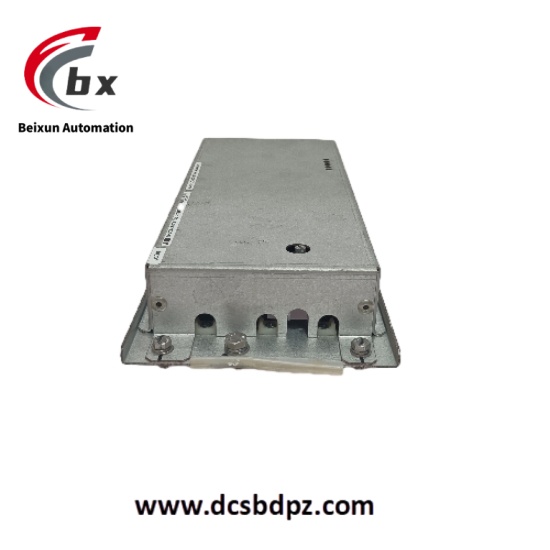

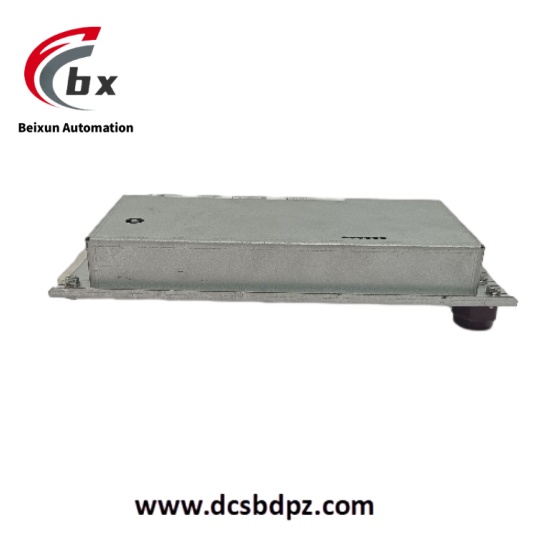

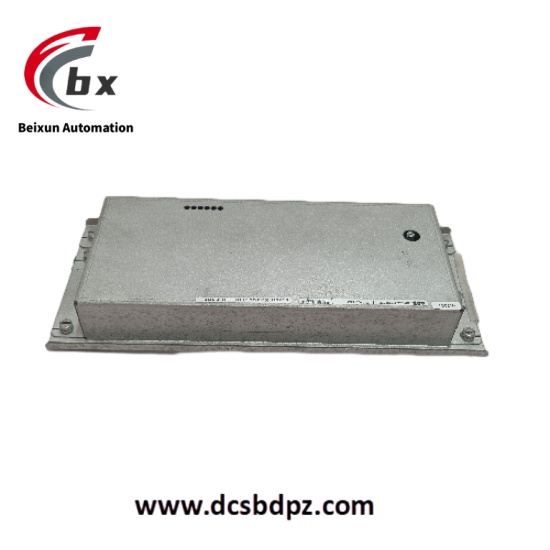

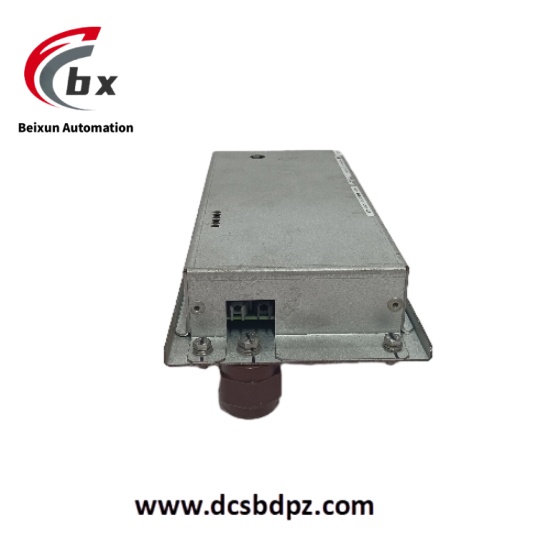

ABB UDC920BE01 3BHE034863R0001 Analog Input Module
¥45,000.00 Original price was: ¥45,000.00.¥35,000.00Current price is: ¥35,000.00.
The ABB UDC920BE01 3BHE034863R0001 is an analog input module that plays a crucial role in data collection within automated control systems. This module can accurately collect analog signals and convert them into digital signals for processing and analysis by the system. It provides fundamental data support for the stable operation of various industrial equipment, ensuring that the equipment can be regulated accordingly based on accurate data feedback.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UDC920BE01 3BHE034863R0001 Analog Input Module
Specific Parameters
- Number of Channels: 8 channels
- Input Signal Types: Supports voltage inputs such as 0 – 10V, 2 – 10V; also supports current inputs such as 0 – 20mA, 4 – 20mA
- Input Resistance: For current input, the input resistance is 250Ω (including PTC resistor); for voltage input, the input resistance is 290kΩ
- Resolution: 12 – bit
- Isolation Characteristics: The 8 – channel group is isolated from ground
- Over – voltage Protection: The voltage input can withstand an over – voltage or under – voltage of at least 30V DC
- Short – circuit Protection: The current input can withstand a short – circuit to the transmitter supply of at least 30V DC without damage, and current limiting is achieved through a PTC resistor
- Dimensions: 119mm x 102mm x 45mm
- Weight: 0.2kg
- Operating Temperature Range: 0°C to +55°C (storage temperature is -40°C to +70°C)
- Humidity Range: 5% to 95%, non – condensing
- Protection Level: IP20
- Pollution Degree: Degree 2
- Electrical Safety Standards: Complies with IEC 61131 – 2, UL 61010 – 1, UL 61010 – 2 – 201 standards
- Hazardous Area Certification: Complies with C1 Div 2 CULus, C1 Zone 2 CULus, ATEX Zone 2 standards
- Marine Certification: Certified by ABS, BV, DNV – GL, LR
- EMC Standards: Complies with EN 61000 – 6 – 4, EN 61000 – 6 – 2 standards
- Over – voltage Category: Complies with IEC / EN 60664 – 1, EN 50178 standards
- Equipment Category: Class I according to IEC 61140 (earth – protected)
- Maximum Ambient Temperature: 40°C (104°F) when vertically mounted in a compact MTU, and 55°C (131°F) under normal conditions
- RoHS Compliance: Complies with Directive / 2011 / 65 / EU (EN 50581 : 2012)
- WEEE Compliance: Complies with Directive / 2012 / 19 / EU
Product Performance
- High – Precision Signal Collection: The 12 – bit resolution ensures high – precision collection of analog signals, capable of accurately capturing subtle changes in signals, providing accurate data for the system, and guaranteeing the accuracy of equipment control.
- Reliable Electrical Protection: Equipped with comprehensive over – voltage, under – voltage, and short – circuit protection functions, it can effectively cope with complex electrical environments, protecting the module itself and connected equipment from abnormal electrical conditions, and improving the stability and reliability of system operation.
- Good Environmental Adaptability: It can operate stably within a wide temperature and humidity range, adapting to various industrial environment conditions. It has passed strict protection level certifications and various environmental standard certifications and can operate reliably in different scenarios.
- Multi – signal Type Support: It is compatible with a variety of common analog input signal types, has strong versatility, is convenient to connect with different types of sensors and devices, and meets the diverse needs of industrial applications.
- Communication Compatibility: The input can withstand HART communication, facilitating communication and data interaction with other devices that support the HART protocol, which is conducive to building a more complex and efficient automated communication network.
