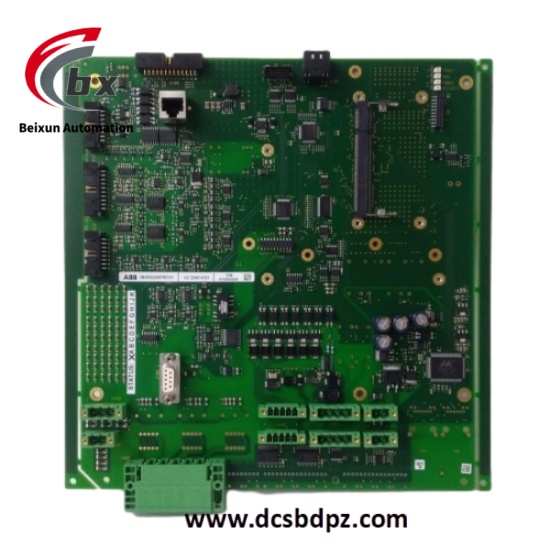

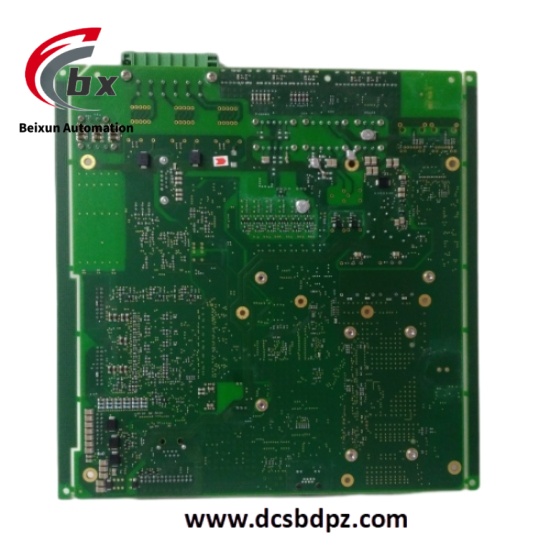

ABB UCD240A101 3BHE022287R0101 DC power module
ABB UCD240A101 3BHE022287R0101 is a DC power supply module designed for industrial automation systems to provide stable DC power for various modules and equipment in the control system. This module can convert the input AC voltage into the required DC voltage, with overcurrent, overvoltage and short-circuit protection functions, which can ensure the safe operation of downstream equipment under voltage fluctuations or abnormal conditions, and is a reliable power supply component in industrial control systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UCD240A101 3BHE022287R0101 DC power module
Specific Parameters
- Input voltage: AC 110-240V
- Output voltage: DC 24V
- Output current: 10A
- Efficiency: ≥90%
- Ripple voltage: ≤50mVp-p
- Protection functions: Overcurrent protection, overvoltage protection, short-circuit protection
- Operating temperature range: -10°C to +50°C
- Storage temperature range: -40°C to +70°C
- Protection class: IP20
- Dimensions: 120mm×80mm×100mm
- Weight: 0.8kg
- Installation method: DIN rail mounting
- Certification standards: Compliant with CE, UL certifications
Product Performance
- Stable power output: High output voltage accuracy and ripple voltage ≤50mVp-p, which can provide stable power for control system equipment and reduce the impact of voltage fluctuations on sensitive electronic components.
- Efficient energy conversion: Efficiency ≥90%, reducing power loss, reducing heat generation of the module itself, extending service life, and reducing system operating energy consumption.
- Comprehensive protection mechanism: Integrates overcurrent, overvoltage and short-circuit protection functions. It can respond quickly and cut off the output in case of abnormal conditions, preventing damage to downstream equipment and improving system safety.
- Wide temperature adaptability: Stable operation in the operating temperature range of -10°C to +50°C, adapting to temperature changes in industrial sites, ensuring continuous power supply in complex environments.
- Convenient installation and maintenance: Supports DIN rail mounting, compact structure, small space occupation, easy to integrate into control cabinets, and status indicators can intuitively display operating status, facilitating fault diagnosis.
