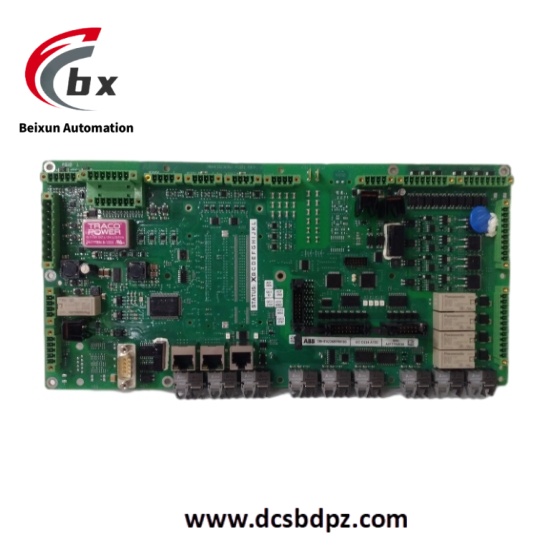

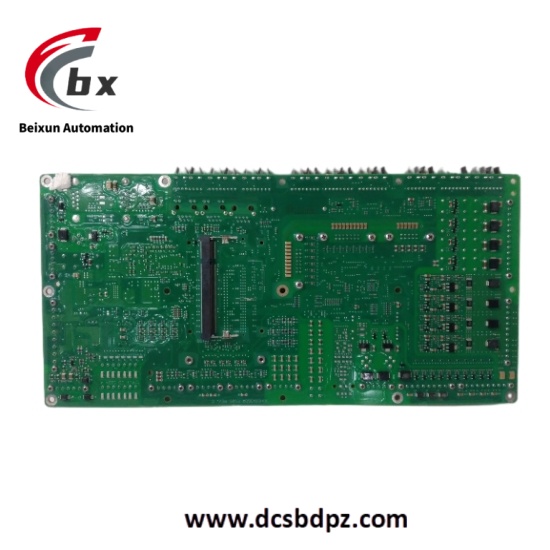

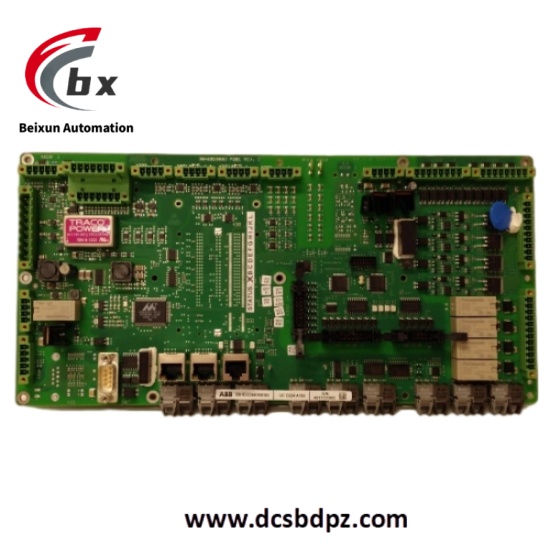

ABB UCD224A103 3BHE023681R0103 3BHE023682P201 DC power module
ABB UCD224A103 3BHE023681R0103 3BHE023682P201 is an industrial-grade DC power supply module designed for industrial automation control systems to provide stable DC power for various control modules, sensors and actuators. The module features a wide voltage input range, adaptable to different power grid environments, and integrates multiple protection functions to ensure the safe operation of downstream equipment, serving as a reliable power supply solution in industrial control fields.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UCD224A103 3BHE023681R0103 3BHE023682P201 DC power module
Specific Parameters
- Input voltage: 85-264V AC
- Output voltage: 24V DC
- Output current: 10A
- Output power: 240W
- Efficiency: ≥92%
- Ripple and noise: ≤120mVp-p
- Protection functions: Overcurrent protection, overvoltage protection, short-circuit protection, overtemperature protection
- Operating temperature range: -25°C to +70°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 150mm×100mm×60mm
- Weight: 1.2kg
- Installation method: DIN rail mounting
- Certification standards: Compliant with CE, UL, cUL certifications
Product Performance
- Stable output capability: Output voltage accuracy within ±1%, ripple and noise ≤120mVp-p, providing clean power for sensitive electronic devices and reducing signal interference.
- Efficient energy operation: Efficiency ≥92% reduces energy loss, the module generates little heat, and can work stably for a long time under high load.
- Comprehensive safety protection: Multiple protection mechanisms respond quickly to abnormalities, and overtemperature protection automatically shuts off output when the module temperature exceeds 70°C to prevent equipment damage.
- Wide environmental adaptability: -25°C to +70°C wide temperature operating range adapts to extreme industrial environments, maintaining reliable operation in dusty, vibrating scenarios.
- Convenient system integration: DIN rail mounting design saves space, compatible with mainstream industrial control cabinet layouts, and status indicators display real-time operation status for quick diagnosis.
