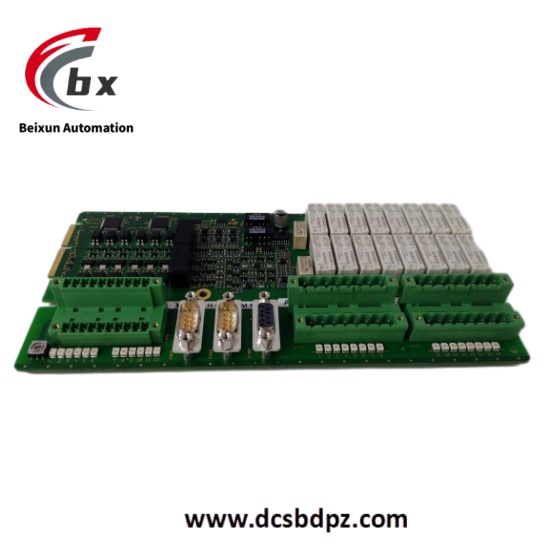

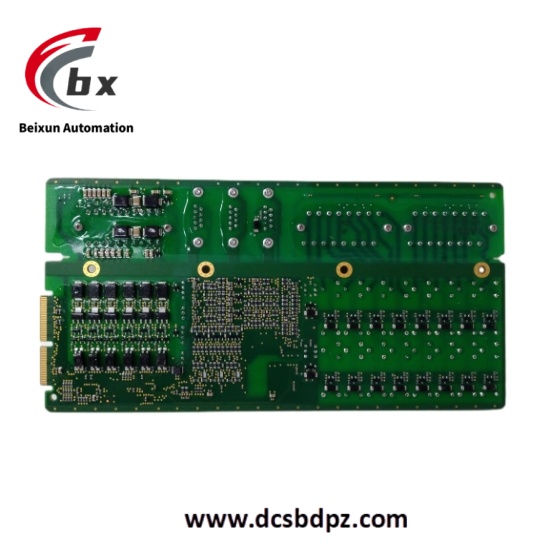

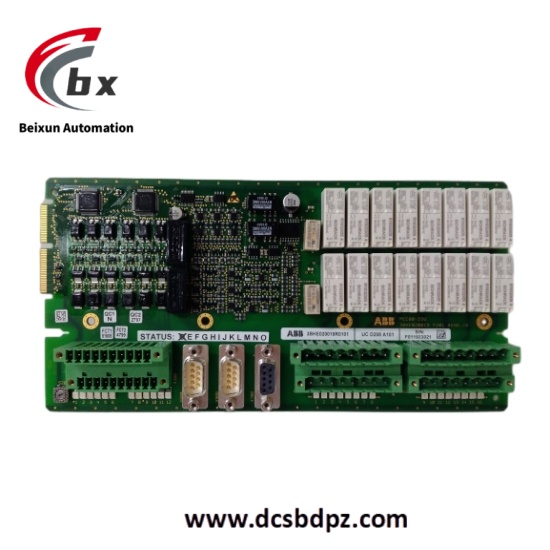

ABB UCD208A101 3BHE020018R0101 DC power module
ABB UCD208A101 3BHE020018R0101 is a DC power module, mainly used in industrial automation systems to provide stable DC power for control modules, sensors and other equipment. The module can convert AC input voltage into stable DC output, with efficient energy conversion capability and multiple protection functions, ensuring safe and stable operation of downstream equipment in complex industrial environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UCD208A101 3BHE020018R0101 DC power module
Specific Parameters
- Input voltage: 100-240V AC
- Output voltage: 24V DC
- Output current: 8A
- Output power: 192W
- Efficiency: ≥90%
- Ripple voltage: ≤100mVp-p
- Protection functions: Overcurrent protection, overvoltage protection, short-circuit protection, overtemperature protection
- Operating temperature range: -10°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 120mm×80mm×50mm
- Weight: 0.6kg
- Installation method: DIN rail mounting
- Certification standards: Compliant with CE, UL certifications
Product Performance
- Stable output: The output voltage accuracy is controlled within ±1%, with low ripple voltage, which can provide stable power for sensitive electronic equipment and reduce the impact of voltage fluctuations on equipment.
- Energy efficiency: Efficiency ≥90%, low power conversion loss, reducing system operating energy consumption, while reducing heat generation of the module itself and extending service life.
- Multiple protections: Integrates overcurrent, overvoltage, short-circuit, overtemperature and other protection functions. It can respond quickly when abnormal conditions occur, cut off the output, and protect downstream equipment from damage.
- Environmental adaptability: It can operate stably in the operating temperature range of -10°C to +60°C, adapt to temperature changes in industrial sites, and ensure continuous power supply under different environmental conditions.
- Convenient installation: Adopts DIN rail mounting method, compact structure, small space occupation, easy to integrate into the control cabinet, and the status indicator can intuitively display the operating status, facilitating fault diagnosis.
