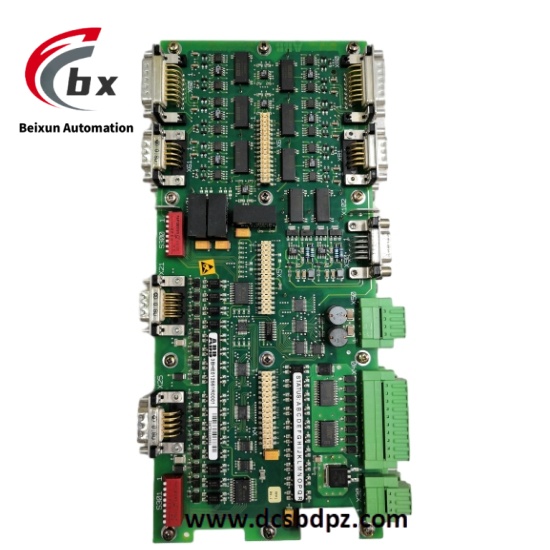

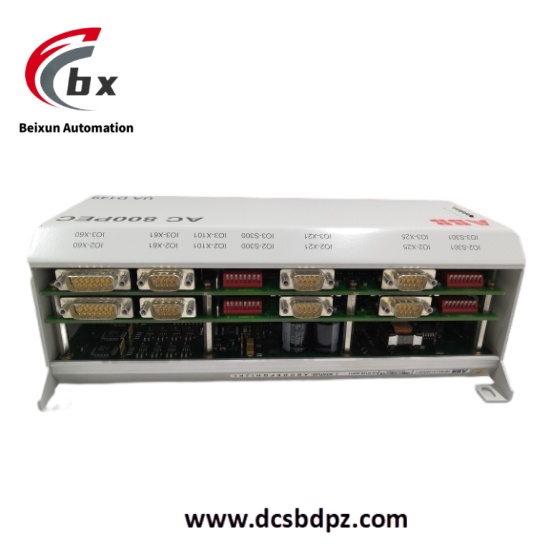

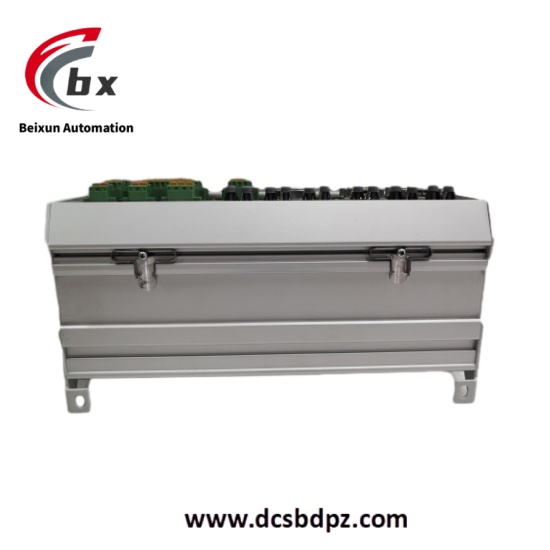

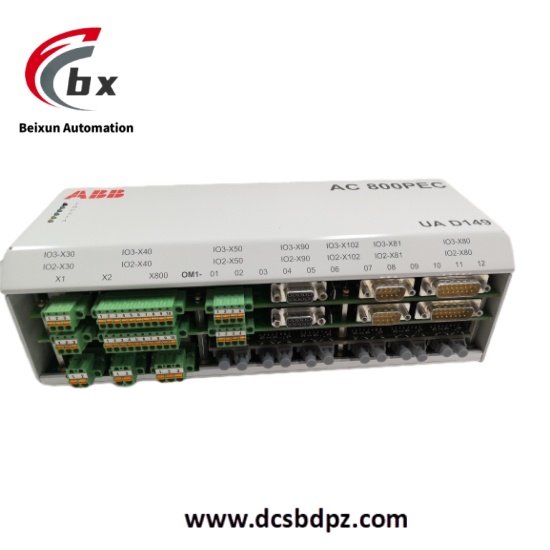

ABB UAD149A0011 3BHE014135R0011 Digital I/O module

ABB UAD149A0011 3BHE014135R0011 Digital I/O module

Specific Parameters

• Power supply voltage: 24V DC
• Input/output points: 32 points (digital)
• Scan cycle: 25μs
• Analog accuracy: 12 bits
• Digital accuracy: 1 bit
• Input/output signal type: TTL level
• Communication interfaces: Supports RS232, RS485, CAN bus
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +85°C
• Protection class: IP67
• Dimensions: 145mm×100mm×45mm
• Weight: Approximately 0.8kg
• Material: Aluminum alloy

Product Performance

• High-speed signal processing: 25μs scan cycle enables real-time response for industrial control scenarios.
• High-precision acquisition: 12-bit analog and 1-bit digital accuracy ensure signal transmission reliability.
• Wide temperature stability: -25°C to +70°C operating range adapts to extreme industrial environments.
• Multi-layer protection design: IP67 rating resists dust and liquid ingress, enhancing system durability.
• Flexible communication capabilities: Supports RS232, RS485, CAN bus for seamless integration with other devices.
• Integrated control functions: Combines motion control, servo drive, and PLC logic to simplify system architecture.
