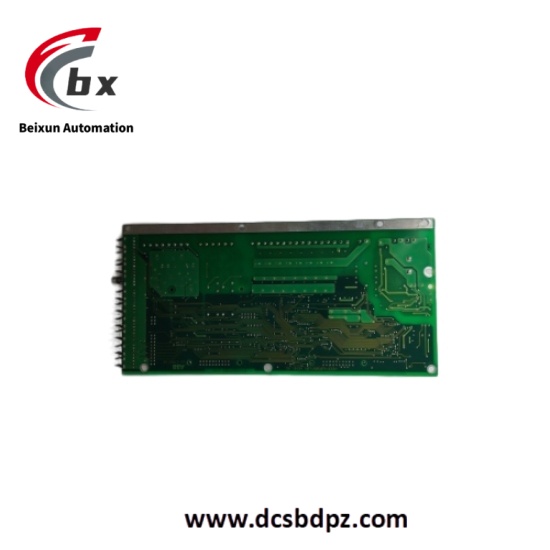

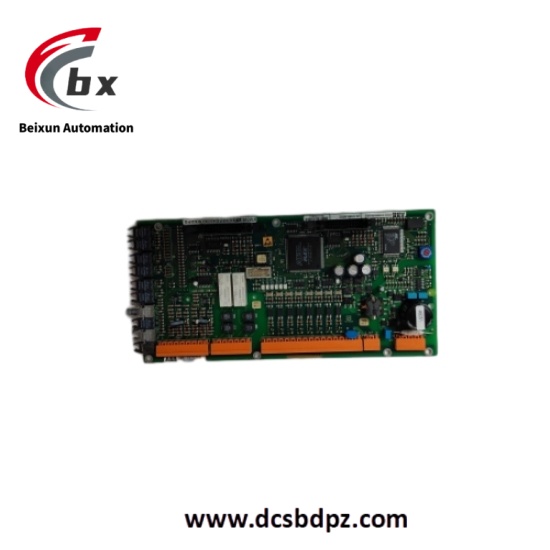

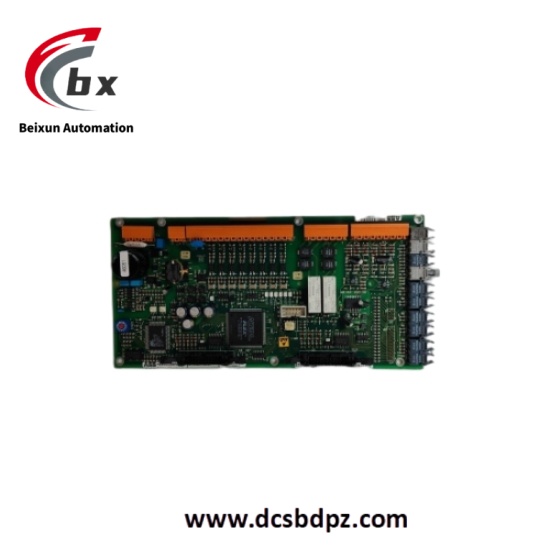

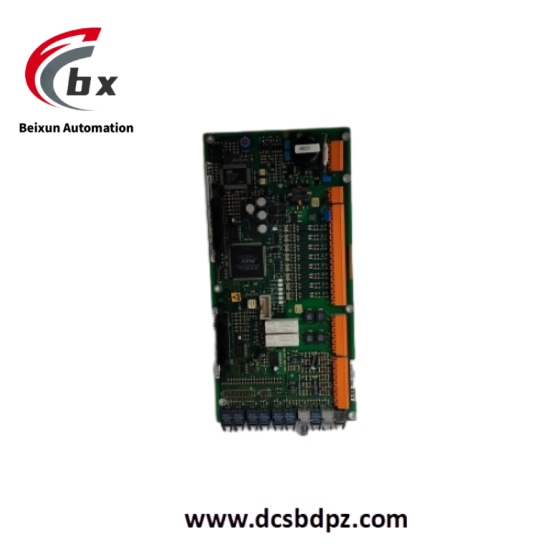

ABB UAC389AE02 HIEE300888R0002 Controller module

ABB UAC389AE02 HIEE300888R0002 Controller module

Specific Parameters

• Power supply voltage: 24V DC±20%
• Processing speed: High-speed logic processing for real-time control
• Communication protocols: Modbus, PROFIBUS, Ethernet/IP, TCP/IP
• Operating temperature range: -20°C to +60°C
• Storage temperature range: -40°C to +85°C
• Protection class: IP65 (dust and liquid ingress protection)
• Dimensions: 100mm×70mm×25mm
• Installation method: DIN rail or wall mounting
• Processor: 32-bit RISC dual-core processor
• Memory: 256KB RAM + 512KB Flash
• I/O interfaces: Analog input/output, digital input/output, serial ports, Ethernet
• Control accuracy: 0.025% (voltage/current regulation)

Product Performance

• High-precision control: Advanced excitation control algorithm achieves 0.025% voltage/current regulation accuracy, meeting strict requirements of power systems and high-voltage frequency converters.
• Real-time communication: Supports multi-protocol high-speed communication, ensuring seamless integration with PLC and DCS systems with data transmission delay <2ms.
• Wide environmental adaptability: IP65 protection and -20°C to +60°C operating range ensure stable operation in harsh industrial environments with dust and vibration.
• Modular expansion: Supports various I/O module extensions, allowing flexible configuration of analog, digital, and high-speed communication interfaces.
• Multi-layer safety protection: Integrates overcurrent, overvoltage, and overtemperature protection, automatically cutting off output in case of abnormalities to safeguard equipment and personnel.
