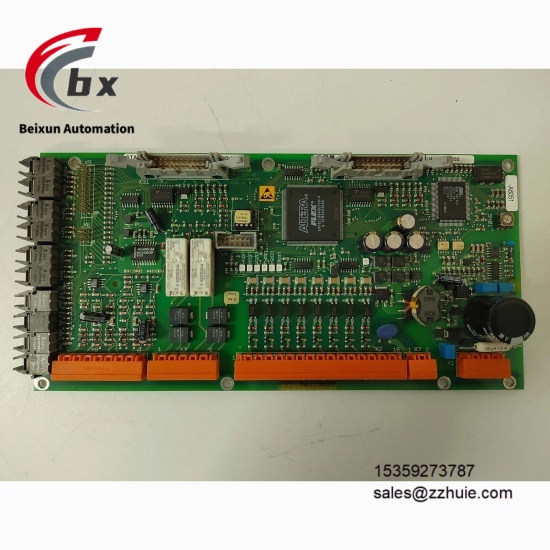

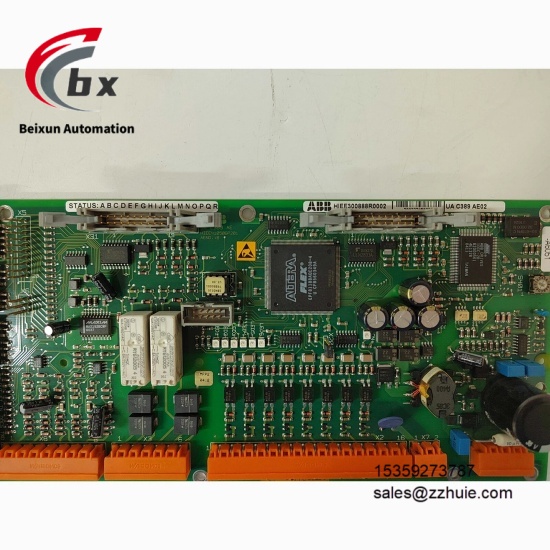

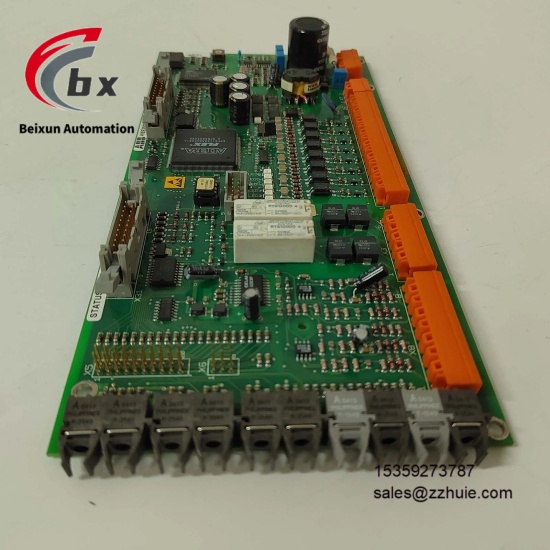

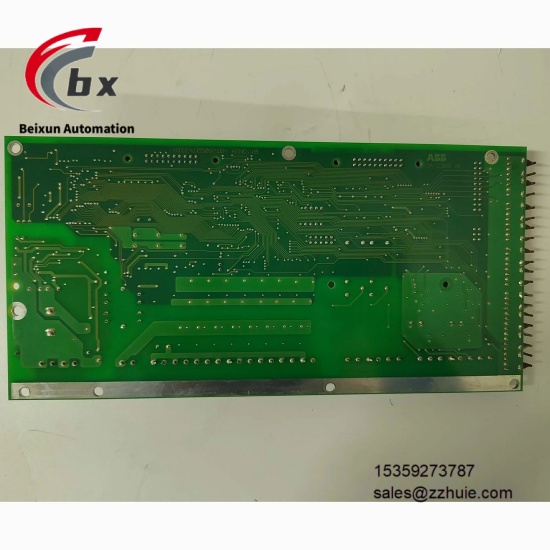

ABB UAC389 HIEE410506P104 Programmable Logic Control Module

ABB UAC389 HIEE410506P104 Programmable Logic Control Module

Specific Parameters

Brand ABB (Swiss Brand)

Product Series Advant OCS Controller Series UAC389 Sub-series

Product Type Embedded Programmable Logic Controller (PLC) Module

Model UAC389 HIEE410506P104

Core Processor 32-bit RISC Processor, 667MHz Clock Speed

Storage Capacity 256KB RAM, 512KB Flash Memory

Supply Voltage 24VDC±20%

Input Current Maximum 5mA

Output Voltage 0-10VDC

Output Current Maximum 500mA

Logic Instruction Processing Speed 25 seconds per thousand instructions

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -55℃ to +85℃

Protection Level IP20

Physical Dimensions 100mm×70mm×25mm

Physical Weight Approximately 0.3kg

Supported Protocols Modbus, Profibus, TCP/IP, Ethernet/IP

Installation Method Threaded Wiring

Housing Material Aluminum Alloy

Protection Functions Overvoltage Protection, Overcurrent Protection, Undervoltage Protection

Product Performance

32-bit high clock speed processor combined with sufficient storage capacity realizes high-speed logic operations and mass program storage, and the instruction processing speed of 25 seconds per thousand instructions meets the requirements of real-time control without instruction delay.

Integrated with multiple control modes and advanced excitation control algorithms, it can accurately regulate motor operation and power parameters, adapt to constant current and constant voltage control needs in complex industrial processes, with a control accuracy of 0.025%.

Modular structure and redundant design improve system scalability and reliability, support flexible expansion of digital/analog I/O modules, redundant communication interfaces ensure stable data transmission, and single module failure does not affect the operation of the overall system.

Compatible with multiple mainstream industrial communication protocols, supports open OPC server communication, can be seamlessly integrated with ABB automation equipment and third-party PLC, DCS systems, simplifying the network management of distributed architecture.

Industrial-grade protection and aluminum alloy housing design have excellent anti-electromagnetic interference, anti-dust and corrosion resistance capabilities, and the wide temperature operating range adapts to harsh industrial environments, enabling long-term continuous trouble-free operation.

Built-in complete protection mechanism can real-time monitor voltage and current abnormalities and quickly trigger protection commands to avoid equipment damage, while supporting online diagnosis and fault troubleshooting, reducing operation and maintenance costs.
