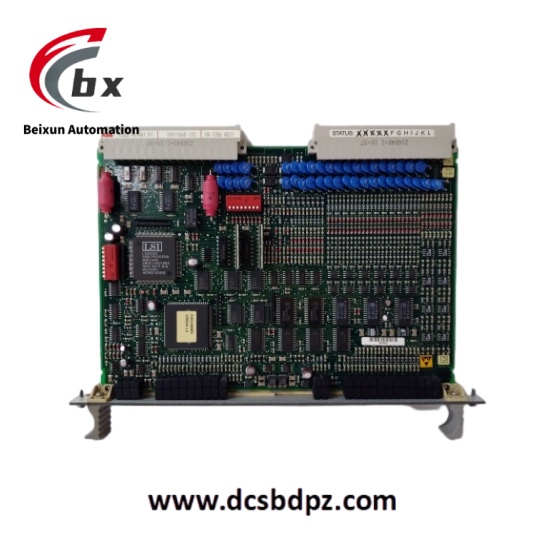

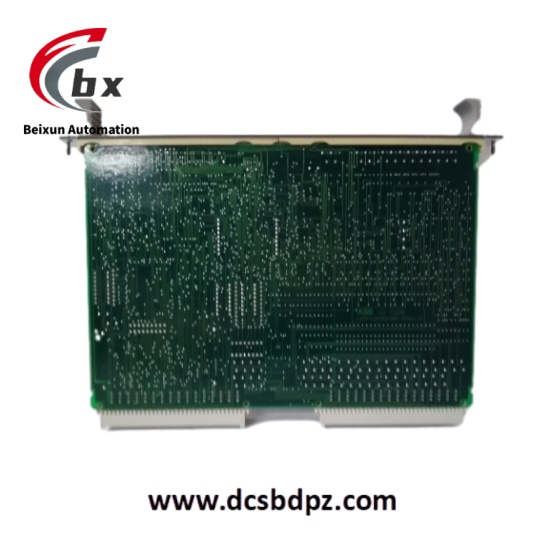

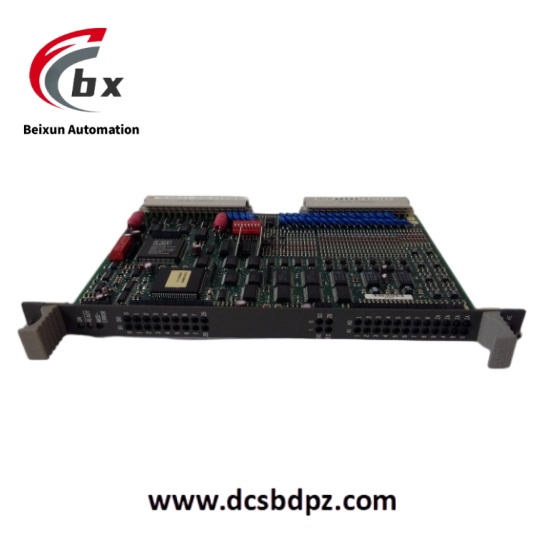

ABB UAC326AE01 HIEE401481R1 Analog input/output module
ABB UAC326AE01 HIEE401481R1 is an industrial-grade analog input and output module, designed for industrial automation control systems to connect various analog sensors and actuators. The module has functions of signal isolation, amplification and conversion, which can convert weak signals from on-site sensors into standard industrial signals and transmit them to the control system, and at the same time convert output signals from the control system into signals required by actuators, realizing precise monitoring and control of industrial processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB UAC326AE01 HIEE401481R1 Analog input/output module
Specific Parameters
- Number of input channels: 8 analog inputs
- Number of output channels: 4 analog outputs
- Input signal types: 4-20mA, 0-10V, 0-5V, thermocouple (K, J type), thermal resistance (Pt100)
- Output signal types: 4-20mA, 0-10V, 0-5V
- Input accuracy: ±0.1% full scale
- Output accuracy: ±0.2% full scale
- Power supply voltage: 24V DC±10%
- Power consumption: Maximum 12W
- Operating temperature range: -25°C to +70°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Dimensions: 160mm×100mm×60mm
- Weight: 0.6kg
- Isolation voltage: 2500V AC between input, output and power supply
- Communication interfaces: PROFINET, Modbus RTU
Product Performance
- High-precision signal conversion: Input accuracy reaches ±0.1% full scale, output accuracy ±0.2% full scale, which can accurately capture and transmit tiny signal changes, providing precise data support for industrial control.
- Wide signal compatibility: Supports multiple analog input and output signal types, can be directly connected to thermocouples, thermal resistors, pressure sensors and other equipment without additional conversion components, improving system integration flexibility.
- Stable and reliable operation: Stable operation in the wide temperature environment of -25°C to +70°C, 2500V AC isolation design effectively resists electromagnetic interference, ensuring the stability and accuracy of signal transmission.
- Fast data transmission: Realizes high-speed data interaction with the control system through PROFINET and other communication interfaces, with short response time, meeting the needs of industrial real-time control.
- Convenient installation and maintenance: Adopts standardized design, can be directly installed on DIN rail, and the module status indicator clearly displays the operating status, facilitating quick troubleshooting and reducing maintenance costs.
