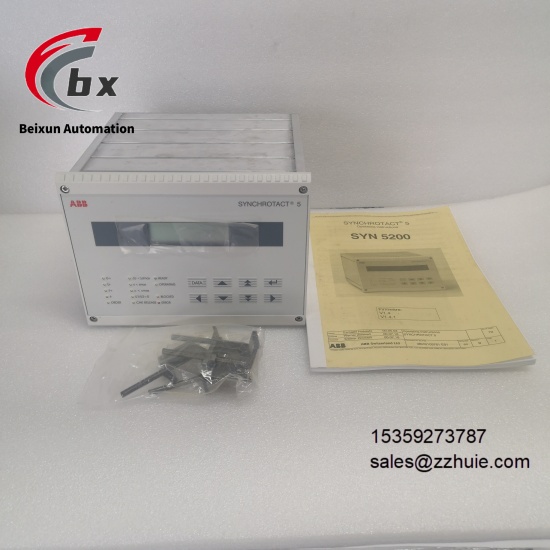

ABB SYNCHROTACT5 3BHB006713R0217 Digital synchronization device
Specific Parameters
Electrical Parameters
Input Voltage Supports 24V DC or 100-240V AC (50/60Hz), providing stable power supply over a wide rangeOperating Frequency Compatible with 50Hz, 60Hz, 16.7Hz three power system frequenciesSynchronization Accuracy ±1ms, ensuring disturbance-free parallel connectionCommunication Protocols Compatible with IEC 61850, Modbus, Profibus, LON, supporting Ethernet remote servicesCommunication Interfaces Equipped with RS-485, Modbus TCP, Profibus interfaces, supporting TCP/IP remote maintenanceProtection Functions Integrated overvoltage, undervoltage, overfrequency, underfrequency protection, and asynchronous closing blocking functionNumber of Synchronizable Circuit Breakers A single device supports synchronization of up to 7 circuit breakers with different requirementsEvent Storage 256 fault/event logs with date and time stampsPower Loss Typical value 24W/35VA for dual-channel redundant systemsInsulation Class 5kVCertification Standards Compliant with IEC protection standards and CE certification
Mechanical Parameters

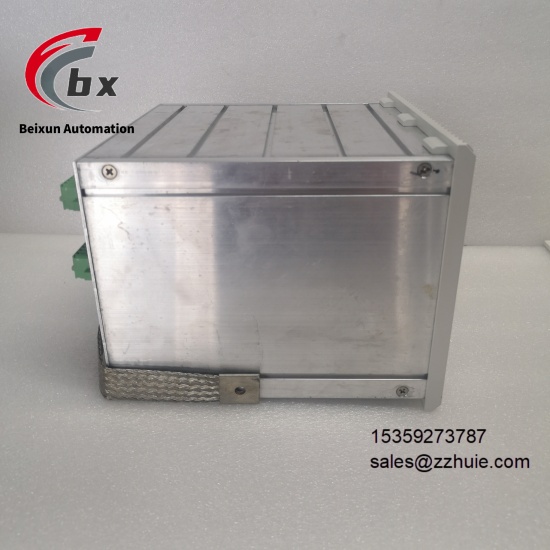

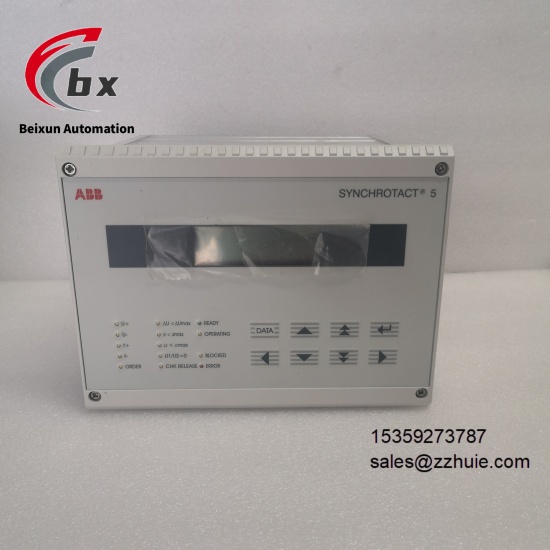

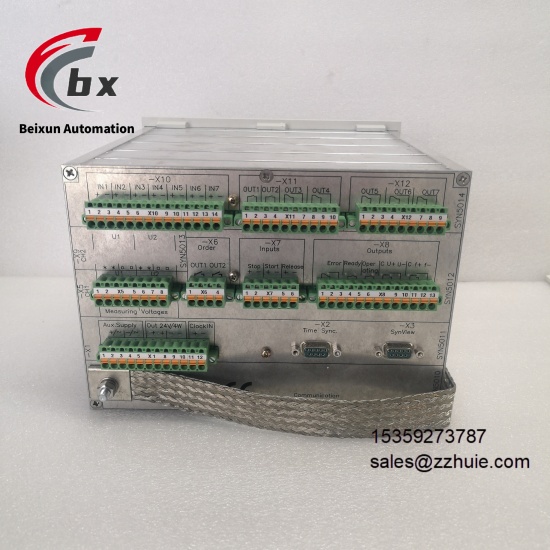

Weight Approximately 3.3kg, suitable for industrial installation scenariosMounting Method Supports 35mm standard DIN rail mounting or panel mountingHousing Material Industrial-grade high-strength material with anti-electromagnetic interference performanceConnection Method Plug-in terminals for easy wiring and maintenanceProtection Rating IP20, suitable for indoor industrial control environmentsStatus Indication Supports visual configuration via SynView PC tool, equipped with LED status prompts
Environmental Parameters
Operating Temperature -20℃ to 60℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5%-95% (non-condensing), adapting to humid industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with IEC 61000 anti-interference standards, low electromagnetic interference
Product Performance
High redundant safety, dual-channel independent design eliminates single-point failures, ensuring continuous and reliable synchronization processPrecise synchronization operation, advanced angle pre-calculation technology realizes optimal phase angle closing of circuit breakers, minimizing inrush currentFlexible scenario adaptation, 7 parameter sets for quick switching, supporting dead bus/dead line parallel operationConvenient commissioning and maintenance, SynView software provides recommended parameters and visual configuration, shortening commissioning cycleStrong system integration, compatible with mainstream industrial buses and digital substation protocols, seamlessly connecting to SCADA systemsExcellent operational stability, industrial-grade component selection, adapting to long-term operation in complex power environmentsGood remote controllability, supporting remote control and maintenance via fieldbus and Internet, reducing operation and maintenance costsClear event traceability, time-stamped event logs facilitating root cause analysis of faults
