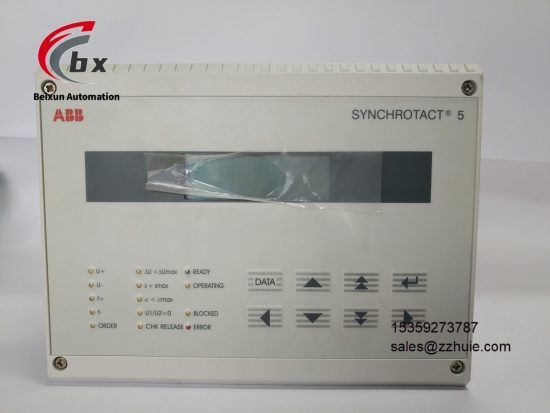

ABB SYN5201a-Z,V217 3BHB006714R0217 AC/DC power module
Specific Parameters
Electrical Parameters
Input Voltage Range 50-130VAC (rated), allowing 0-1.3×Un inputInput Frequency 16²/₃Hz, 50Hz, 60Hz, compatible with multiple power grid standardsAuxiliary Power Supply 24-250VDC, 100-230VAC, stable power supply over wide rangeMeasurement Range Voltage 0-1.3×Un, phase angle -179° to 180°, frequency 10-100HzOutput Type Configurable signal relay output for issuing parallel connection commandsParameter Set Configuration Supports 7 groups of independent parameter sets, adapting to different grid connection scenariosCommunication Protocols Compatible with Modbus, Profibus and other industrial protocols, supporting linkage with DCS systemsSampling Accuracy Voltage measurement error ≤±0.2%, frequency measurement error ≤±0.01HzProtection Features Built-in phase sequence detection, phase loss protection, asynchronous closing prevention, overvoltage protectionCertification Standards Compliant with CE, UL, IEC 61850 standards, meeting power system safety specifications
Mechanical Parameters

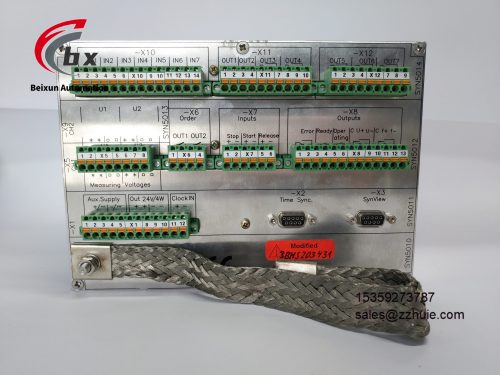

Overall Dimensions 145mm×100mm×75mm, compact design saving control cabinet spaceWeight Approximately 0.8kg, lightweight design facilitating installation and deploymentMounting Method 35mm standard DIN rail mounting, compatible with industrial control cabinet layoutHousing Material Industrial-grade high-strength metal shell, with anti-electromagnetic interference and dustproof performanceConnection Method Plug-in terminals, supporting 2.5mm² wire access, convenient wiringProtection Rating IP20, suitable for indoor industrial control environmentsStatus Indication Equipped with power, operation, synchronization ready and fault LED indicators for visual status monitoring
Environmental Parameters
Operating Temperature -20℃ to 60℃, no performance derating over the entire temperature rangeStorage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5%-95% (non-condensing), adapting to high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, EN 61000 standards, low electromagnetic interference and high anti-interference capability
Product Performance
Excellent synchronization accuracy with precise matching of voltage, frequency and phase angle, grid connection inrush current ≤5% rated currentHigh degree of operational automation, completing parameter adjustment and closing command output automatically without manual interventionFlexible scenario adaptation with 7 configurable parameter sets, meeting grid connection needs of different generator sets and power grid statesComprehensive safety protection with built-in phase sequence detection, phase loss protection and asynchronous closing blocking function, eliminating grid connection accidentsPowerful self-diagnostic capability, real-time monitoring of equipment operating status and grid connection conditions, instant fault information feedbackStrong system compatibility, seamlessly connecting to ABB Symphony Plus DCS and third-party protection equipment, governorsConvenient commissioning and maintenance, supporting remote configuration, parameter modification and data analysis via SinView 5 softwareHigh operational stability with industrial-grade component selection, Mean Time Between Failures (MTBF) ≥800,000 hours
