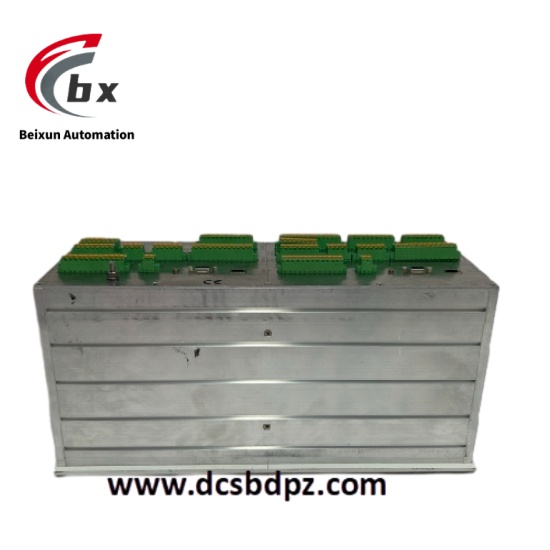

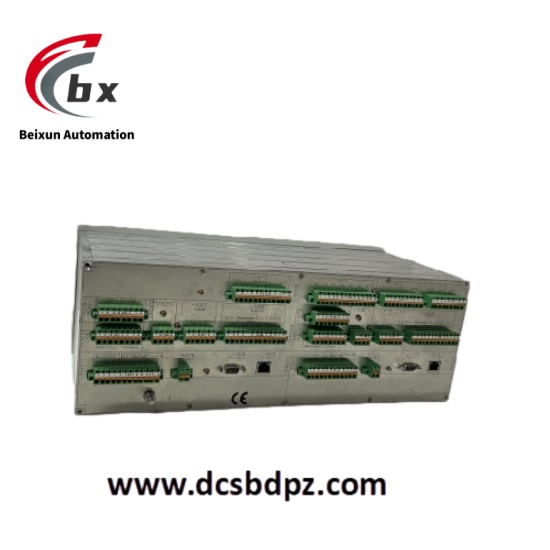

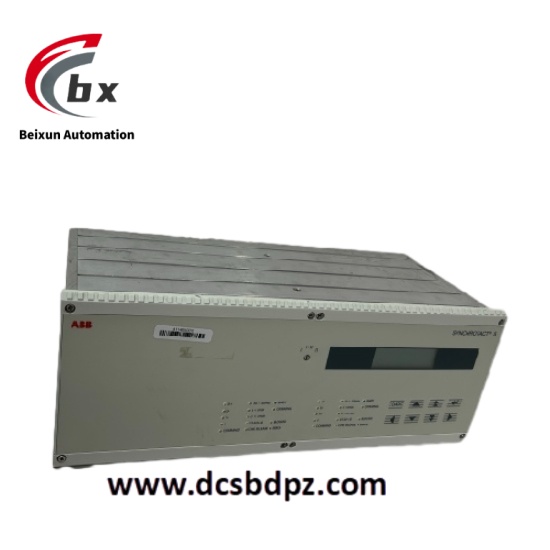

ABB SYN 5302a-Z.V277 3BHB006716R0277 Digital synchronization device
ABB SYN 5302a-Z.V277 3BHB006716R0277 is a highly reliable digital synchronizing device belonging to the Synchrotact® 5 series. It is mainly used for the automatic synchronization and calibration between generators and the grid, as well as between synchronized grids. It adopts a redundant dual-channel architecture, consisting of two microprocessor systems from different manufacturers with different software structures, which greatly improves the system reliability. The device supports efficient data transmission and control through the IEC 61850 communication protocol. It has advanced digital signal processing technology, which can accurately control the speed of the synchronous motor and improve the speed regulation accuracy of the motor. It also supports various communication methods such as LON (Local Operating Network) to achieve remote monitoring and control. It can meet application requirements of different complexity levels, being suitable for single-channel systems and can also be designed as dual-channel systems. Its design complies with the IEC 60255 series standards and ANSI/IEEE C37.90 standards, ensuring the reliability and stability of the equipment.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SYN 5302a-Z.V277 3BHB006716R0277 Digital synchronization device
Specific Parameters
- Rated Frequency Range: 50Hz, 60Hz or 16.7Hz
- Number of Parameter Setting Groups: 7 groups, for flexible configuration to meet different application requirements
- Communication Protocols: Supports IEC 61850 communication protocol, and is also compatible with fieldbus protocols such as Modbus, Profibus, and LON for remote control
- Output: One relay can synchronize up to 7 power circuit breakers with different requirements
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95%, non-condensing
- Protection Level: IP20
- Dimensions (Width×Height×Depth): 225mm×175mm×150mm
- Weight: 2.5kg
Product Performance
- Precise Synchronization Control: Using advanced digital signal processing technology, during generator grid connection or grid synchronization operations, it can accurately match voltage, frequency, and phase angle, achieving fast and accurate synchronization, reducing inrush current during grid connection, and ensuring the stable operation of the power system.
- Highly Reliable Redundant Design: The unique redundant dual-channel architecture, with two independent microprocessor systems. When one channel fails, the other channel can seamlessly take over the work, ensuring continuous system operation, improving the reliability and stability of the system in critical power applications, and reducing the risk of power outages caused by equipment failures.
- Flexible Communication and Remote Management: Supports multiple communication protocols. Through fieldbuses such as LON, it can achieve remote monitoring and control. Operators can remotely and real-timely obtain device operation status information, adjust parameters, and diagnose faults, improving operation and maintenance efficiency and reducing operation and maintenance costs.
- Wide Environmental Adaptability: With an operating temperature range of -25°C to +70°C and a relative humidity of 5% to 95% non-condensing, it can operate stably under different environmental conditions. Whether in cold outdoor substations or high-temperature and high-humidity industrial environments, it can work reliably, reducing the impact of environmental factors on device performance.
- Compliance with Industry Standards: It is designed and manufactured in strict accordance with the IEC 60255 series standards and ANSI/IEEE C37.90 standards, ensuring the consistency and stability of product quality and performance, and meeting the strict requirements of the power industry for equipment reliability and safety.
