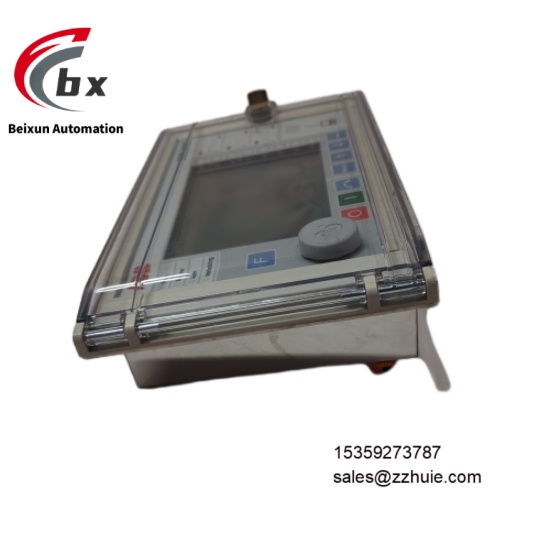

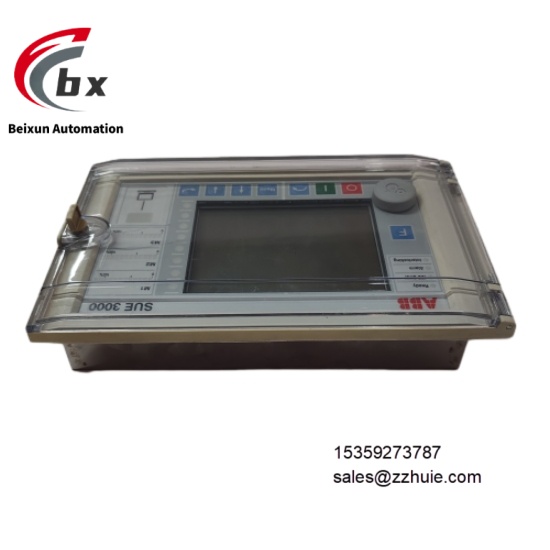

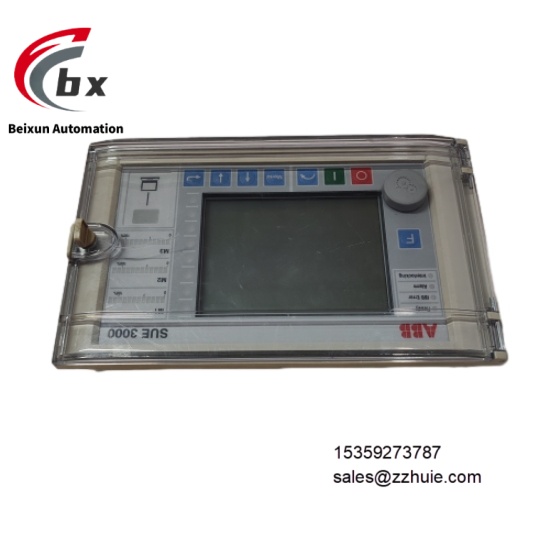

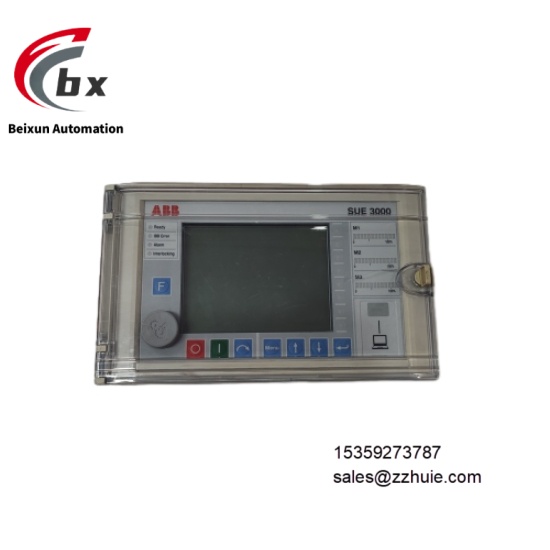

ABB SUE3000 1VCR007346 G0032 Redundant power module

Specific Parameters

Electrical Parameters
Input Voltage: 100-240V AC (50/60Hz), compatible with 24-60V DC
Output Voltage: 24V DC ±0.5%
Output Current: Rated 30A, peak 40A (10s duration)
Redundancy Mode: N+1 redundancy, supporting parallel current sharing of up to 4 modules
Switching Time: Main/standby power switch ≤5ms
Communication Interfaces: Modbus RTU (RS485), Profinet IO (optional)
Protection Functions: Overvoltage protection (28V DC), overcurrent protection, short circuit protection, overtemperature protection, reverse polarity protection
Output Ripple: ≤50mVp-p
Power Consumption: No-load ≤15W, full-load ≤120W
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 (industrial grade), EN 61000-6-4
Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 60mm (W) × 130mm (H) × 220mm (D)
Weight: Approximately 2.8kg
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Bolt-type terminals (compatible with 10-16 AWG wires)

Product Performance

SUE3000 adopts active power factor correction (PFC) circuit with input power factor ≥0.95, adapting to wide-range input voltage and maintaining stable output when grid fluctuates by ±20%. N+1 redundant architecture combined with current sharing control technology results in current imbalance ≤3% between parallel modules; when a single module fails, it automatically exits, ensuring uninterrupted system operation.

Output voltage accuracy is controlled within ±0.5% with load regulation rate ≤0.1%, guaranteeing stable power supply for sensitive electronic equipment. Integrated with LCD display and LED indicators, it real-time shows output voltage, current, temperature and fault status, supporting local configuration via buttons or remote monitoring via bus.

Built-in temperature sensor and intelligent fan speed regulation function: silent operation below 45°C, automatic acceleration for heat dissipation when overheating, ensuring reliable module operation within the wide temperature range of -25°C to 70°C. Mean time between failures (MTBF) ≥400,000 hours, supporting hot-swap replacement without power interruption during maintenance.
