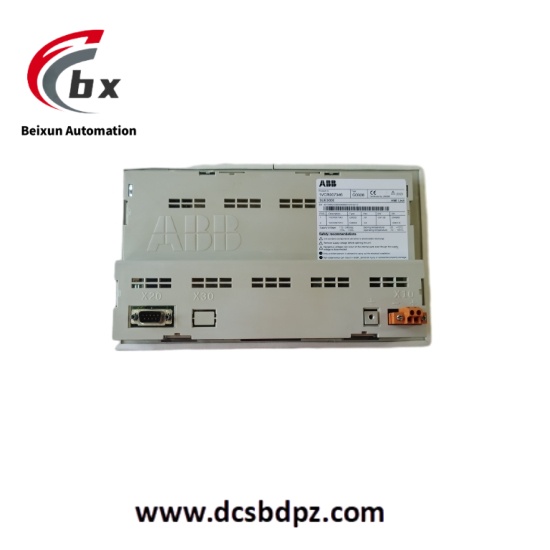

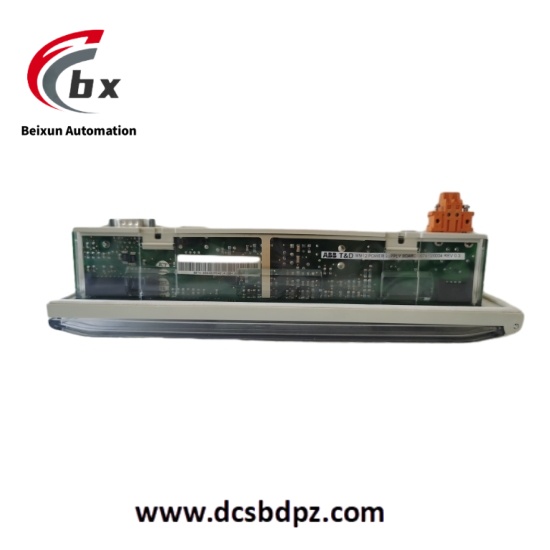

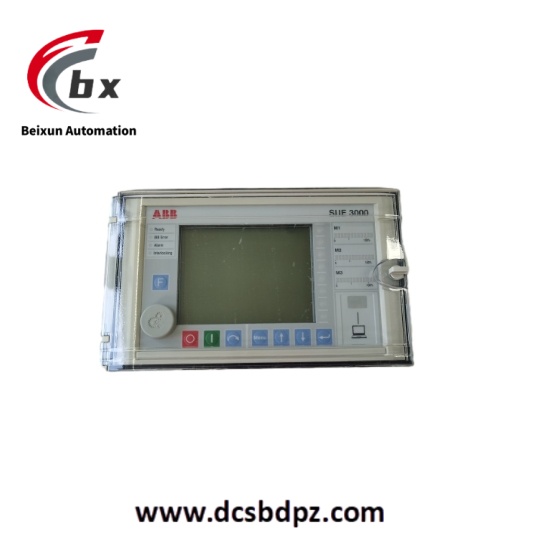

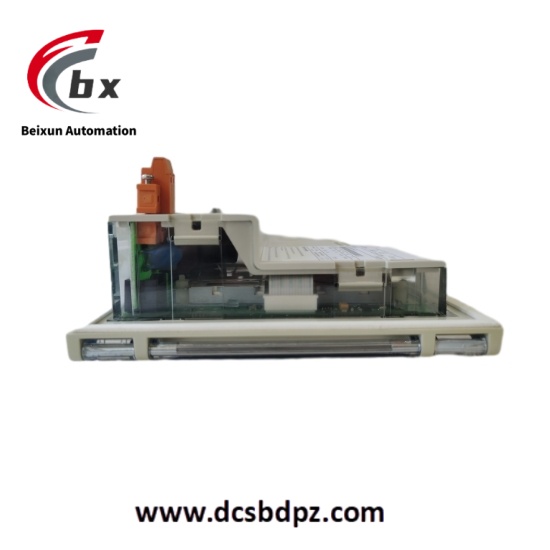

ABB SUE3000 1VCR007346 G0028 High speed motor bus conversion system
ABB SUE3000 1VCR007346 G0028 is a high - speed motor bus transfer system, and its core function is to ensure a continuous and stable power supply for critical loads. During operation, when an abnormality occurs in the main incoming power supply, this product can automatically switch from the main incoming line to the standby incoming line as quickly as possible, thus preventing the interruption of important downstream production processes due to power outages and effectively protecting relevant production links from costly downtime losses. It can be connected to any ABB or non - ABB protection devices and circuit breakers, and is designed to be easily integrated with existing and new switchgear installations.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SUE3000 1VCR007346 G0028 High speed motor bus conversion system
Specific Parameters
- Transfer time: When using high – speed vacuum circuit breakers, a fast switch of 30 ms (1.5 cycles) can be achieved. Under normal circumstances, the typical transfer time is about 100 ms, and the actual duration depends on the circuit breaker operating time, fault detection time, and the status of the relevant incoming lines.
- Input voltage range: Supports a variety of common voltage levels such as 110 – 240VDC and 48 – 90VCD, and can be adapted to different power environments.
- Weight: The net weight of the product is 0.95 kg, and the gross weight after packaging is also 0.95 kg.
- Installation space requirements: The mechanical installation space requirement is small, which is convenient for installation and layout in a limited space.
- Communication protocols: Supports a variety of communication protocols, including iec 61850 – 8 – 1 mms, iec 60870 – 5 – 103, Ethernet interface, Modbus TCP, Modbus RTU, Profibus DP, and ABB spa, facilitating data interaction with different devices.
- Protection functions: It has integrated safety features such as coil monitoring function and decoupling function to ensure the stable operation of the equipment.
- Monitoring functions: Permanently monitors the involved incoming lines, busbars, and circuit breakers, and has a built – in disturbance recorder and watchdog self – monitoring system to keep track of the equipment operation status in real – time.
Product Performance
- Fast switching to ensure power supply: It can complete the main – standby power supply switching in a short time, ensuring the continuity of power supply for critical loads and greatly reducing the risk of production interruption due to power outages.
- Wide adaptation and flexible integration: It can cooperate with various protection devices and circuit breakers, and can be easily integrated into both newly installed switchgear and existing switchgear, with strong compatibility.
- Multiple protections for safety and reliability: The integrated safety protection functions and comprehensive monitoring functions effectively improve the safety and reliability of equipment operation and reduce the probability of equipment failure.
- Diverse communication for smooth data flow: The rich communication protocol support facilitates data interaction with other devices, which is convenient for centralized monitoring and management of the system.
- Low – consumption, high – efficiency, and cost – effective: Compared with static and dynamic UPS systems, there is no energy consumption and maintenance cost, and the investment and operation costs are relatively low, with good economy.
