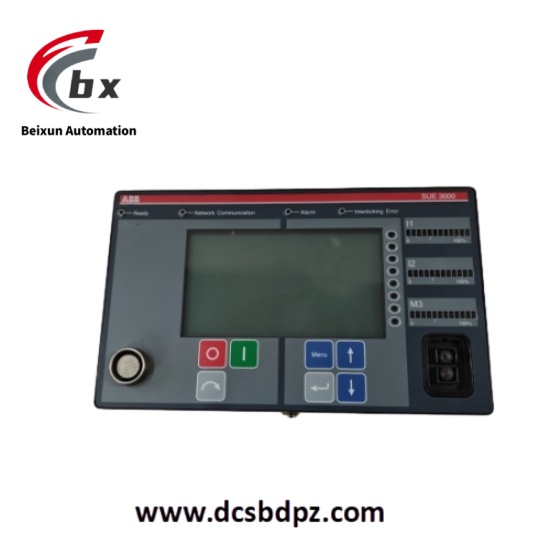

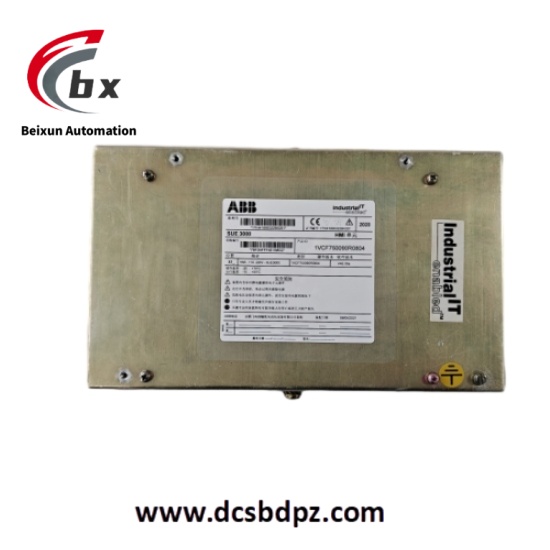

ABB SUE3000 1VCF750090R0804 power quality analyzer

ABB SUE3000 1VCF750090R0804 power quality analyzer

Specific Parameters

• Input voltage: 24V DC (typical), wide range support (18-30V DC)
• Switching time: ≤30ms in fast transfer mode, ≤1200ms in residual voltage transfer mode
• Communication interfaces: Supports Modbus RTU, Profibus DP, Ethernet, etc., with dual Ethernet ports and USB interfacesnew.abb.com
• Display specifications: 7-inch TFT color touch screen with 800×480 pixel resolution and multi-touch support
• Operating temperature range: -40°C to +85°C (wide temperature model), humidity 5%-95% non-condensing
• Protection class: IP67 (optional) or IP20, suitable for harsh industrial environments
• Certifications: Passed CE, UL, RoHS certifications, compliant with Industry 4.0 communication standards

Product Performance

• High-speed switching capability: Utilizes dynamic synchronization technology to complete main-backup power transfer within 30ms, ensuring continuous operation of critical equipment such as motors and control systems.
• Multi-mode redundancy design: Supports four transfer modes—fast transfer, first-in-phase transfer, residual voltage transfer, and time-delay transfer—to adapt to different fault scenarios.
• Intelligent monitoring function: Integrates real-time data acquisition and fault diagnosis algorithms to monitor 12 parameters including bus voltage, frequency, and phase difference, automatically triggering protection actions in case of abnormalities.
• Flexible communication architecture: Dual Ethernet ports enable redundant network connections, compatible with mainstream protocols like Modbus and Profibus, allowing seamless integration into existing SCADA or DCS systemsnew.abb.com.
• High-reliability design: Uses industrial-grade components, tested under -40°C to +85°C wide temperature range, with IP67 models resistant to dust intrusion and 1-meter water immersion.
