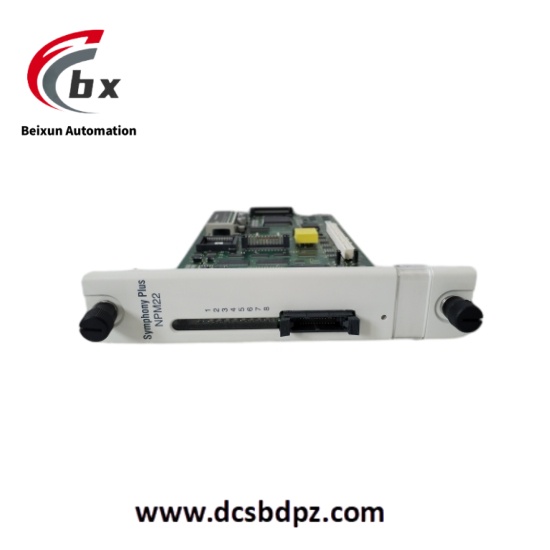

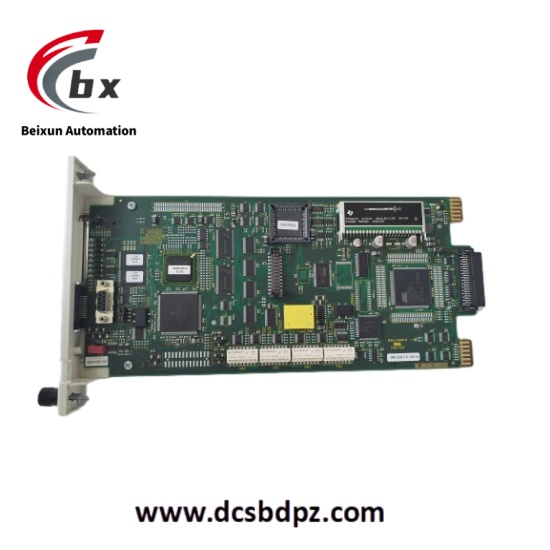

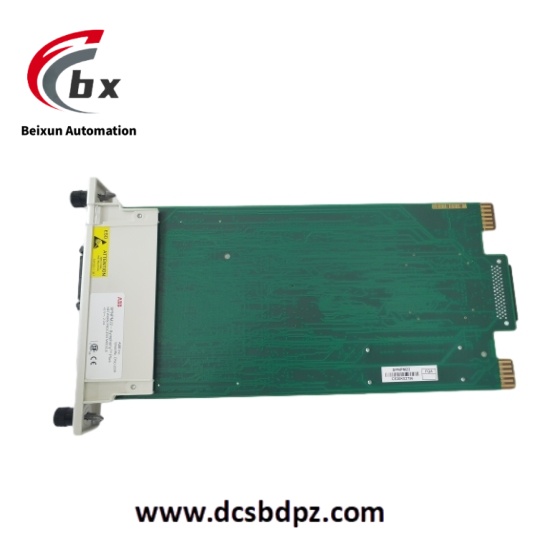

ABB SPNPM22 Power module
ABB SPNPM22 is a power module for industrial automation systems, belonging to ABB's SPN series. This module is designed to provide stable DC power to various components in the control system, converting AC input voltage to DC output to meet the power requirements of different devices. It adopts a compact design, enabling efficient operation in limited installation space, and is equipped with multiple protection functions to ensure the safety of equipment during power fluctuations or load abnormalities.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SPNPM22 Power module
Specific Parameters
- Input voltage：AC 100-240V
- Output voltage：DC 24V
- Output current：Maximum 2.5A
- Efficiency：Typical 85%
- Ripple voltage：≤100mV peak-to-peak
- Operating temperature range：-25°C to +70°C
- Storage temperature range：-40°C to +85°C
- Relative humidity：5%-95% (non-condensing)
- Protection functions：Overcurrent protection, overvoltage protection, short-circuit protection, overheating protection
- Dimensions：Length 120mm, width 60mm, height 30mm
- Weight：Approximately 150g
- Protection class：IP20 (must be installed in a control cabinet)
Product Performance
- Stable output：Adopts high-precision voltage stabilizing circuit with small output voltage ripple, providing stable DC power for control system components and reducing the impact of voltage fluctuations on equipment.
- Efficient conversion：With a typical efficiency of 85%, it can effectively reduce energy loss, reduce heat generation, and improve energy utilization efficiency.
- Multiple protections：Integrates overcurrent, overvoltage, short-circuit, overheating and other protection functions. In abnormal situations, it can quickly cut off the output to protect the module itself and connected equipment from damage.
- Wide temperature adaptation：The operating temperature range covers -25°C to +70°C, adapting to various industrial environments such as cold and high temperature, ensuring reliable operation under extreme temperatures.
- Flexible installation：Compact design with standardized mounting holes, can be easily installed on DIN rails or in control cabinets, adapting to different installation scenarios.
