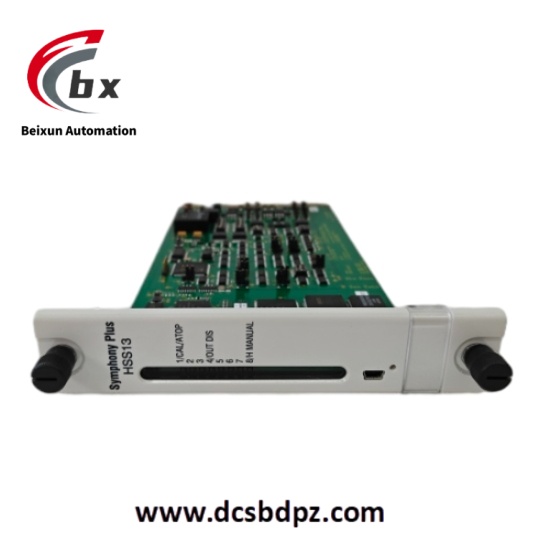

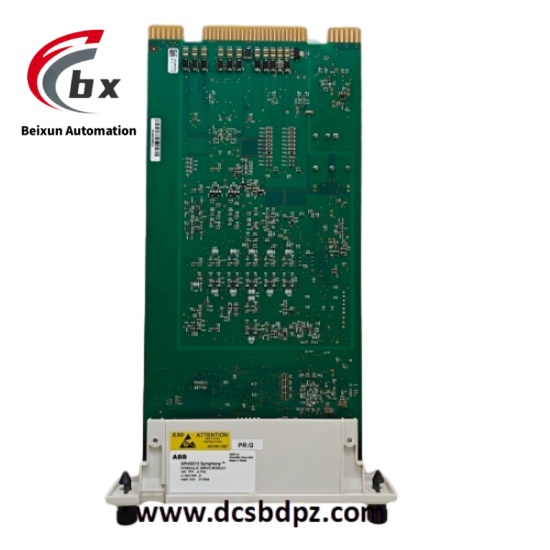

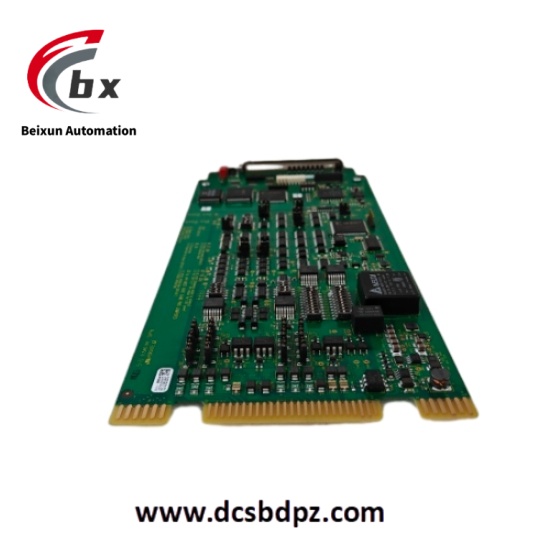

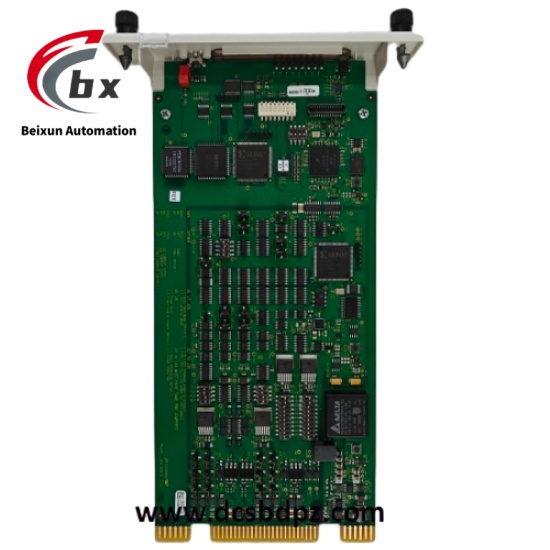

ABB SPHSS13 Hydraulic servo module

ABB SPHSS13 Hydraulic servo module

Specific Parameters​

• Dimensions: 30.5cm (length) × 17.8cm (width) × 3.8cm (height)​
• Weight: 0.2kg​
• Input: 1 input from magnetic pickup, frequency range 3 to 12.5kHz​
• Redundancy configuration: Redundant servo coils, redundant AC or DC LVDT feedback​
• Control modes: Proportional – integral (PI) control mode, proportional – only (P) control mode​
• Operating temperature range: -5°C to +45°C​
• Protection class: IP20​
• Rated voltage: 230V​
• Rated frequency: 50 to 60Hz​

Product Performance​

• High – precision control: With advanced PI and P control modes, it can precisely regulate hydraulic actuators to meet the high – precision control requirements of industrial automation.​
• Reliable operation: The redundant servo coil design greatly improves the reliability and fault tolerance of the system, ensuring continuous and stable operation in critical application scenarios.​
• Flexible measurement and control: Supports both AC and DC LVDT configurations, providing diverse measurement and control solutions according to different application requirements.​
• Adapt to harsh environments: Made of durable materials, it can adapt to an operating temperature range of -5°C to +45°C and operate stably in harsh industrial environments.​
• Compact and easy to integrate: The module is small in size, easy to integrate into existing systems, and will not affect system performance.
