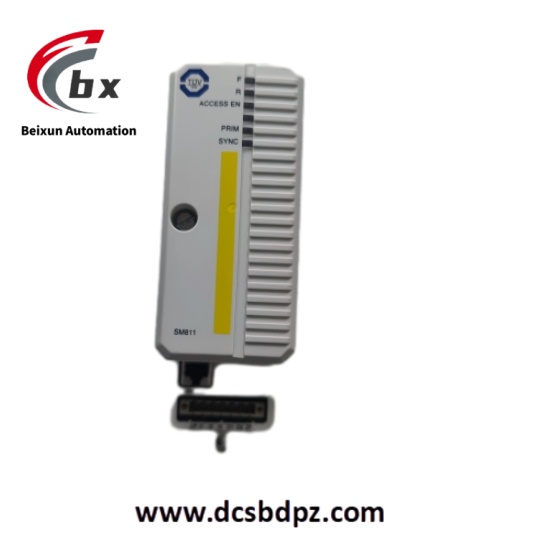

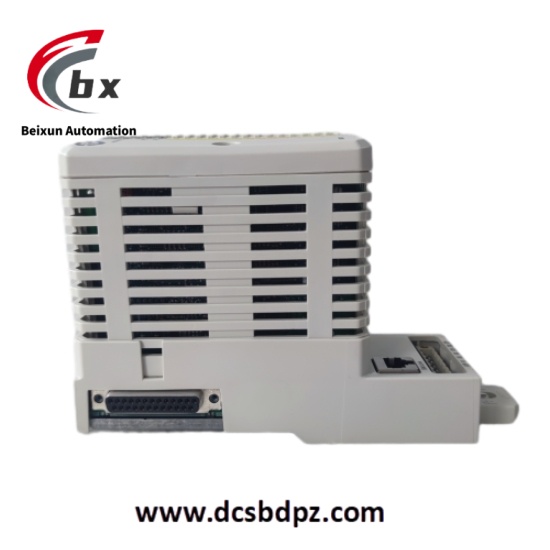

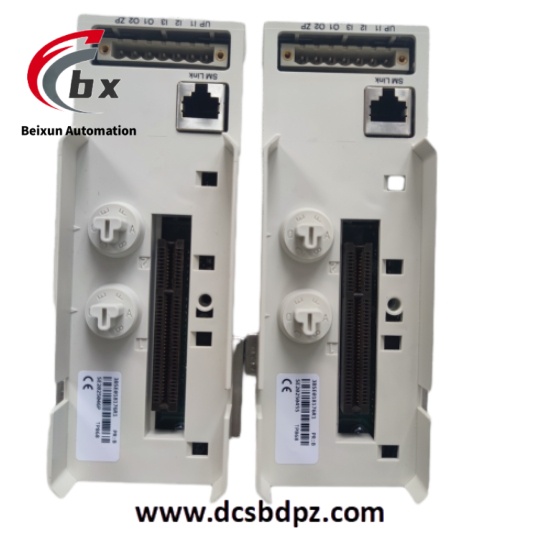

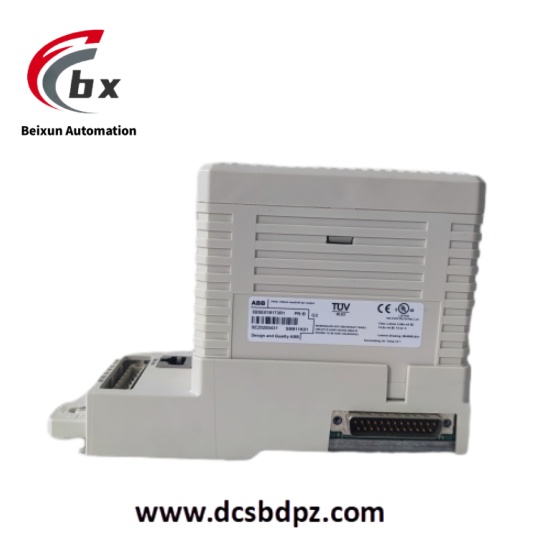

ABB SM811K01 3BSE018173R1 Digital input module
ABB SM811K01 3BSE018173R1 is a high-integrity safety module, which is a core component of ABB AC 800M series control systems. This module is designed to meet safety requirements in the field of industrial automation, capable of implementing safety-related control functions, and is suitable for safety-critical applications requiring SIL 3 (Safety Integrity Level 3) and PL e (Performance Level e). It works with AC 800M controllers, ensuring that the safe state is maintained even when the system fails through independent safety processors and redundant design, providing reliable safety guarantees for production processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SM811K01 3BSE018173R1 Digital input module
Specific Parameters
- Processor：32-bit safety processor, operating frequency 80MHz
- Memory：16MB RAM, 4MB Flash memory
- Power supply voltage：24V DC (±20%)
- Current consumption：Maximum 300mA (at 24V DC)
- Safety communication interface：1 safety Ethernet interface (100Mbps)
- I/O points：Supports up to 256 safety input/output points (via expansion modules)
- Operating temperature range：-10°C to +50°C
- Storage temperature range：-40°C to +70°C
- Relative humidity：5%-95% (non-condensing)
- Protection class：IP20 (must be installed in a control cabinet)
- Dimensions：59mm (width) × 185mm (height) × 127mm (depth)
- Weight：Approximately 650g
- Certification standards：Compliant with IEC 61508 (SIL 3), EN ISO 13849-1 (PL e), CE certification
Product Performance
- High safety integrity：Adopts an independent safety processor and dedicated safety kernel, completely isolated from standard control functions, ensuring that safety functions are not affected by non-safety code, meeting the strict requirements of SIL 3 and PL e.
- Redundant design：Supports dual-module redundant configuration. When the main module fails, the standby module can switch seamlessly, ensuring continuous operation of safety functions and improving system availability.
- Fast response capability：The processing time of safety instructions is ≤10ms, which can quickly respond to safety-related input signals, trigger protection actions in time, and reduce the possibility of accidents.
- Safety communication：Realizes encrypted communication with other safety devices through the safety Ethernet interface, preventing data tampering or interference, and ensuring the integrity and confidentiality of safety information transmission.
- Comprehensive diagnostic functions：Equipped with comprehensive self-diagnosis and external fault diagnosis capabilities, it can monitor module hardware status, communication links and safety input/output signals in real time, feedback fault information through indicators and communication interfaces, facilitating quick troubleshooting.
