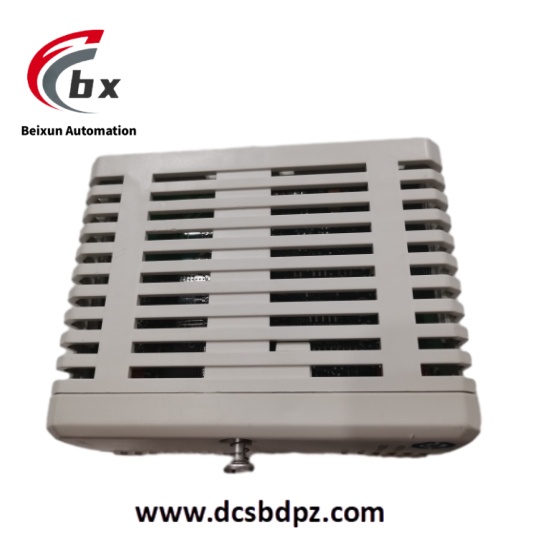

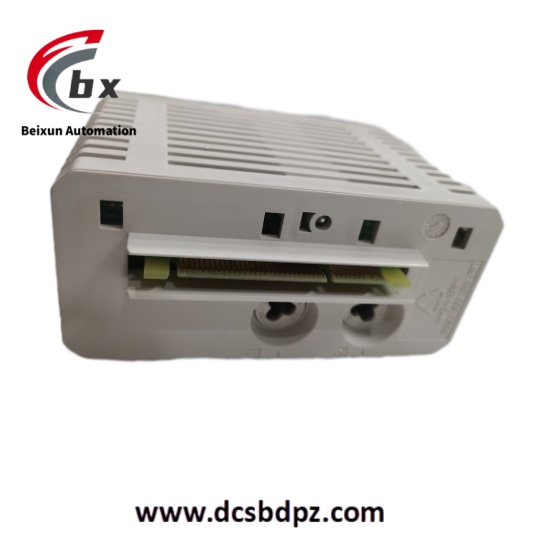

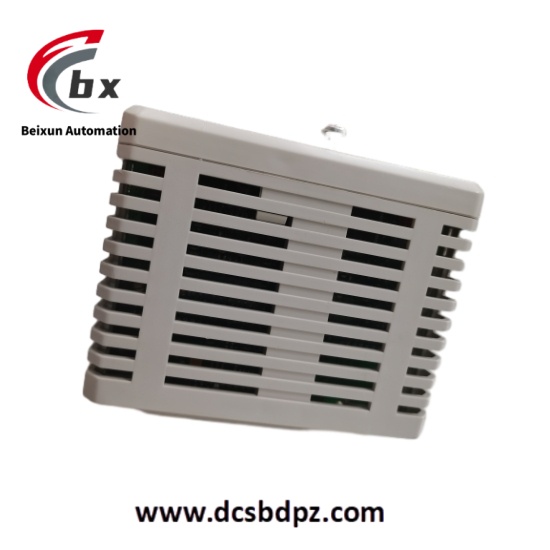

ABB SM810K01 3BSE030928R1 CPU module kit
ABB SM810K01 3BSE030928R1 is a high - integrity safety CPU module kit and a key component of ABB's AC 800M high - integrity controller family. The module uses an MPC862P microprocessor running at 96MHz, providing powerful data processing capabilities. Specifically designed for the industrial automation field, it can achieve precise control of production processes in process automation systems. The module has 32MB of SDRAM for program operation and data processing, 4MB of Flash PROM for firmware storage, and also provides supervision of the PM865 controller during SIL 1 - 2 operations to ensure the safe operation of the system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SM810K01 3BSE030928R1 CPU module kit
Specific Parameters
- Processor: MPC862P microprocessor, running at 96MHz
- Memory: 32MB SDRAM for program operation and data processing, 4MB Flash PROM for firmware storage
- Current consumption: From CEX – bus 24V DC, typical value 160mA (maximum 250mA)
- Power dissipation: Typical value 3.8W
- Weight: 700g (package with SM 810 and TP 855)
- Dimensions: Width 59mm×Height 185mm×Depth 127.5mm
- Electrical isolation: Available, isolation voltage 500V AC for 1 minute
- Rated insulation voltage: 50V
- Nominal voltage: 24V
- Voltage limits: -30V < UL < 5V for logic 0
- Nominal current: 12mA
- Input impedance: 1.8kΩ
- Process voltage range: 12 – 32V
- Maximum continuous load current: 0.5A
- Communication interfaces: Supports a variety of industrial communication protocols for data exchange with field devices and other automation systems
- Protection class: IP20, must be installed in a control cabinet
- Operating temperature range: -10°C to +50°C
- Storage temperature range: -40°C to +70°C
- Relative humidity: 5%-95% (non – condensing)
Product Performance
- Powerful processing ability: The MPC862P microprocessor running at 96MHz can quickly process data and execute complex algorithms, meeting the requirements for real – time performance and computational capacity in industrial automation.
- Safety supervision function: Can supervise the PM865 controller during SIL 1 – 2 operations. Through internal voltage monitoring and overvoltage protection mechanisms, it ensures the stable operation of the system and reduces the risk of failures.
- Hot – swap support: Supports hot – swap function. Module replacement can be carried out during system operation, reducing downtime due to maintenance and improving production efficiency.
- Redundancy design: Has redundancy function, enhancing system reliability. When a component fails, the redundant part can take over the work to ensure the continuous and stable operation of the system.
- Convenient communication: Supports a variety of industrial communication protocols, facilitating seamless data interaction with various field devices and other automation systems, and adapting to complex industrial network environments.
