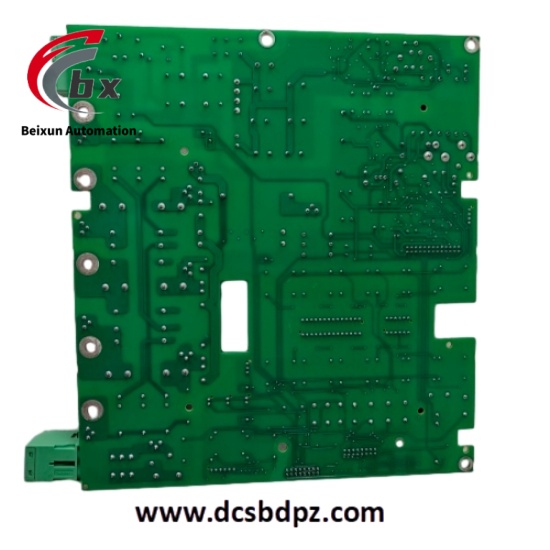

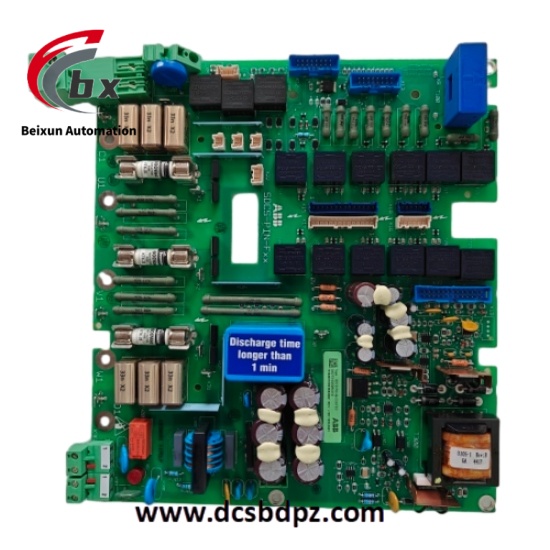

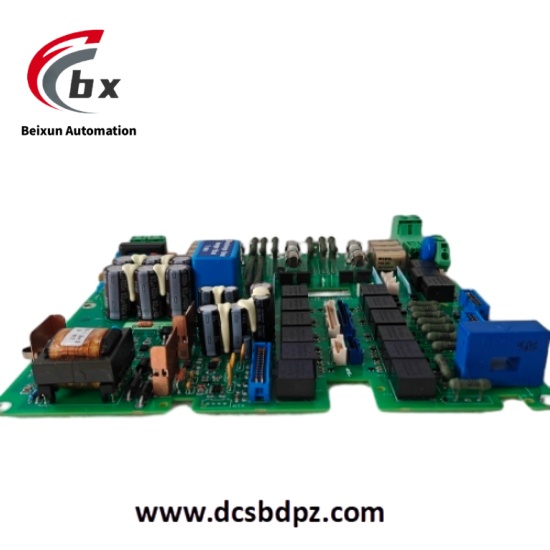

ABB SDCS-PIN-4B Digital input module
ABB SDCS-PIN-4B is a digital input module, a supporting component of ABB SDCS series drive systems. This module is mainly used to receive digital signals from external devices, convert them into signals recognizable by the drive system, and realize status monitoring of drive equipment and triggering of control logic. It has a compact design and can be directly installed on the control unit interface of SDCS series drive devices. It supports multi-channel signal input, adapts to common switch signal types in industrial environments, and provides stable and reliable connection for signal interaction between the drive system and external devices.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SDCS-PIN-4B Digital input module
Specific Parameters
- Number of input channels: 4 digital inputs
- Input signal type: Dry contact or wet contact (DC 24V)
- Input voltage range: DC 18-30V
- Input current: Maximum 10mA per channel
- Response time: ≤1ms
- Isolation method: Electrical isolation between channels, isolation voltage 2.5kV AC
- Operating temperature range: -10°C to +50°C
- Storage temperature range: -40°C to +70°C
- Relative humidity: 5%-95% (non-condensing)
- Dimensions: Length 80mm, width 60mm, height 30mm
- Weight: Approximately 80g
- Protection class: IP20 (must be installed in a control cabinet)
Product Performance
- Stable signal transmission: Adopts electrical isolation design, effectively resists electromagnetic interference, ensures accurate transmission of digital signals in industrial strong interference environments, and avoids false triggering or signal loss.
- Fast response: With a response time of ≤1ms, it can quickly capture state changes of external devices and feed back to the drive system in time, ensuring the real-time performance of control logic.
- Multi-channel independent work: The 4 input channels are independent of each other, and can simultaneously access signals from different external devices without mutual interference, improving the flexibility of signal acquisition.
- Convenient installation: Standardized interface design, can be directly connected to the control unit of SDCS series drive devices without additional wiring adapters, simplifying the installation process.
- Strong environmental adaptability: Wide temperature working range and high humidity tolerance, can adapt to harsh environments in industrial sites such as metallurgy and chemical industry, ensuring long-term stable operation.
