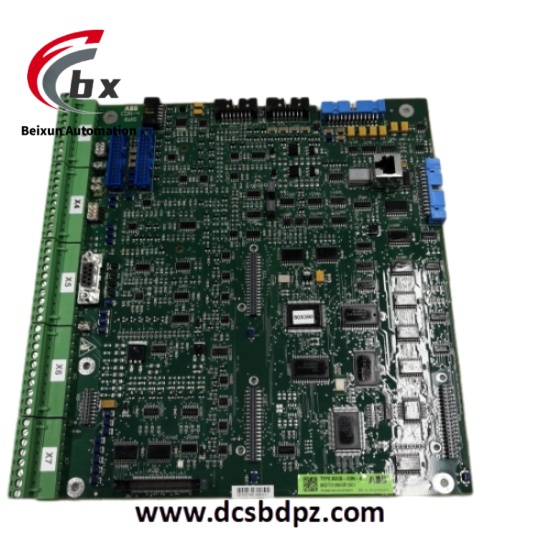

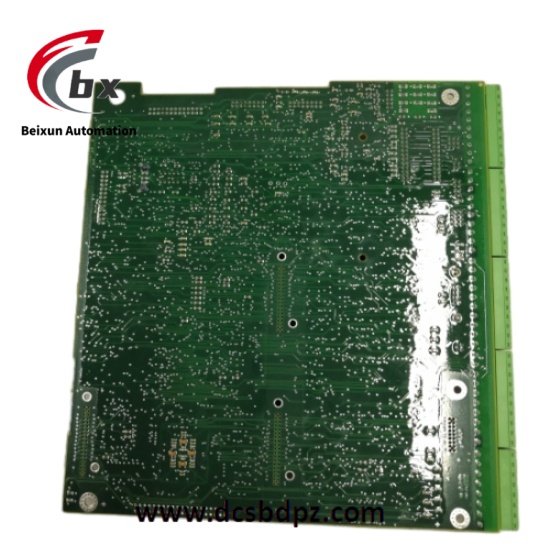

ABB SDCS-CON-4-COAT-ROHS Coating protection connector module
ABB SDCS-CON-4-COAT-ROHS is a control module for industrial automation systems, belonging to ABB's SDCS series products. The module has a COAT-ROHS protective coating, which can provide additional protection against environmental and operating conditions. It integrates DC motor frequency conversion trigger control, high-precision PWM signal generation, and multi-mode protection mechanisms. Designed for various harsh industrial environments, the module can be connected to sensors, actuators, upper computers and other devices through a variety of digital and analog interfaces, and provides a stable power supply to ensure its own stable operation.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB SDCS-CON-4-COAT-ROHS Coating protection connector module
Specific Parameters
- Input voltage range: 18 – 36V DC (compatible with 24V industrial power supply)
- Trigger current: Maximum 4A per channel, supporting multi-channel parallel expansion
- Control accuracy: 12-bit PWM resolution, frequency adjustment range 1kHz – 20kHz
- Response time: ≤50μs (typical value), supporting millisecond-level dynamic response
- Protection mechanism: Equipped with overcurrent/overvoltage/undervoltage/short-circuit quadruple protection, with fault self-diagnosis and reset functions
- Communication interface: Supports CANopen/Modbus RTU dual protocols, compatible with Industry 4.0 standards
- Environmental adaptability: Operating temperature – 40°C to + 85°C, humidity 5% – 95% non-condensing, IP67 protection class (optional)
- Certification standards: Passed RoHS environmental certification, CE certification, UL508 safety standard
Product Performance
- High-precision PWM signal generation: Adopts a 12-bit PWM resolution design, combined with a 20kHz high-frequency carrier, to achieve 0.1% speed regulation accuracy. The dynamic response time is <50μs. In scenarios such as rolling mills and paper machines that require rapid start-stop, it can effectively avoid motor overshoot or oscillation.
- Quadruple protection mechanism: The module is equipped with overcurrent (OCP), overvoltage (OVP), undervoltage (UVP), and short-circuit (SCP) quadruple protection circuits. Combined with the fault self-diagnosis function, it can real-time monitor 12 parameters such as IGBT module temperature and bus voltage, and respond quickly in case of abnormalities.
- Strong environmental adaptability: Passed the RoHS certification, and the content of harmful substances such as lead and mercury meets EU standards, which is suitable for export equipment. Its optional IP67 protection class can resist dust intrusion and 1-meter water immersion, and can operate stably in harsh environments such as mine hoists and offshore drilling platforms.
- Industrial-grade communication capability: Supports CANopen/Modbus RTU dual protocols and can be easily integrated with existing control networks to achieve seamless data exchange and remote monitoring.
