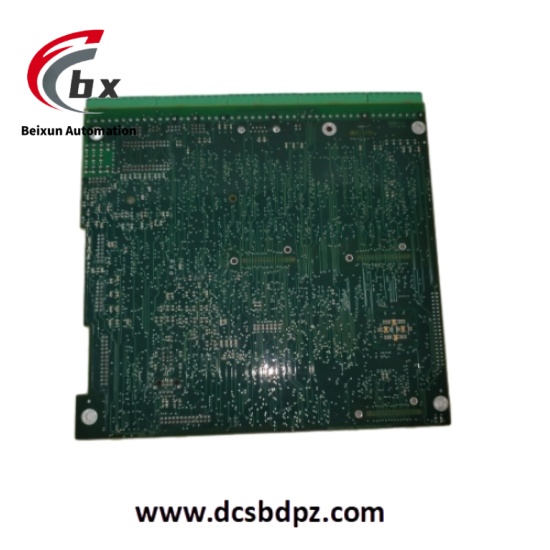

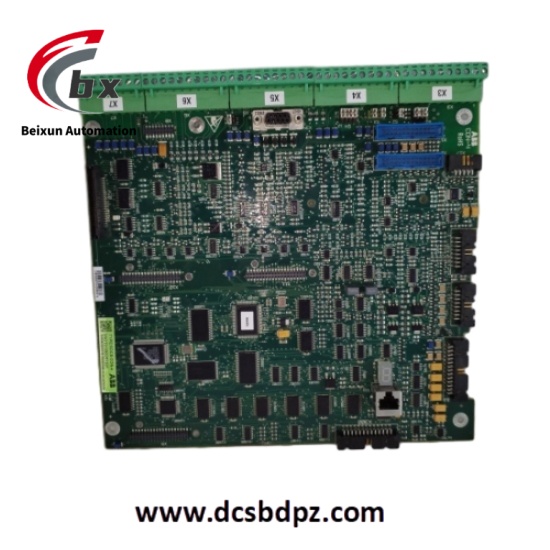

ABB SDCS-CON-4-COAT 3ADT313900R1001 Controller Expansion Module

ABB SDCS-CON-4-COAT 3ADT313900R1001 Controller Expansion Module

Specific Parameters

• Input voltage range: 18-36V DC (compatible with 24V industrial power supply)
• Trigger current: Maximum 4A per channel, supporting multi-channel parallel expansion
• Control accuracy: 12-bit PWM resolution, frequency adjustment range 1kHz-20kHz
• Response time: ≤50μs (typical value), supporting millisecond-level dynamic response
• Communication interfaces: CANopen/Modbus RTU dual protocols, compatible with Industry 4.0 standards
• Protection class: IP67 (optional), resistant to dust intrusion and 1-meter water immersion
• Operating temperature: -40°C to +85°C, humidity 5%-95% non-condensing
• Dimensions: 230mm×135mm×60mm
• Weight: 0.52kg
• Certification standards: RoHS environmental certification, CE certification, UL508 safety standard

Product Performance

• High-precision control: With 12-bit PWM resolution and 20kHz high-frequency carrier, it achieves 0.1% speed regulation accuracy, suitable for scenarios requiring rapid start-stop such as rolling mills and paper machines, reducing motor start-stop time by over 30%.
• Quadruple intelligent protection: Equipped with overcurrent/overvoltage/undervoltage/short-circuit quadruple protection circuits, combined with fault self-diagnosis function, it real-time monitors 12 parameters including IGBT module temperature and bus voltage. In case of abnormalities, it cuts off the output within 10μs and reports fault codes, reducing the annual failure rate of wind turbine pitch systems from 12% to 1.5%.
• Strong environmental adaptability: With IP67 protection class (optional) and wide temperature range of -40°C to +85°C, it shows a performance degradation of less than 0.5% after continuous operation in salt spray corrosion environment for 2 years, suitable for harsh working conditions such as offshore drilling platforms and mine hoists.
• Industrial-grade communication capability: Supports CANopen/Modbus RTU dual protocols and is compatible with PROFIBUS DP, RS-232 and other interfaces, enabling seamless integration with PLC and DCS systems with data transmission delay <1ms.
• Modular scalability: Adopts DIN rail installation method, supports multi-module parallel expansion, and can connect up to 64 control nodes in a single system, meeting the centralized control requirements of large production lines.
