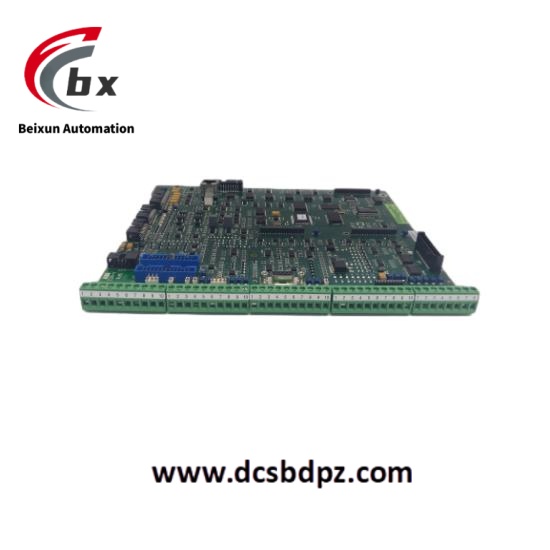

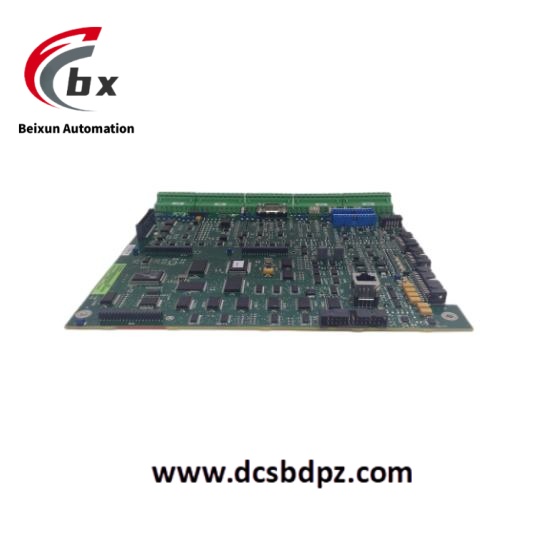

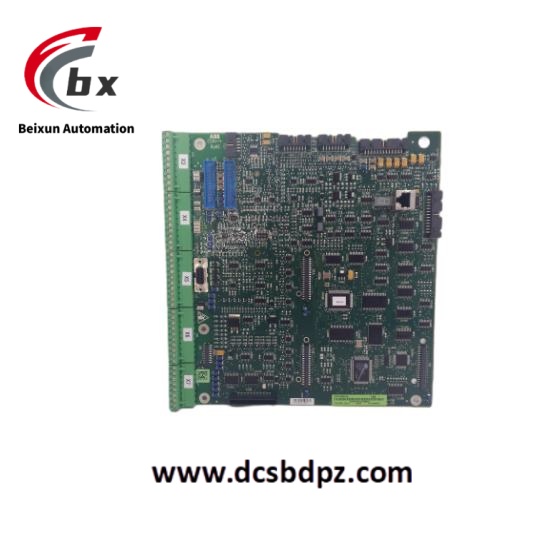

ABB SDCS-CON-4 3ADT313900R1501 DC drive control module

Processor: A high-performance 32-bit processor is adopted to ensure fast and efficient data processing and execution of complex control algorithms.

Power Supply Voltage: 24V DC, with an allowable voltage fluctuation range of ±15%, ensuring the stable operation of the module under certain voltage fluctuations.

Communication Interfaces: It is equipped with an Ethernet interface, supporting communication protocols such as Modbus TCP and Profinet for high-speed data transmission and remote monitoring. It also has an RS-485 interface, supporting the Modbus RTU protocol, facilitating communication with field devices.

Input and Output Channels: There are 8 digital input channels for receiving switch signals from external devices; 8 digital output channels for controlling the start-stop and other states of external devices; 4 analog input channels for collecting analog signals such as voltage and current; 2 analog output channels for outputting analog signals to control external devices.

Operating Temperature: The operating temperature range is -20°C – 60°C, adapting to various industrial environmental temperature conditions and ensuring normal operation in harsh environments.

Storage Temperature: The storage temperature range is -40°C – 85°C, ensuring the storage safety of the product when it is not in operation.

Dimensions: The product size is 200mm×150mm×50mm. The compact design is convenient for installation and layout in control cabinets.

High-Precision Control: With advanced control algorithms and high-performance processors, it can achieve high-precision control of the speed and torque of DC motors, with a control accuracy of up to ±0.1%. It meets the requirements of various high-precision industrial productions, effectively improving product quality and production efficiency.

Reliable Communication Capability: The rich communication interfaces and support for multiple communication protocols enable it to stably and efficiently interact with devices and systems of different brands and types. Remote monitoring and parameter adjustment can be realized through the Ethernet interface, facilitating centralized management and control by users. The RS-485 interface ensures reliable connection with field devices, guaranteeing the stability and reliability of overall system communication.

Wide-Temperature Adaptability: The operating temperature range of -20°C – 60°C allows the module to operate stably in harsh industrial environments such as high temperature and low temperature. Without the need for additional temperature control equipment, it reduces the cost of use and maintenance difficulty, and improves the applicability and reliability of the equipment.

Powerful Data Processing Ability: The 32-bit processor and efficient data processing algorithms enable it to quickly process a large amount of input data and output control instructions in a timely manner. Whether it is complex control logic or real-time data collection and analysis, it can handle them easily, ensuring the stable operation of the DC drive system under various working conditions.

High Reliability and Stability: During the design and manufacturing process, it strictly follows industrial standards and quality control processes, selects high-quality electronic components and materials, and has undergone a number of strict tests and verifications. The product has excellent anti-electromagnetic interference ability and good electrical isolation performance, which can effectively resist various interferences in the industrial environment, ensure long-term stable operation, reduce the probability of failure, and lower maintenance costs.
