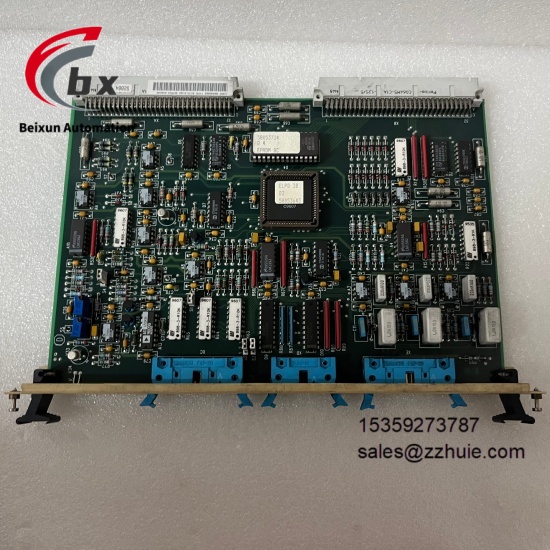

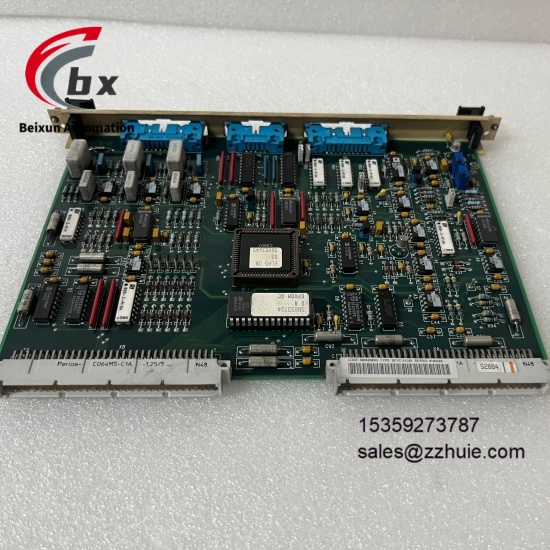

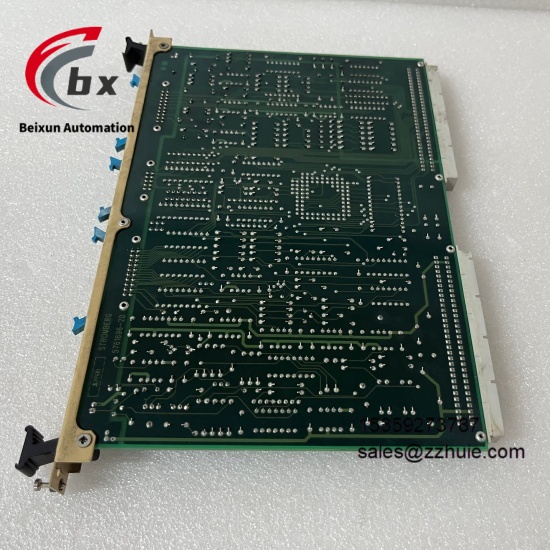

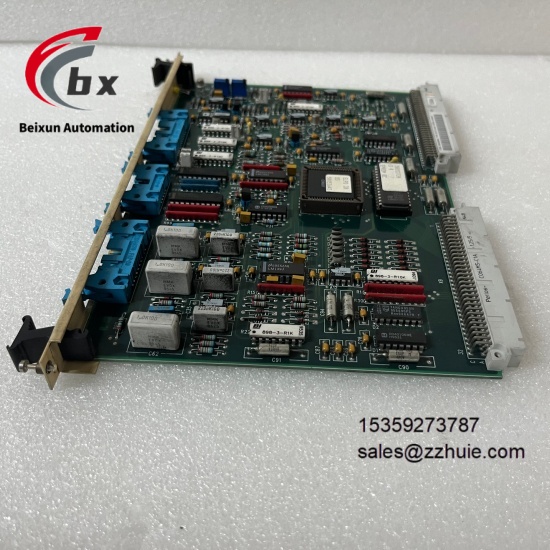

ABB SCYC51020 58052582G Pulse trigger and synchronization board
Specific Parameters
Brand ABB
Product Series SCYC Series
Product Type Industrial-grade Pulse Triggering and Synchronization Board
Model SCYC51020 58052582G
Input Voltage AC 220V/50Hz or DC 24V
Output Voltage DC 0-220V
Maximum Output Power 1.5KW
Control Precision 0.5%
Number of Output Pulse Channels 12 channels
Output Frequency 100Hz
Processing Speed 550μs
Communication Protocols Supports Modbus RTU, EtherCAT, PROFINET
Communication Rate 100Mbps
Operating Temperature Range -40℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Protection Level IP30
Dimensions 150mm×100mm×60mm
Weight 0.5kg
Installation Method Plug-in type Complies with standard industrial DIN rail installation specifications
Program Capacity 300
Data Capacity 200
I/O Points 24
Certification EMC Certification of Electric Power Research Institute
Product Performance
The output pulses have extremely high symmetry and stability, not affected by ambient temperature, and no calibration or debugging is required during use
Supports PWM control mode to achieve high-precision power output with control precision up to 0.5%
Strong wide-temperature adaptability, capable of stable operation in harsh temperature environments from -40℃ to 70℃
Excellent anti-interference performance, passed EMC certification, ensuring stable signal transmission in complex industrial environments
Modular design, convenient installation and maintenance, simplifying fault location and replacement processes
Compatible with multiple industrial communication protocols, enabling seamless connection with equipment from different manufacturers and strong integration
Dual network interfaces support linear, star or ring network topologies, with fast redundancy recovery capability
On-site debugging is convenient, and basic debugging work can be completed without an oscilloscope
Equipped with reverse connection protection and overcurrent protection functions to improve use safety
Processing speed up to 550μs, which can quickly respond to control needs and ensure the timeliness of system control
