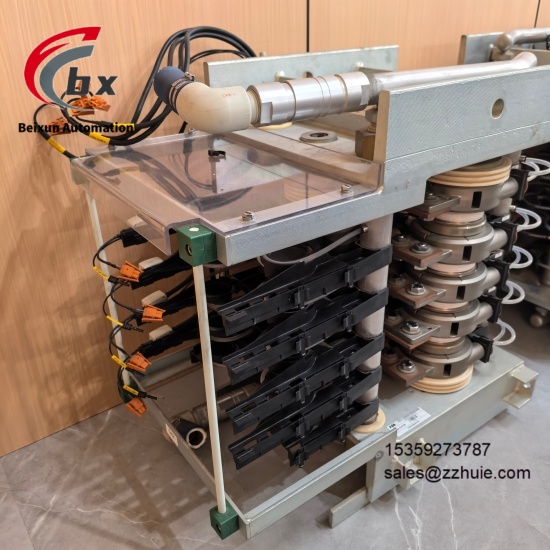

ABB S-097H 3BHB009885R0052 High voltage phase module (rack)

Specific Parameters

Electrical Parameters

Rated Insulation Voltage: 1000V AC, suitable for medium and high-voltage power drive systemsInput Voltage: 24V DC ±10%, compatible with industrial standard power supplyPhase Measurement Accuracy: ±0.1°, ensuring precise phase regulationOutput Current: 12A, meeting the requirements of high-power energy transmissionVoltage Withstand Strength: ≥3000V AC (1 minute no breakdown) between contacts, and between contacts and housingInsulation Resistance: ≥1000MΩ (measured with 500V DC megohmmeter, normal temperature and state)Protection Functions: Integrates overvoltage, overcurrent and short-circuit protection, fault response time ≤2msCommunication Protocols: Supports Modbus and Profibus industrial communication protocols for seamless system integrationElectrical Life: ≥1 million cycle operations, adapting to long-term continuous operation

Mechanical Parameters

Overall Dimensions: 125mm (H) × 75mm (W) × 115mm (D), compact modular designWeight: Approximately 1.1kg, lightweight structure facilitates system integration and installationMounting Method: Rail mounting or panel fixing, adapting to standard control cabinet layoutHousing Material: Flame-retardant reinforced engineering plastic (UL94 V-0 grade), impact-resistant and chemical corrosion-resistantConnection Method: Screw-type terminal blocks, compatible with 1.0-4.0mm² wire gauge, wiring torque 1.2-1.8N·mModule Architecture: Modular design, supporting hot-swapping and redundant configuration for easy maintenance and replacement

Environmental Parameters

Operating Temperature: -25℃ to +70℃, covering extreme high and low temperature industrial working conditionsStorage Temperature: -40℃ to +85℃, meeting storage and transportation environment requirementsRelative Humidity: 5% to 95% (non-condensing), adapting to humid industrial scenariosProtection Rating: IP20, suitable for installation and use in control cabinetsVibration Resistance: 10-500Hz frequency range, 2g acceleration (sine wave), no structural looseningEMC Compliance: Meets EN 55014-1 (emission limits) and EN 55014-2 (immunity) standardsCertifications: CE (EMC/Low Voltage Directive), RoHS 2.0 compliant, meeting IEC 60947-5-1 standard

Product Performance

Precise phase control: ±0.1° measurement accuracy combined with thyristor technology, realizing efficient energy conversion and low harmonic outputStrong high-voltage adaptability: 1000V AC rated insulation voltage and 3000V AC voltage withstand strength, stably adapting to medium and high-voltage scenariosFast response speed: Fault response time ≤2ms, triple protection mechanism fully ensuring system operation safetyStable environmental adaptability: Normal startup at -25℃ low temperature, no derated operation at +70℃ high temperature, withstanding harsh working conditionsExcellent integration compatibility: Supports mainstream industrial communication protocols, seamlessly collaborating with ACS6000 series invertersEfficient maintenance: Modular architecture and hot-swapping design, disassembly and replacement without interrupting the system, improving maintenance efficiency
