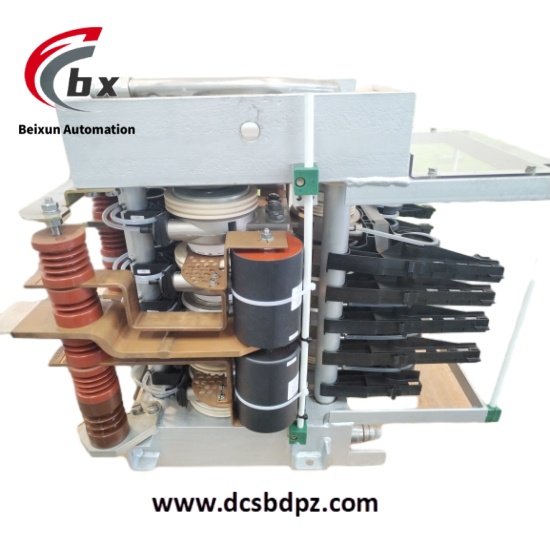

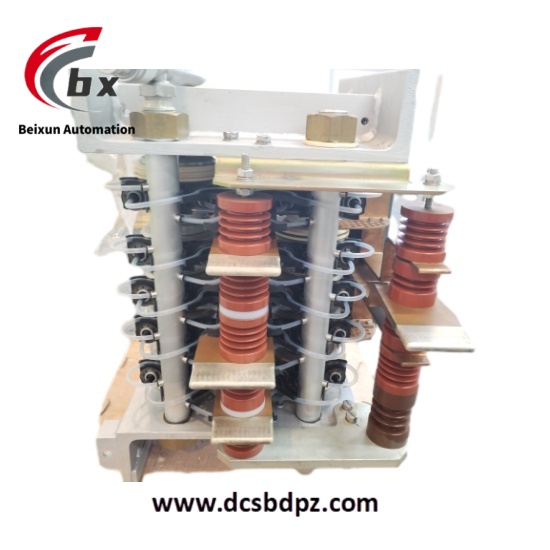

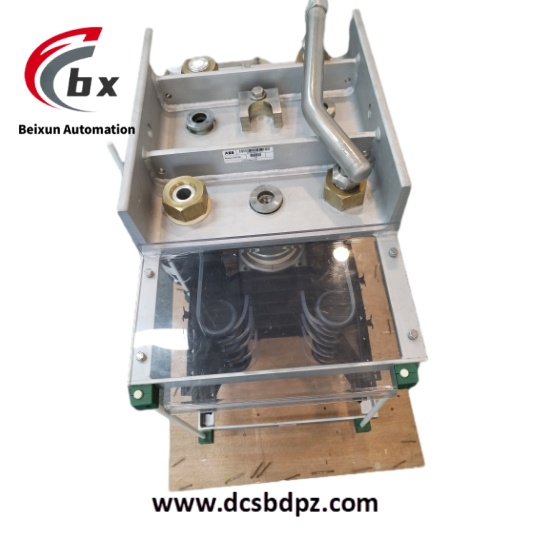

ABB S-073N 3BHB009884R0021 High voltage inverter phase module
ABB S - 073N 3BHB009884R0021 is a power electronics device using Modular Multilevel Converter (MMC) technology. It has multiple functions. It can be used as a high - voltage inverter module to achieve efficient power conversion, and also as a phase module to accurately control the phase, ensuring the stable operation of the power system. This product has undergone strict quality control and durability tests, and adopts a modular design, which is convenient for installation, maintenance and subsequent upgrade and expansion, and can adapt to different production requirements.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB S-073N 3BHB009884R0021 High voltage inverter phase module
Specific Parameters
- Operating voltage: 240VDC
- Output frequency: 60Hz
- Rated power: 7.5 kilowatts
- Rated voltage: 380 volts
- Rated current: 15.4 amperes
- Rated speed: 2930 revolutions per minute
- Protection class: IP55
- Dimensions: 46mm (length) × 42mm (width) × 25mm (height)
- Operating frequency: 300KHz – 1MHz
- Thickness: Less than 20mm
- Weight: Less than 200g
- Power density: 5 – 10W/cubic centimeter
- Applicable power grid voltage range: AC 150V – 280V
- Temperature adaptation range: – 55°C – + 100°C
Product Performance
- Efficient power conversion: The design aims to achieve efficient power conversion, greatly reducing energy waste and significantly improving the operating efficiency of the overall equipment.
- High reliability: Having passed strict quality control and durability tests, it can operate stably in a variety of environments, effectively reducing the risk of equipment failure.
- Precise phase control: It has an accurate phase control function. For application scenarios with high requirements for phase accuracy, it can effectively ensure equipment performance and product quality.
- Convenient maintenance and expansion: The modular design makes installation and maintenance operations simple, and is also convenient for upgrade and expansion, and can flexibly adapt to changing production requirements.
- Good environmental adaptability: With a wide temperature adaptation range and a fully – sealed package with three – proof functions (waterproof, dustproof, and impact – resistant), it can work stably in complex environments.
- Good electromagnetic compatibility: Generally, zero – voltage switching or zero – current switching technology is used, and it has good electromagnetic compatibility, reducing interference to other devices.
