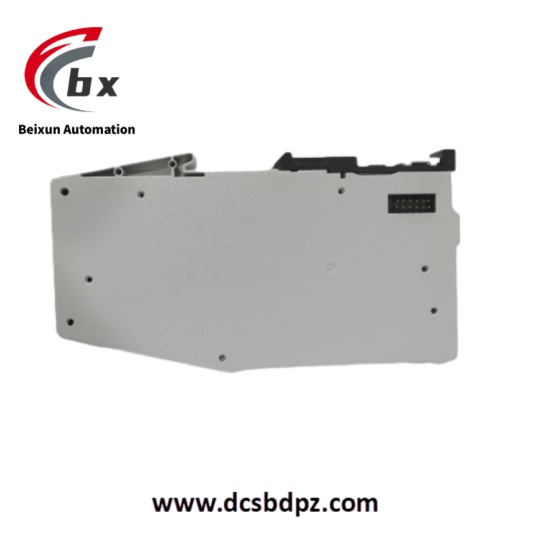

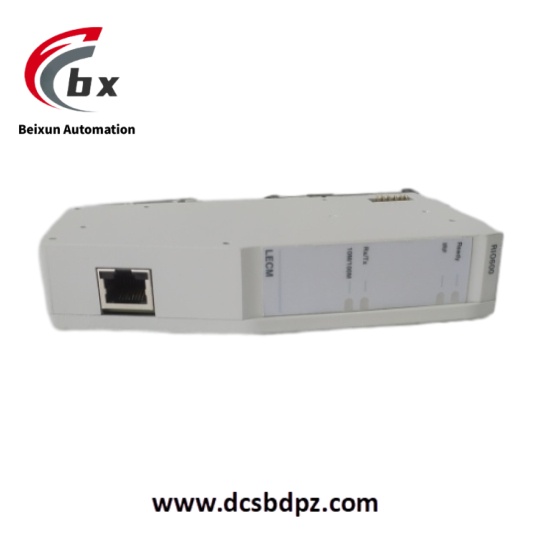

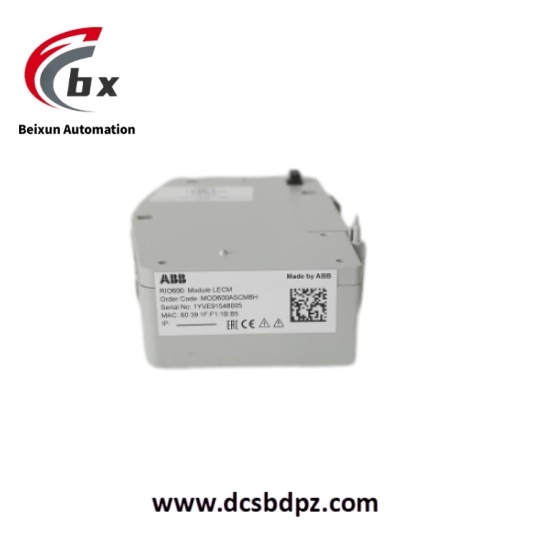

ABB RIO600 MOD600ASCM8H Remote I/O unit and control module merging unit

ABB RIO600 MOD600ASCM8H Remote I/O unit and control module merging unit

Specific Parameters​

• Rated voltage: 110 – 250V DC​
• Operating voltage range: ±20% of the rated voltage​
• Current drain: 1.8 – 2.6mA​
• Power consumption per input channel: 200 – 750mW​
• Threshold voltage: 78V DC​
• Reaction time: 0.3ms + 1ms to 4.0s (filtering time)​
• Communication protocols: Supports IEC 61850 and Modbus TCP​
• Weight: Approximately 2kg​

Product Performance​

• Flexible I/O expansion: Can significantly increase the number of digital and analog I/O channels, meeting the need for more detailed monitoring and control of electrical systems. It is convenient for flexible I/O configuration to adapt to different application scenarios.​
• Efficient communication: With IEC 61850 and Modbus TCP communication protocols, it realizes fast real – time communication between protection and control relays and physical inputs/outputs, ensuring timely and accurate data transmission.​
• Enhanced processing power: The MOD600ASCM8H improves the overall processing performance, enabling the device to handle complex tasks and enhancing the operating efficiency and reliability of the system.​
• Optimized fault management: Equipped with the Fault Passage Indication (FPI) function, it can provide accurate current and voltage measurements. Based on the advanced Multi – Frequency Admittance (MFA) technology, it realizes high – sensitivity earth fault indication, effectively improving the fault management ability.​
• Convenient human – machine interaction: The web – browser – based human – machine interface (WebHMI) facilitates access to substation devices and processes through a browser, realizing standard substation monitoring functions.​
